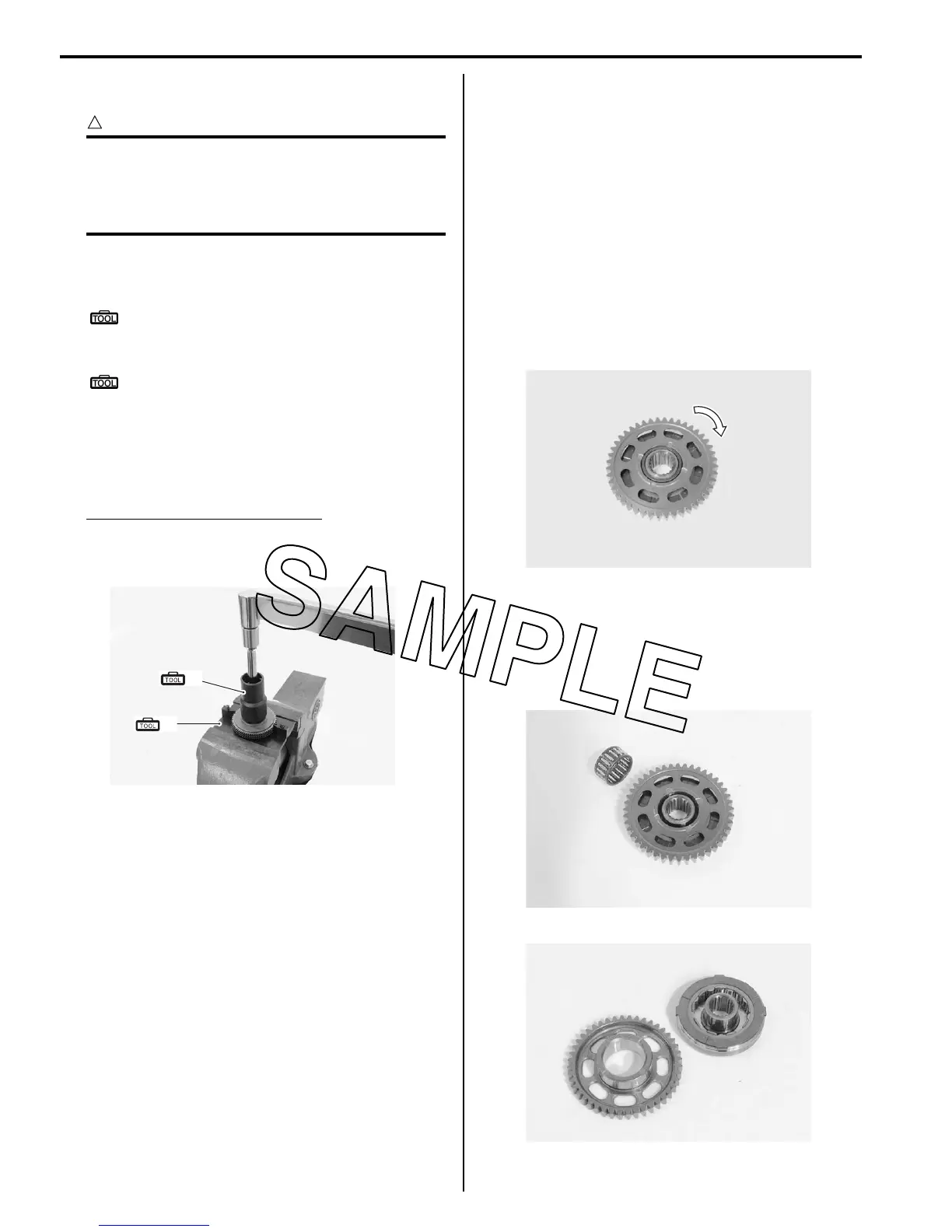

1I-12 Starting System:
Starter Torque Limiter Inspection
B823H11906012
CAUTION
!
• Do not attempt to disassemble the starter
torque limiter.
• The starter torque limiter is available only
as an assembly part.
1) Hold the starter torque limiter with the special tools
and vise.
Special tool
(A): 09930–73130 (Starter torque limiter
holder)
Special tool
(B): 09930–73140 (Starter torque limiter
socket)
2) Turn the starter torque limiter with a torque wrench
and check the slip torque. If the slip torque is not
within the specification, replace the starter torque
limiter with a new one.
Starter torque limiter slip torque
Standard: 33.3 – 52.0 Nm (3.3 – 5.2 kgf-m, 24.0 –
37.5 lb-ft)
Starter Clutch Inspection
B823H11906010
Refer to “Starter Torque Limiter / Starter Clutch Removal
and Installation (Page 1I-10)”.
Starter Clutch
1) Install the starter driven gear onto the starter clutch.
2) Turn the starter driven gear by hand to inspect the
starter clutch for a smooth movement. The gear
turns in one direction only. If a large resistance is felt
for rotation, inspect the starter clutch or the starter
clutch contacting surface on the starter driven gear
for wear or damage.
If they are found to be damaged, replace them with
new ones.
Starter Clutch Bearing and Starter Driven Gear
Inspect the starter clutch bearing and starter clutch
contacting surface on the starter driven gear for wear
and damage. If they are found to be damaged, replace
them with new ones.
(A)
(B)
I823H1190028-01
I823H1190029-01
I823H1190030-01
I823H1190031-03
To Next Page
