Drive Chain / Drive Train / Drive Shaft: 3A-1
Driveline / Axle
Drive Chain / Drive Train / Drive Shaft
Diagnostic Information and Procedures
Drive Chain and Sprocket Symptom Diagnosis
B823H13104001
Repair Instructions

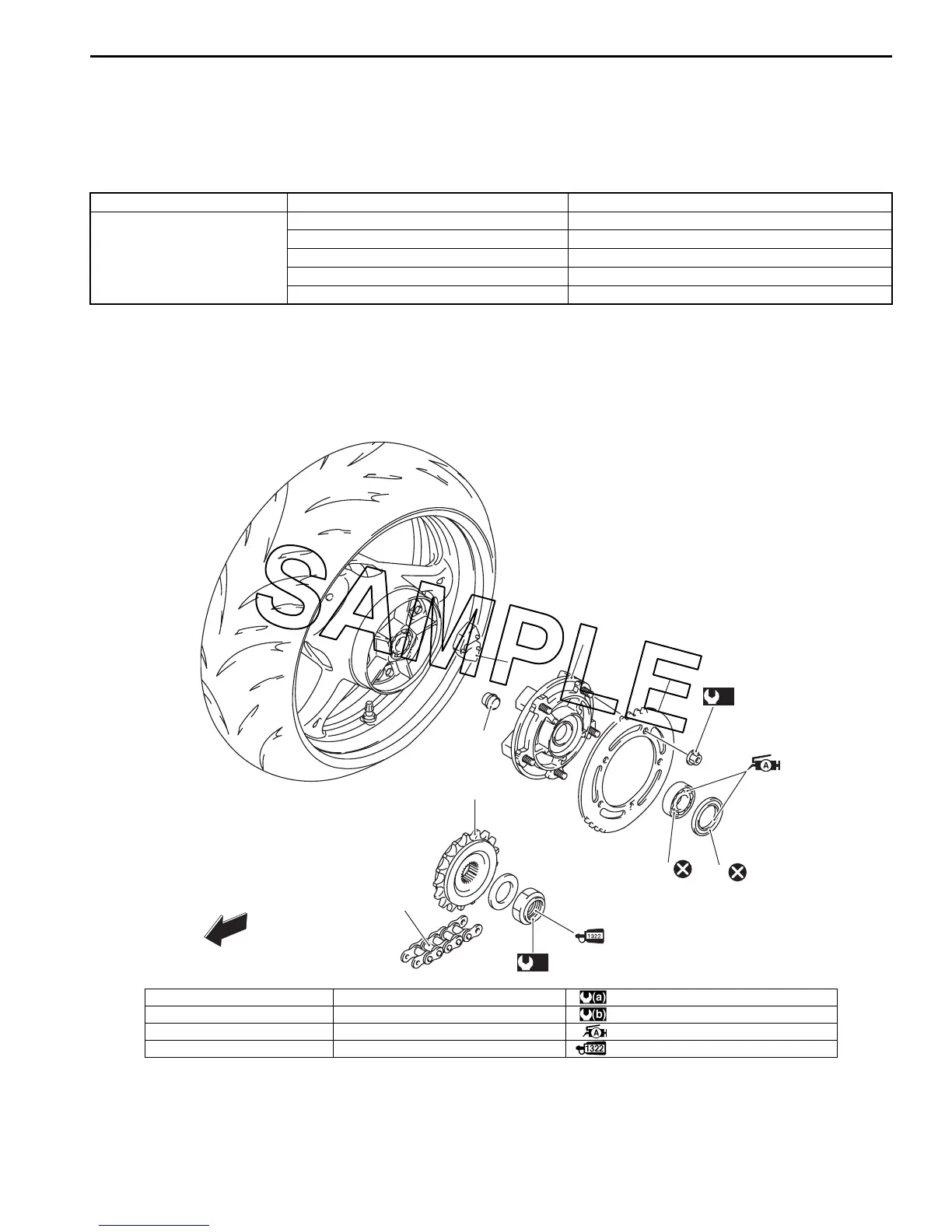

Drive Chain Related Components
B823H13106001
Condition Possible cause Correction / Reference Item
Noisy Drive Chain Worn sprocket. Replace.
Worn drive chain. Replace.
Stretched drive chain. Replace.
Too large drive chain slack. Adjust.
Drive chain out of adjustment. Adjust.
7
1
2
(a)
3
4
(b)
5
6
8
FWD
I823H1310025-01
1. Engine sprocket 5. Rear sprocket : 145 Nm (14.5 kgf-m, 105.0 lb-ft)
2. Drive chain 6. Sprocket mounting drum : 60 Nm (6.0 kgf-m, 43.5 lb-ft)
3. Dust seal 7. Retainer : Apply grease.
4. Bearing 8. Wheel damper : Apply thread lock to the thread part.
To Next Page
