3A-2 Drive Chain / Drive Train / Drive Shaft:
Engine Sprocket Removal and Installation
B823H13106002

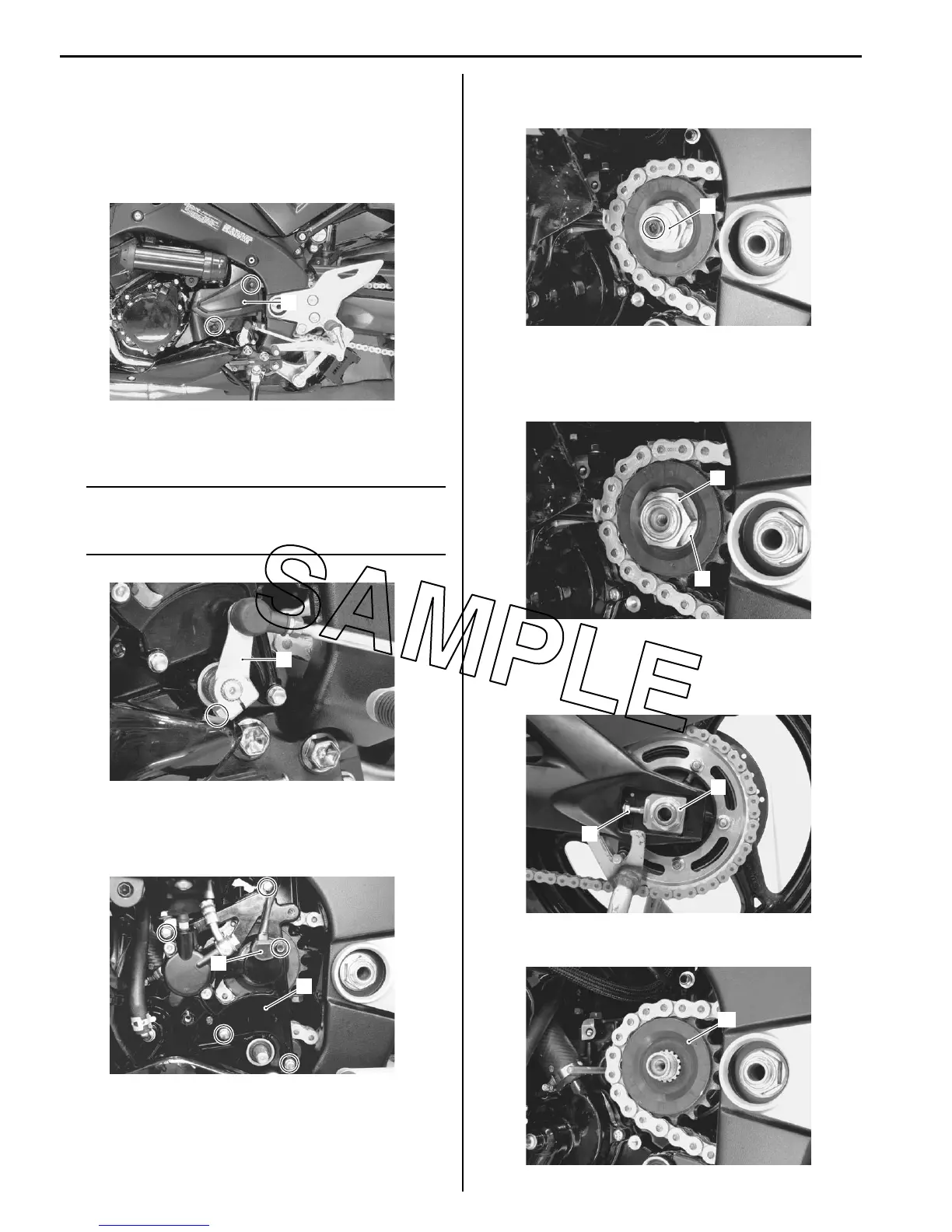

Removal
1) Support the motorcycle with a jack or wooden block.
2) Remove the engine sprocket outer cover (1).
3) Remove the gearshift link arm (2) by removing the
bolt.
NOTE
Mark the gearshift shaft head at which the
gearshift link arm slit set for correct
reinstallation.
4) Remove the speed sensor (3).
5) Remove the engine sprocket inner cover (4) along
with the clutch release cylinder.
6) Remove the speed sensor rotor (5) by removing its
bolt while depressing the rear brake pedal.
7) Remove the engine sprocket nut (6) while
depressing the rear brake pedal.
8) Remove the washer (7).
9) Loosen the rear axle nut (8).
10) Loosen the chain adjusters (9) to provide additional
chain slack.
11) Remove the engine sprocket (10).
1
I823H1310001-01
2
I823H1310002-01
3
4
I823H1310003-01
5
I823H1310004-02
7
6
I823H1310005-02
8
9
I823H1310006-01
10
I823H1310007-01
