Rear Suspension: 2C-1
Suspension
Rear Suspension
Repair Instructions

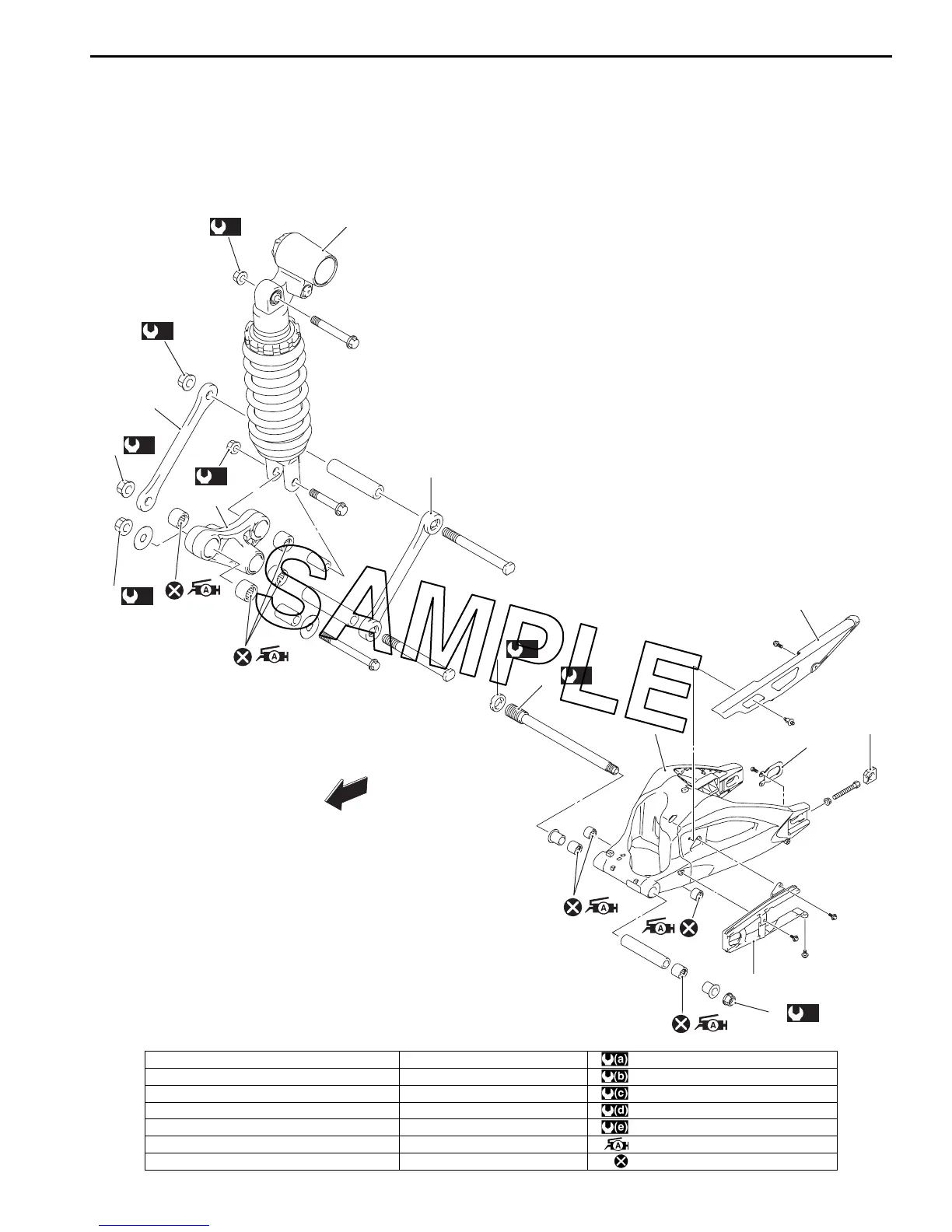

Rear Suspension Components
B823H12306001
(c)
7
(d)
8
10
11
12
13
14
(e)
9
1
(a)
2
3
(b)
4
(b)
6
5
3
(b)
4
FWD
FWD
(a)
2
I823H1230049-03
1. Rear shock absorber 8. Swingarm pivot shaft : 50 Nm (5.0 kgf-m, 36.0 lb-ft)
2. Rear shock absorber mounting nut 9. Swingarm pivot nut : 78 Nm (7.8 kgf-m, 56.5 lb-ft)
3. Cushion rod 10. Swingarm : 90 Nm (9.0 kgf-m, 65.0 lb-ft)
4. Cushion rod mounting nut 11. Chain case : 15 Nm (1.5 kgf-m, 11.0 lb-ft)
5. Cushion lever 12. Plate : 100 Nm (10.0 kgf-m, 72.5 lb-ft)
6. Cushion lever mounting nut 13. Chain adjuster : Apply grease to the bearing.
7. Swingarm pivot lock-nut 14. Chain buffer : Do not reuse.
