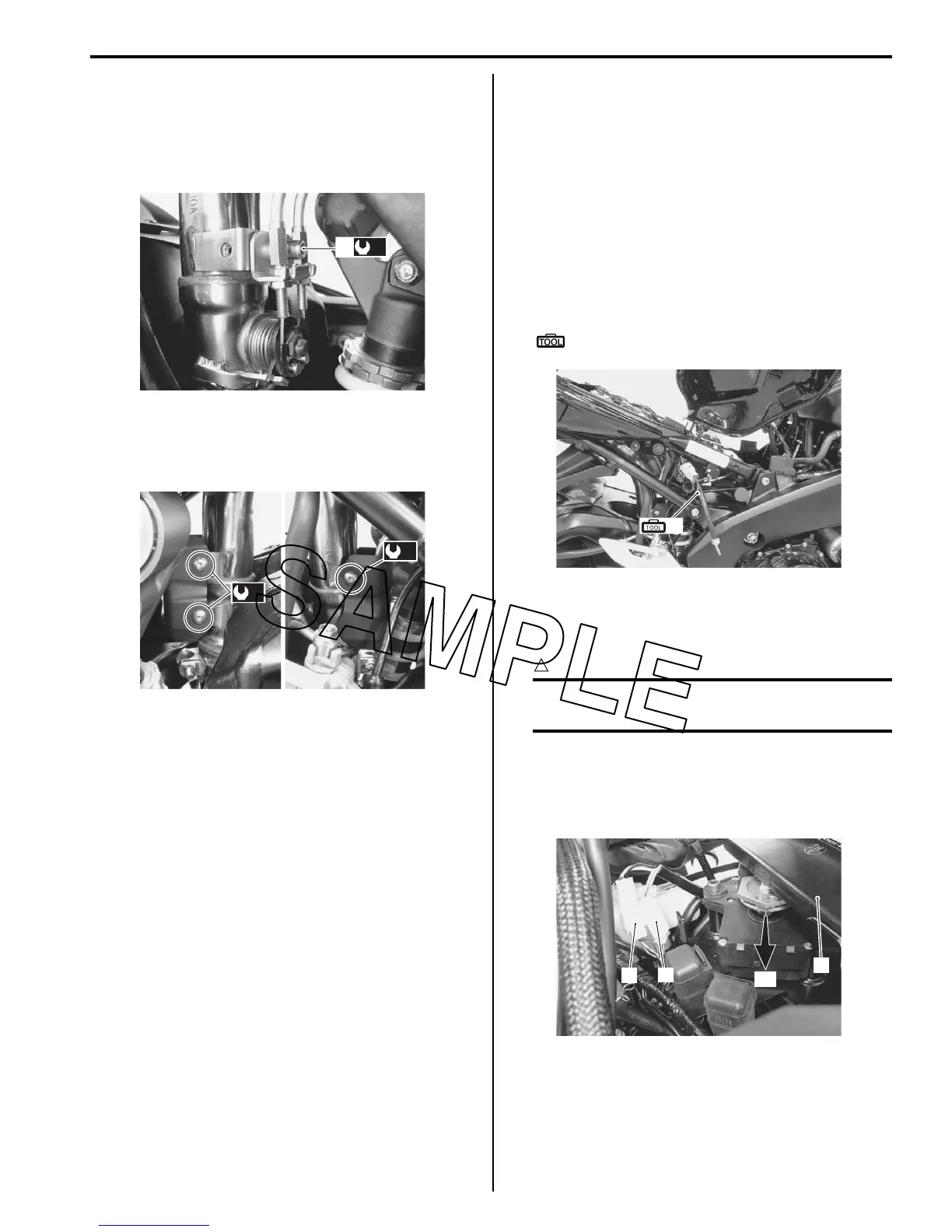

Exhaust System: 1K-7
6) Reinstall the bracket and cables and tighten the nut
(7) to the specified torque.
Tightening torque
EXCV cable bracket nut (a): 10 N·m (1.0 kgf-m,
7.0 lb-ft)
7) Install the EXCV cover.
Tightening torque
EXCV cover bolt (b): 10 N·m (1.0 kgf-m, 7.0 lb-ft)
8) Install the removed exterior parts.
EXCVA Removal and Installation
B823H11B06009
Removal
1) Turn the ignition switch OFF.
2) Lift and support the fuel tank. Refer to “Fuel Tank
Removal and Installation in Section 1G (Page 1G-
10)”.
3) Connect the special tool (Mode select switch) to the
dealer mode coupler. Refer to “Self-Diagnostic
Procedures in Section 1A (Page 1A-12)”.
4) After turning the mode select switch ON, turn the
ignition switch ON.
Special tool
(A): 09930–82720 (Mode select switch)
5) Check that the cable slots of the EXCVA pulley
comes to the middle (Adjustment position) “A”.
6) Turn the ignition switch OFF.
CAUTION
!
Before removing the EXCVA, be sure to set
the EXCVA pulley to the adjustment position.
7) Disconnect the EXCVA position sensor coupler (1)
and motor coupler (2).
8) Remove the ECM (3). Refer to “ECM Removal and
Installation in Section 1C (Page 1C-2)”.
(a)
7
I823H11B0010-02
(b)
(b)
I823H11B0011-03
(A)
I823H11B0012-01
“A”
3
1
2
I823H11B0013-01
To Next Page
