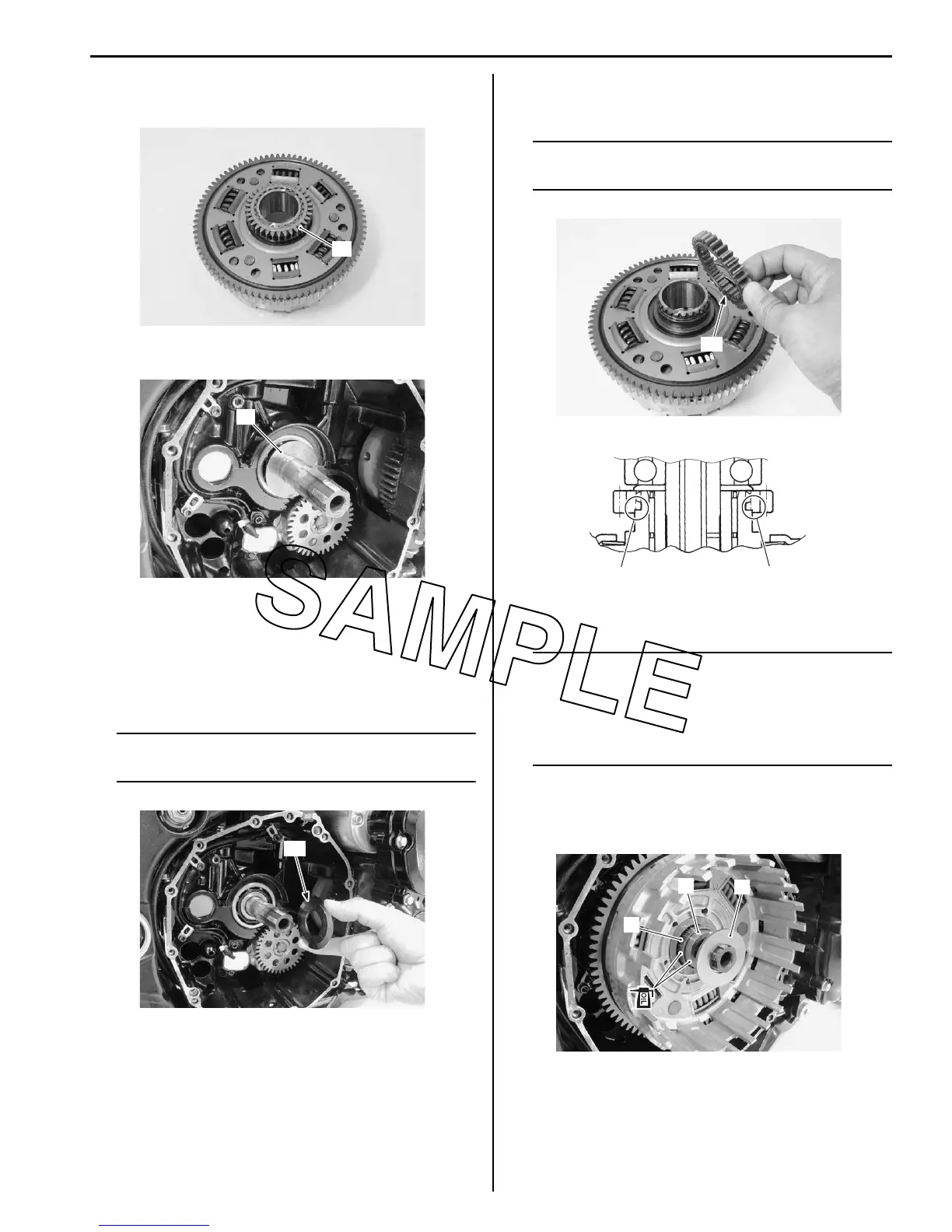

Clutch: 5C-17
16) Remove the oil pump drive gear (20) from the
primary driven gear assembly.
17) Remove the thrust washer (21).
Clutch Installation
B823H15306017
Installation is in the reverse order of removal. Pay
attention to the following points:
• Install the thrust washer onto the countershaft.
NOTE
The chamfer side “A” of the thrust washer
faces crankcase side.
• Install the oil pump drive gear to the primary driven
gear assembly.
NOTE
The off-set side “B” of the oil pump drive
gear faces the primary driven gear side.
• Install the primary driven gear assembly.
NOTE
• If it is difficult to install the primary driven
gear, rotate the crankshaft.
• Be sure to engage the oil pump drive and
driven gears, primary drive and driven
gears.
• Install the bearing (1) and spacer (2) and apply engine
oil to them.
• Install the trust washer (3).
20
I823H1530034-01
21
I823H1530035-01
“A”
I823H1530036-01
“B”
I823H1530037-01
“B”
“B”
I823H1530038-02
1
2
3
I823H1530039-02
