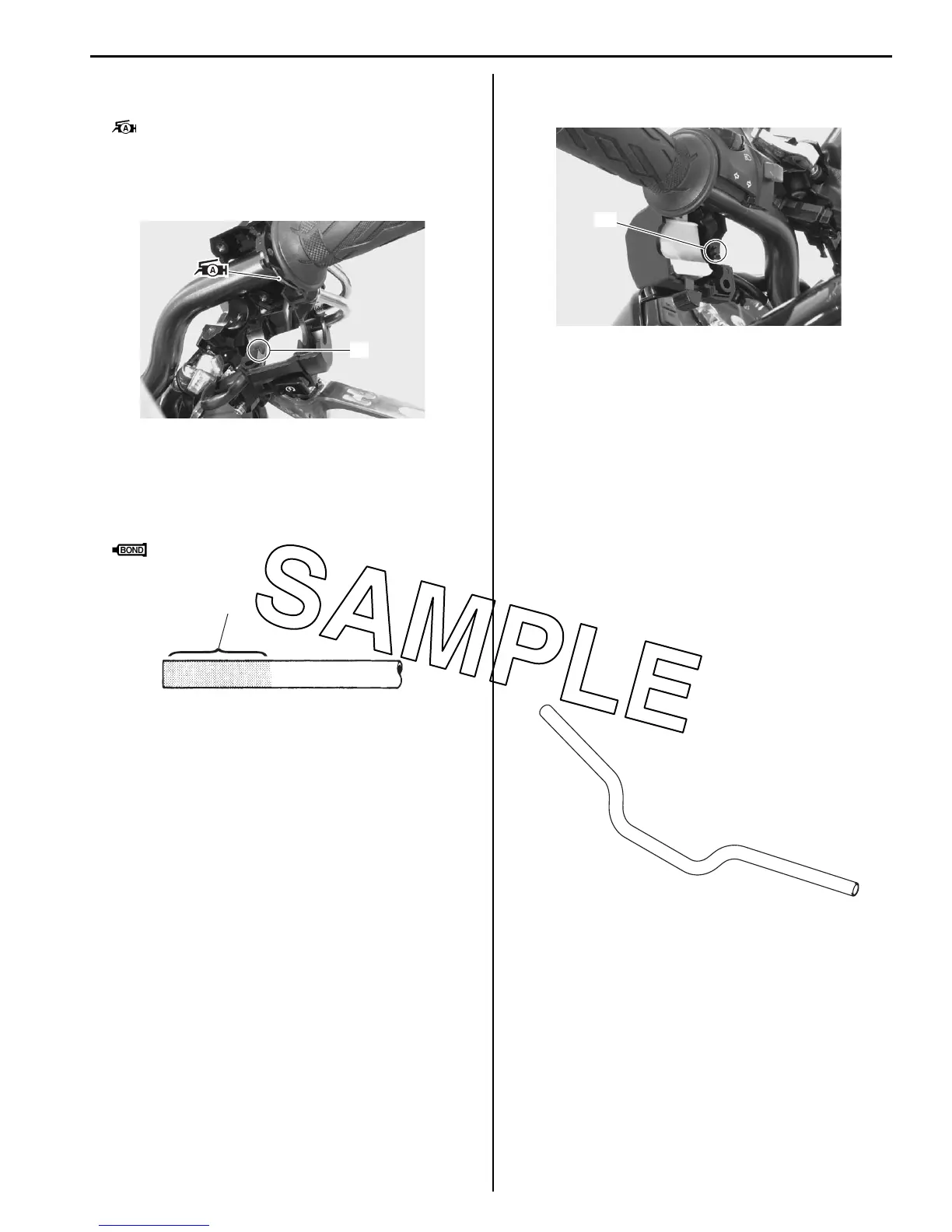

Steering / Handlebar: 6B-4
• Apply grease to the end of the throttle cables and
cable pulley.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Insert the projection “B” of the right handlebar switch
box into the hole of the handlebars.
• Install the front brake master cylinder. Refer to “Front
Brake Master Cylinder Assembly Removal and
Installation in Section 4A (Page 4A-10)”.
• Apply a handle grip bond “C” onto the left handlebar
before installing the handlebar grip.
: Handle grip bond (Handle Grip Bond
(commercially available))
• Insert the projection “D” of the left handlebar switch
box into the hole of the handlebars.
• Install the clutch master cylinder. Refer to “Clutch
Master Cylinder Assembly Removal and Installation in
Section 5C (Page 5C-8)”.
• After installing the steering, the following adjustments
are required before driving.
– Cable routing (Refer to “Throttle Cable Routing
Diagram in Section 1D (Page 1D-2)”.)
– Throttle cable play (Refer to “Throttle Cable Play
Inspection and Adjustment in Section 0B (Page 0B-
12)”.)
Handlebars Inspection
B823H16206004
Refer to “Handlebar Removal and Installation (Page 6B-
3)”.
Inspect the handlebars for distortion and damage.
If any defect is found, replace the handlebars with a new
one.
“B”
I823H1620006-02
“C”
I823H1620004-02
“D”
I823H1620007-01
I823H1620032-01
