2B-1 Front Suspension:
Suspension
Front Suspension
Repair Instructions

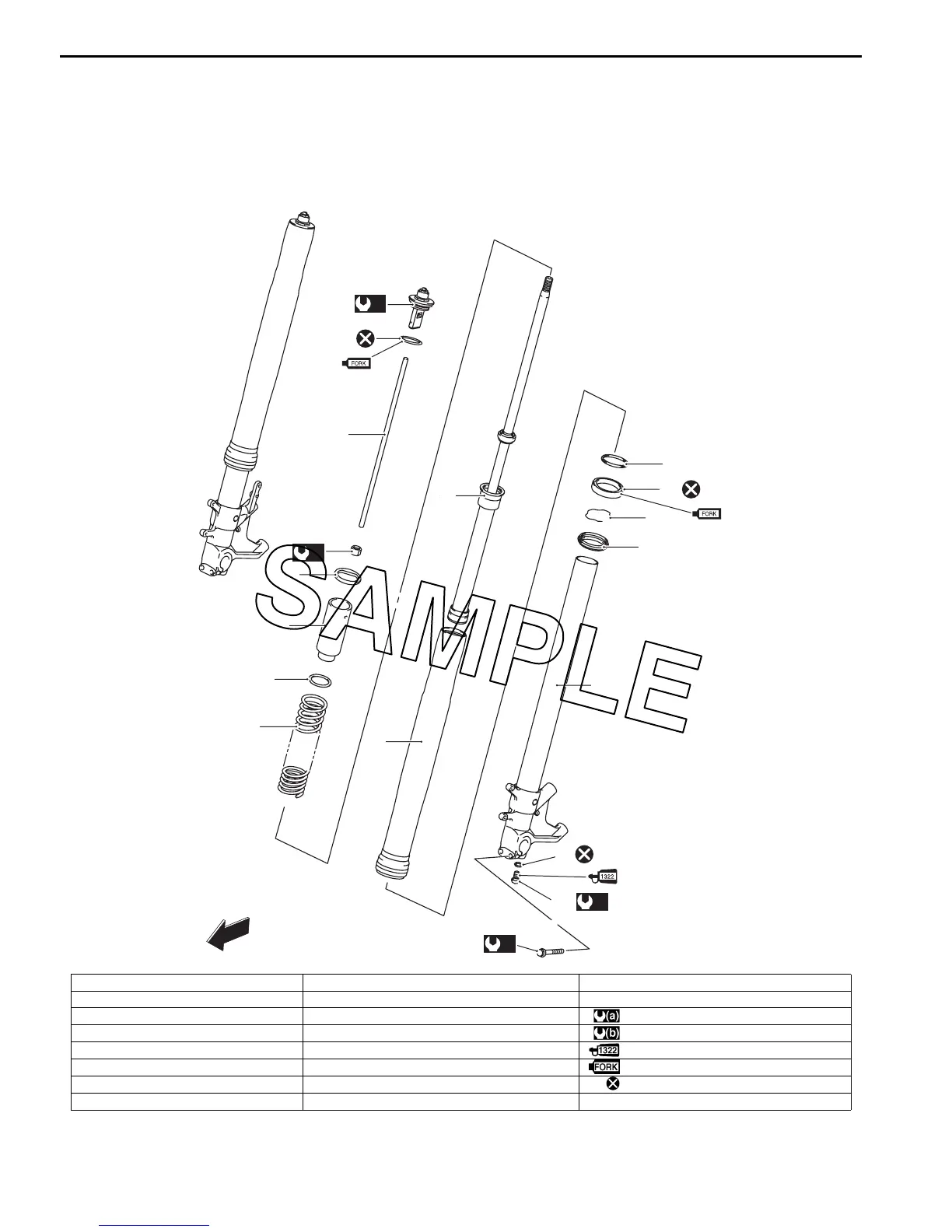

Front Fork Components
B823H12206001
(b)
1
2
3
(a)
4
5
6
7
8
10
9
11
12
13
14
15
16
(b)
17
FWD
FWD
(b)
18
I823H1220081-03
1. Front fork cap bolt 9. Inner rod/Damper rod (cartridge) 17. Damper rod bolt
2. O-ring 10. Outer tube 18. Front axle pinch bolt
3. Adjuster rod 11. Oil seal retainer : 15 Nm (1.5 kgf-m, 11.0 lb-ft)
4. Lock-nut 12. Oil seal : 23 Nm (2.3 kgf-m, 16.5 lb-ft)
5. Spring retainer 13. Oil seal stopper ring : Apply thread lock to the thread part.
6. Spacer 14. Dust seal : Apply fork oil.
7. Washer 15. Inner tube : Do not reuse.
8. Spring 16. Gasket
