Suzuki GSX1300BK B-King User Manual

Starting System: 1I-3
Repair Instructions

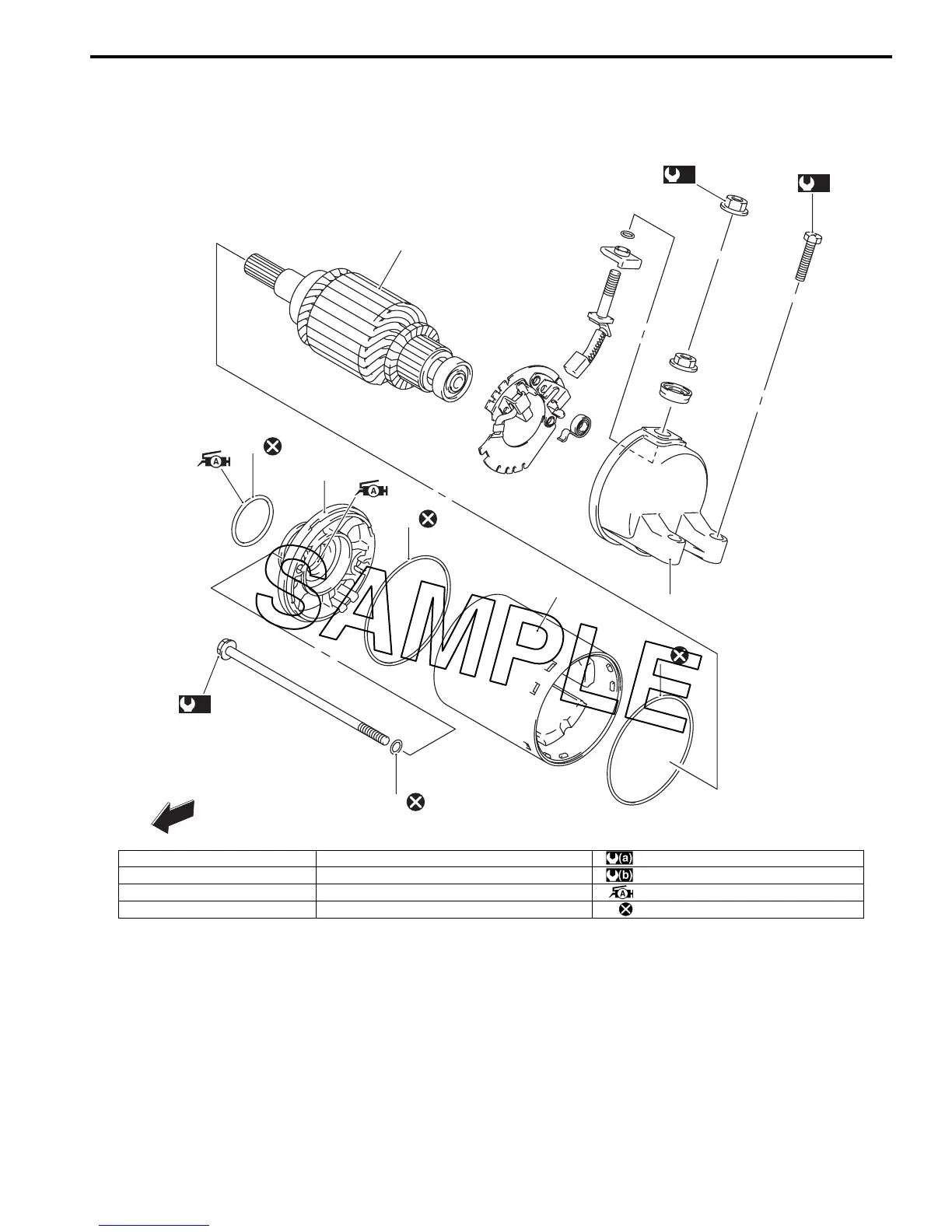

Starter Motor Components
B823H11906001
1
2
3
4
5
6
7
(a)
8
(b)
5
FWD
FWD
(b)
I823H1190037-06
1. O-ring 5. O-ring : 5 Nm (0.5 kgf-m, 3.5 lb-ft)
2. Housing end (Inside) 6. Starter motor case : 6 Nm (0.6 kgf-m, 4.5 lb-ft)
3. O-ring 7: Housing end assembly (Outside) : Apply grease to sliding surface.
4. Armature 8. Starter motor lead wire nut : Do not reuse.
