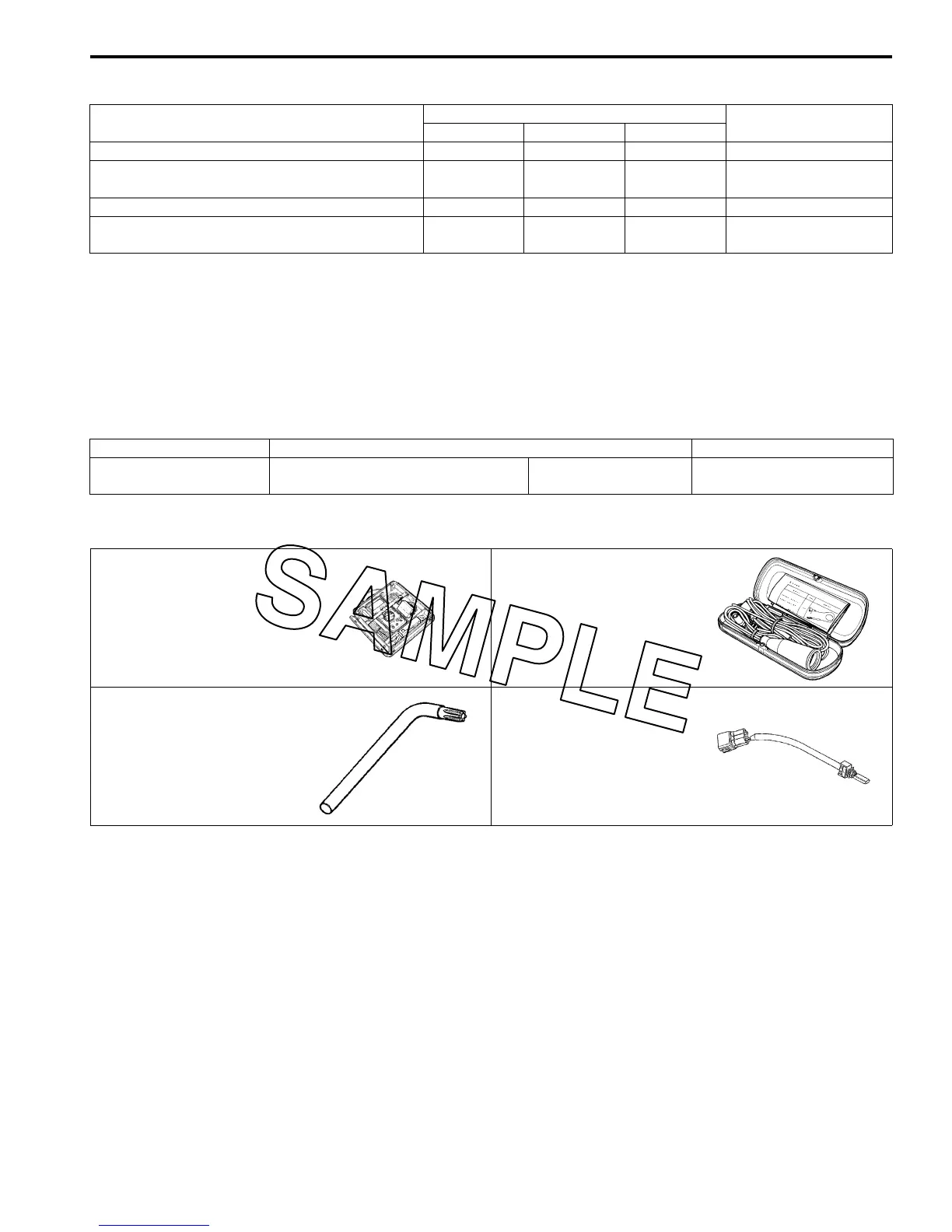

Engine Electrical Devices: 1C-11
Tightening Torque Specifications
B823H11307002
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-9)”.
Special Tools and Equipment
Recommended Service Material
B823H11308001
Special Tool
B823H11308002
Fastening part
Tightening torque
Note
Nmkgf-mlb-ft
CMP sensor bolt 10 1.0 7.0 )(Page 1C-2)
TP sensor mounting screw
3.5 0.35 2.5
)(Page 1C-4) /
)(Page 1C-4)
ECT sensor 18 1.8 13.0 )(Page 1C-5)
STP sensor mounting screw
3.5 0.35 2.5
)(Page 1C-7) /
)(Page 1C-8)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 1C-4) / )(Page 1C-
8)
09900–25008 09900–25009
Multi-circuit tester set Needle pointed probe set
)(Page 1C-5) / )(Page 1C-
7)
)(Page 1C-7)
09930–11950 09930–82720
Torx wrench Mode select switch
)(Page 1C-3) / )(Page 1C-
4) / )(Page 1C-4) /
)(Page 1C-7) / )(Page 1C-
8) / )(Page 1C-8)
)(Page 1C-4)
To Next Page
