Engine General Information and Diagnosis: 1A-15

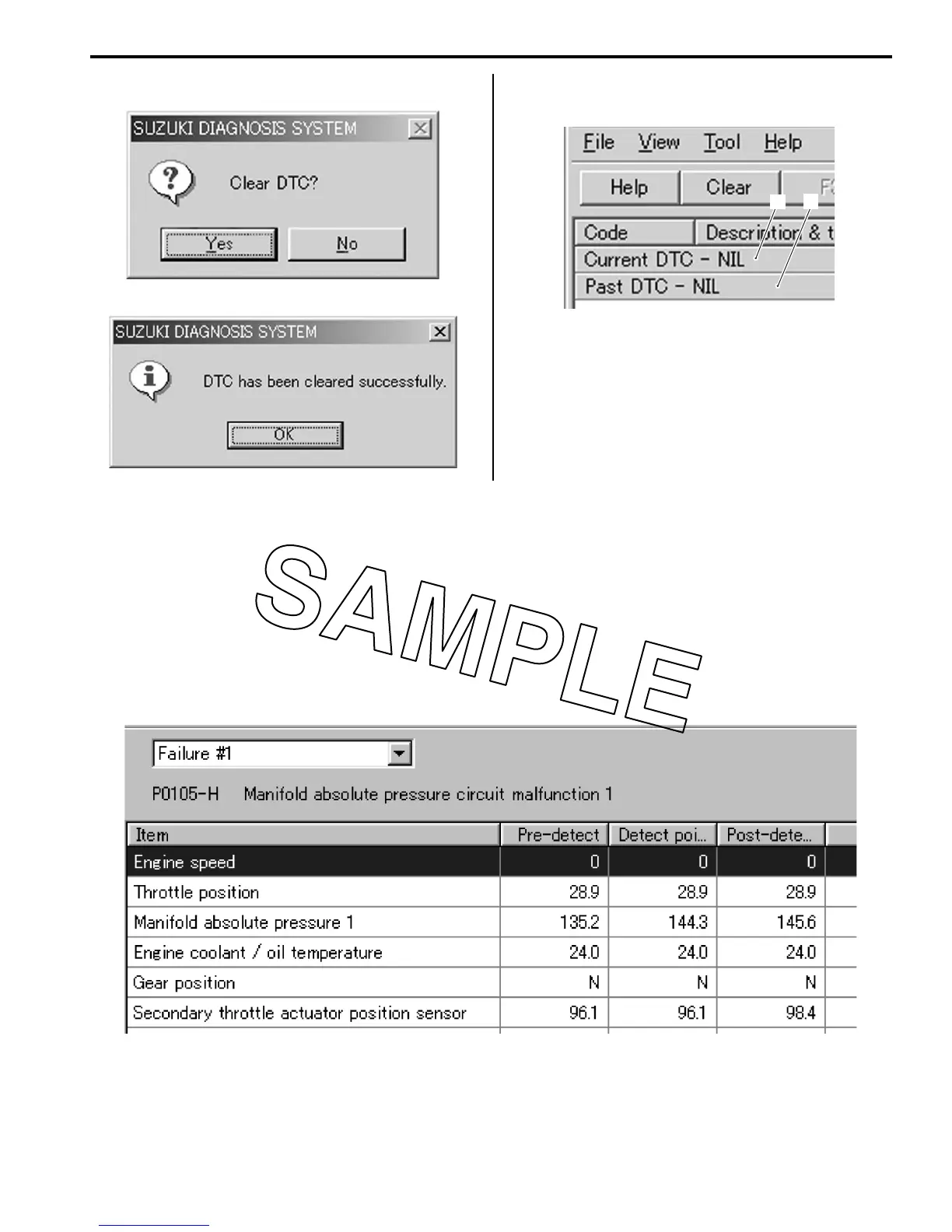

6) Follow the displayed instructions.
7) Check that both “Current DTC” (3) and “Past DTC”
(4) are deleted (NIL).
8) Close the SDS tool and turn the ignition switch OFF.
9) Disconnect the SDS tool and install the right frame
cover.
Show Data When Trouble (Displaying Data at the Time of DTC)
B823H11104004
Use of SDS
ECM stores the engine and driving conditions (in the form of data as shown in the figure) at the moment of the
detection of a malfunction in its memory. This data is called “Show data when trouble”.
Therefore, it is possible to know engine and driving conditions (e.g., whether the engine was warm or not, where the
motorcycle was running or stopped) when a malfunction was detected by checking the show data when trouble. This
show data when trouble function can record the maximum of two Diagnostic Trouble Codes in the ECM.
Also, ECM has a function to store each show data when trouble for two different malfunctions in the order of
occurrence as the malfunction is detected. Utilizing this function, it is possible to know the order of malfunctions that
have been detected. Its use is helpful when rechecking or diagnosing a trouble.
I705H1110006-01
I705H1110009-01
3
4
I705H1110008-01
I705H1110010-01
