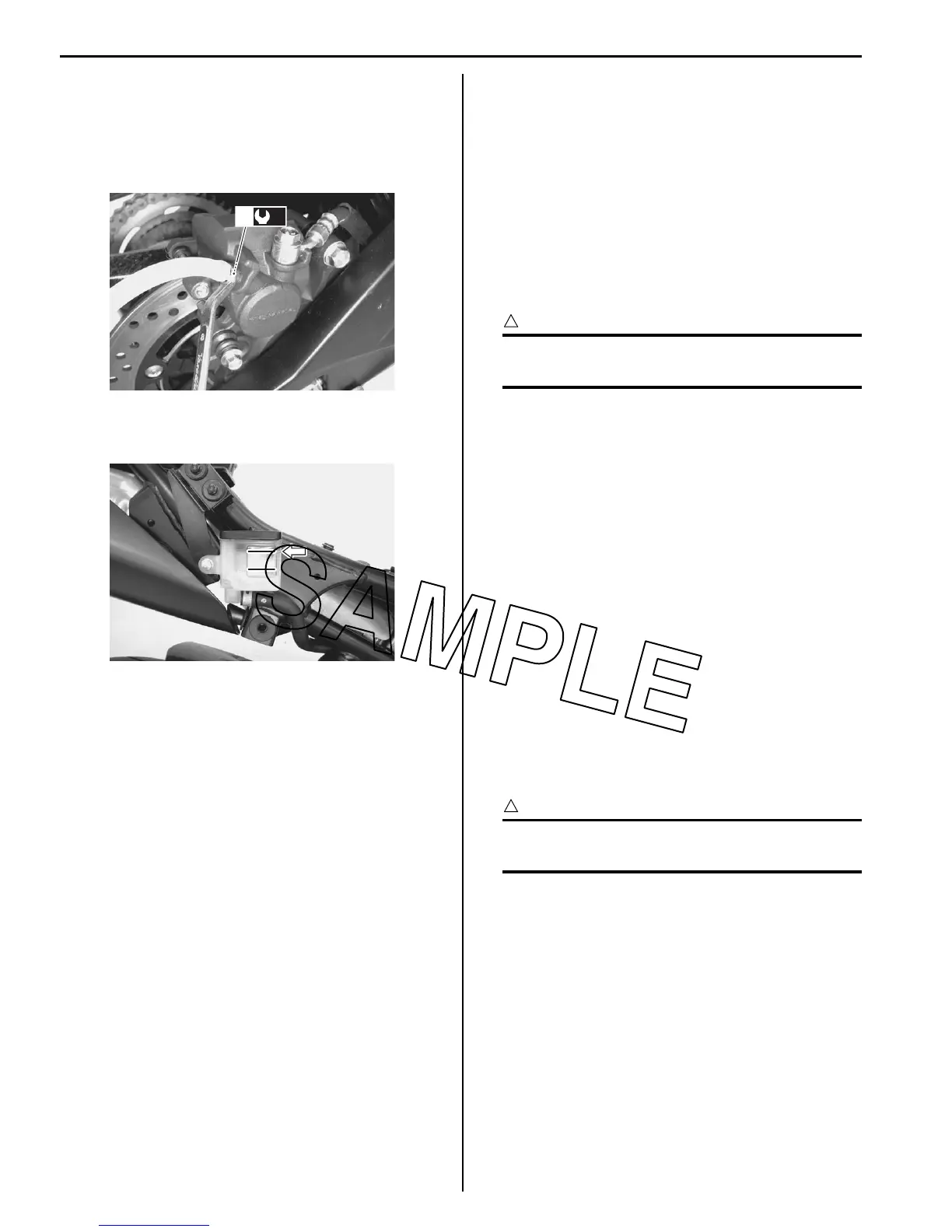

4A-8 Brake Control System and Diagnosis:
8) Close the air bleeder valve (1) and disconnect the
clear hose.
Tightening torque
Air bleeder valve (Rear) (a): 7.5 N·m (0.75 kgf-m,
5.5 lb-ft)
9) Fill the reservoir with brake fluid to the upper mark of
the reservoir.
10) Reinstall the removed part.
Front Brake Hose Removal and Installation
B823H14106009
Removal
1) Remove the headlight. Refer to “Headlight Removal
and Installation in Section 9B (Page 9B-4)”.
2) Drain brake fluid. Refer to “Brake Fluid Replacement
(Page 4A-6)”.
3) Remove the front brake hoses as shown in the front
brake hose routing diagram. Refer to “Front Brake
Hose Routing Diagram (Page 4A-1)”.
Installation
CAUTION
!
The seal washers should be replaced with the
new ones to prevent fluid leakage.
1) Install the front brake hose as shown in the front
brake hose routing diagram. Refer to “Front Brake
Hose Routing Diagram (Page 4A-1)”.
2) Bleed air from the front brake system. Refer to “Air
Bleeding from Brake Fluid Circuit (Page 4A-4)”.
3) Reinstall the removed parts.
Rear Brake Hose Removal and Installation
B823H14106010
Removal
1) Remove the right frame cover. Refer to “Exterior
Parts Removal and Installation in Section 9D
(Page 9D-14)”.
2) Drain brake fluid. Refer to “Brake Fluid Replacement
(Page 4A-6)”.
3) Remove the rear brake hoses as shown in the rear
brake hose routing diagram. Refer to “Rear Brake
Hose Routing Diagram (Page 4A-2)”.
Installation
CAUTION
!
The seal washers should be replaced with the
new ones to prevent fluid leakage.
1) Install the rear brake hose as shown in the rear
brake hose routing diagram. Refer to “Rear Brake
Hose Routing Diagram (Page 4A-2)”.
2) Bleed air from the rear brake system. Refer to “Air
Bleeding from Brake Fluid Circuit (Page 4A-4)”.
3) Reinstall the removed parts.
