Exterior Parts: 9D-12

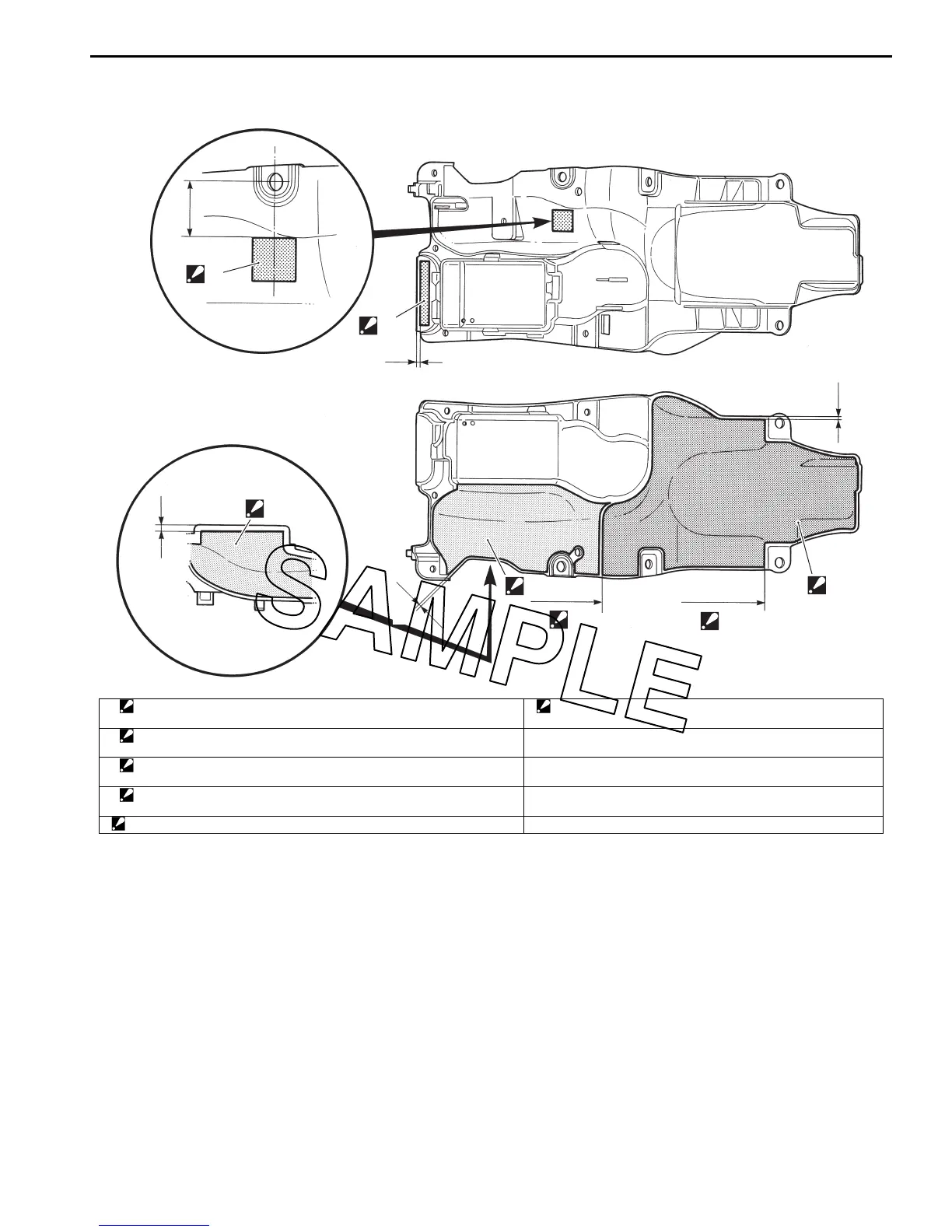

Rear Fender Heat Shield / Cushion Attachment
B823H19406025
“c”
4
“b”
3
“a”
“a”
2
2
“B”
“A”
1
“a”
I823H1940091-03
1. Heat shield No. 1
: Clean the adhesive surface before adhering the heat shield.
“B”: Align the heat shield No. 2 to the heat shield No. 1.
2. Heat shield No. 2
: Clean the adhesive surface before adhering the heat shield.
“a”: 5 mm (0.2 in)
3. Cushion rubber No. 1
: Clean the adhesive surface before adhering the cushion rubber.
“b”: 1 mm (0.04 in)
4. Cushion rubber No. 2
: Clean the adhesive surface before adhering the cushion rubber.
“c”: 45 mm (1.8 in)
“A”: Align the heat shield No. 1 to the edge of the rear fender.
To Next Page
