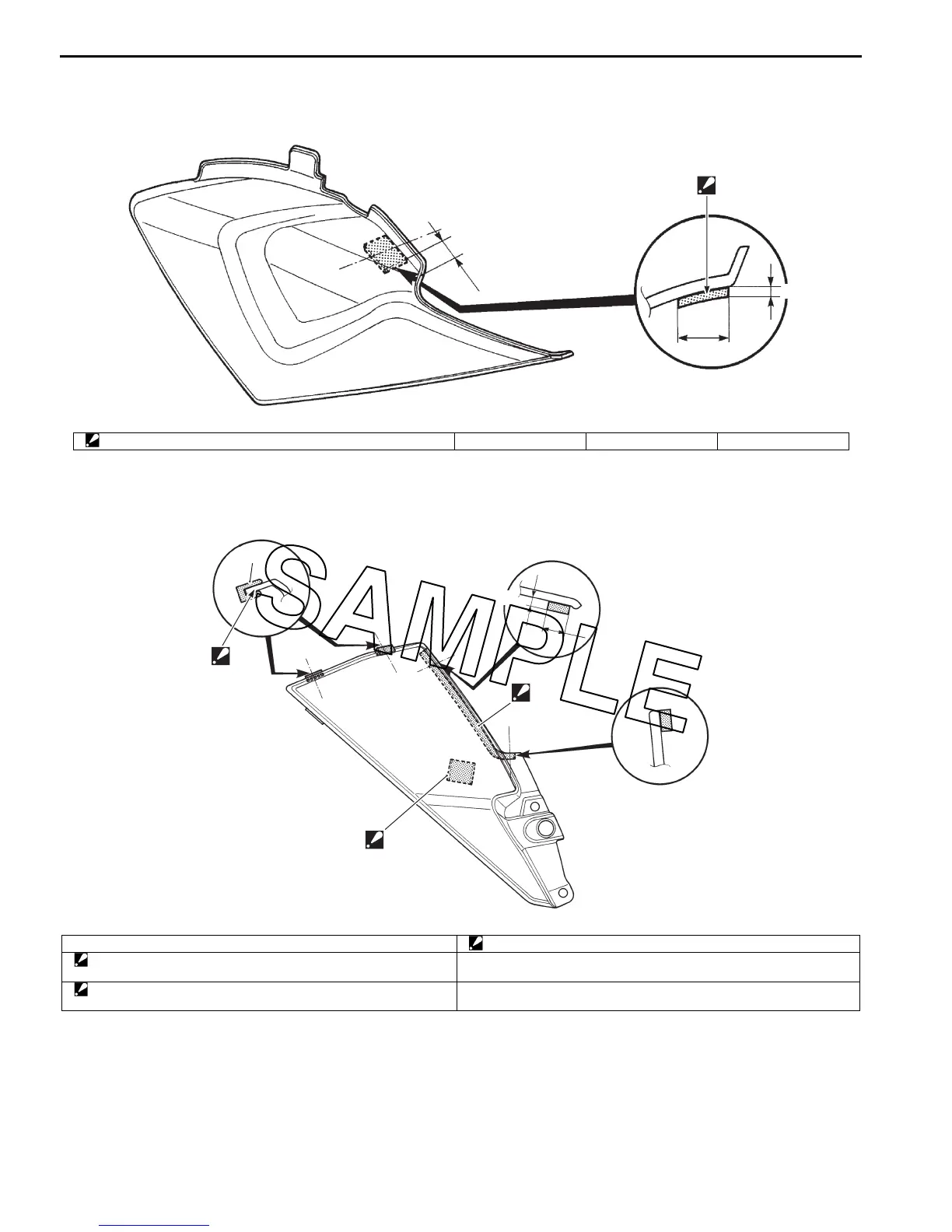

9D-3 Exterior Parts:
Frame Side Cover Cushion Attachment
B823H19406014
Front Frame Cover Cushion Attachment
B823H19406015
“A”
“a”
“c”
View of backside
“b”
I823H1940080-01
“A”: Clean the adhesive surface before adhering the cushion rubber. “a”: 20 mm (0.8 in) “b”: 2 mm (0.08 in) “c”: 15 mm (0.6 in)
“a”
“b”
2
“A”
1
3
I823H1940081-01
1. Cushion rubber “A”: Apply adhesive agent to the inside surface of the cushion rubber.
2. Velcro fastening
: Align the velcro fastening to the aligned mark.
“a”: 3 mm (0.1 in)
3. Cushion rubber
: Clean the adhesive surface before adhesing the cushion rubber.
“b”: 7 mm (0.3 in)
To Next Page
