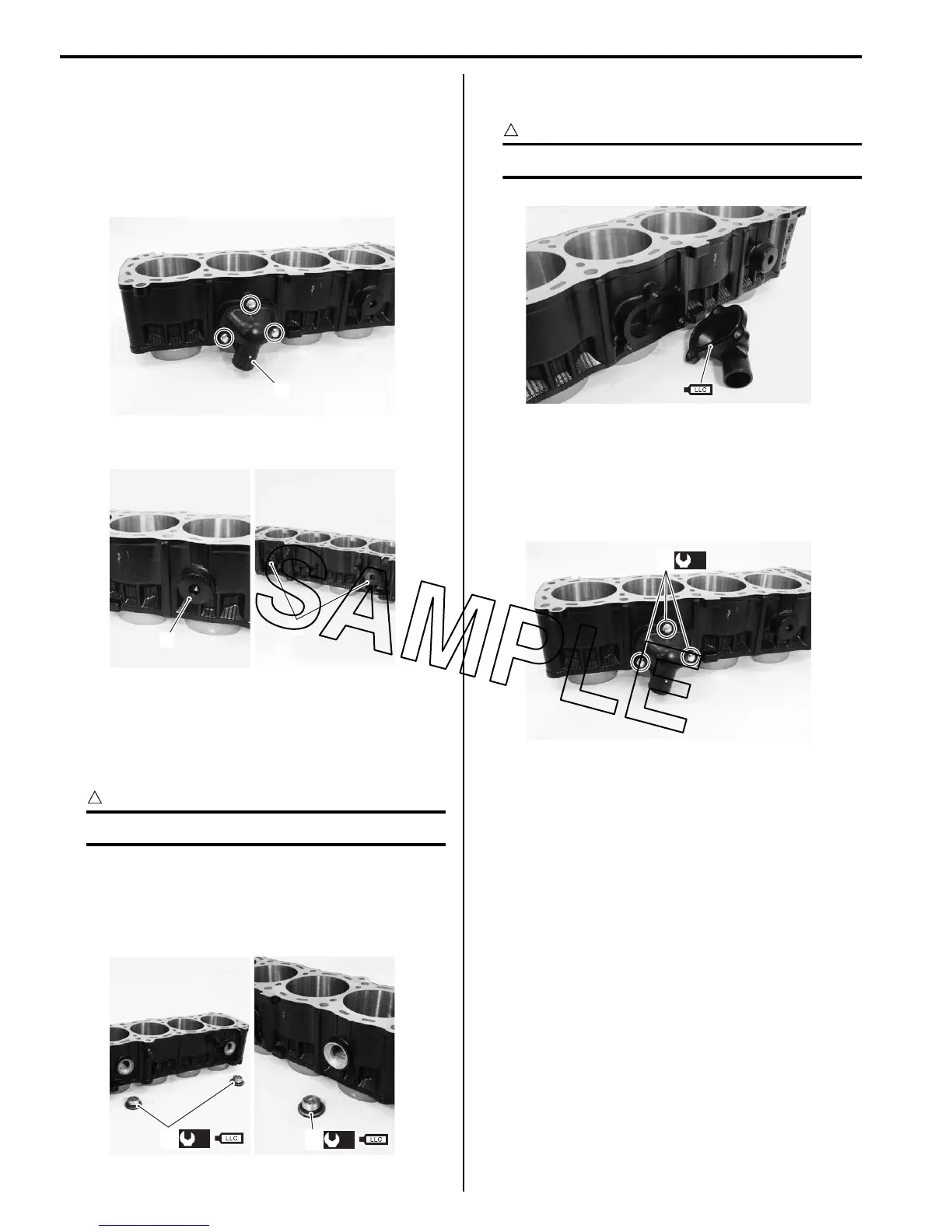

1D-59 Engine Mechanical:
Cylinder Disassembly and Assembly
B823H11406030
Refer to “Engine Top Side Disassembly (Page 1D-28)”.
Refer to “Engine Top Side Assembly (Page 1D-32)”.
Disassembly
1) Remove the water inlet connector (1).
2) Remove the water jacket plugs (2).
Assembly
Assembly is in the reverse order of disassembly. Pay
attention to the following points:
• Apply engine coolant to O-rings of water jacket plugs.
CAUTION
!
Replace the O-rings with new ones.
• Tighten the water jacket plugs (1) to the specified
torque.
Tightening torque
Water jacket plug (a): 11 N·m (1.1 kgf-m, 8.0 lb-ft)
• Apply engine coolant to O-ring of water inlet
connector.
CAUTION
!
Replace the O-ring with a new one.
• Tighten the water inlet connector bolts (2) to the
specified torque.
Tightening torque
Water inlet connector bolt (b): 10 N·m (1.0 kgf-m,
7.0 lb-ft)
1
I823H1140397-01
2
2
I823H1140398-01
(a)
1
(a)
1
I823H1140399-01
I823H1140400-01
(b)
2
I823H1140401-01
To Next Page
