5C-6 Clutch:

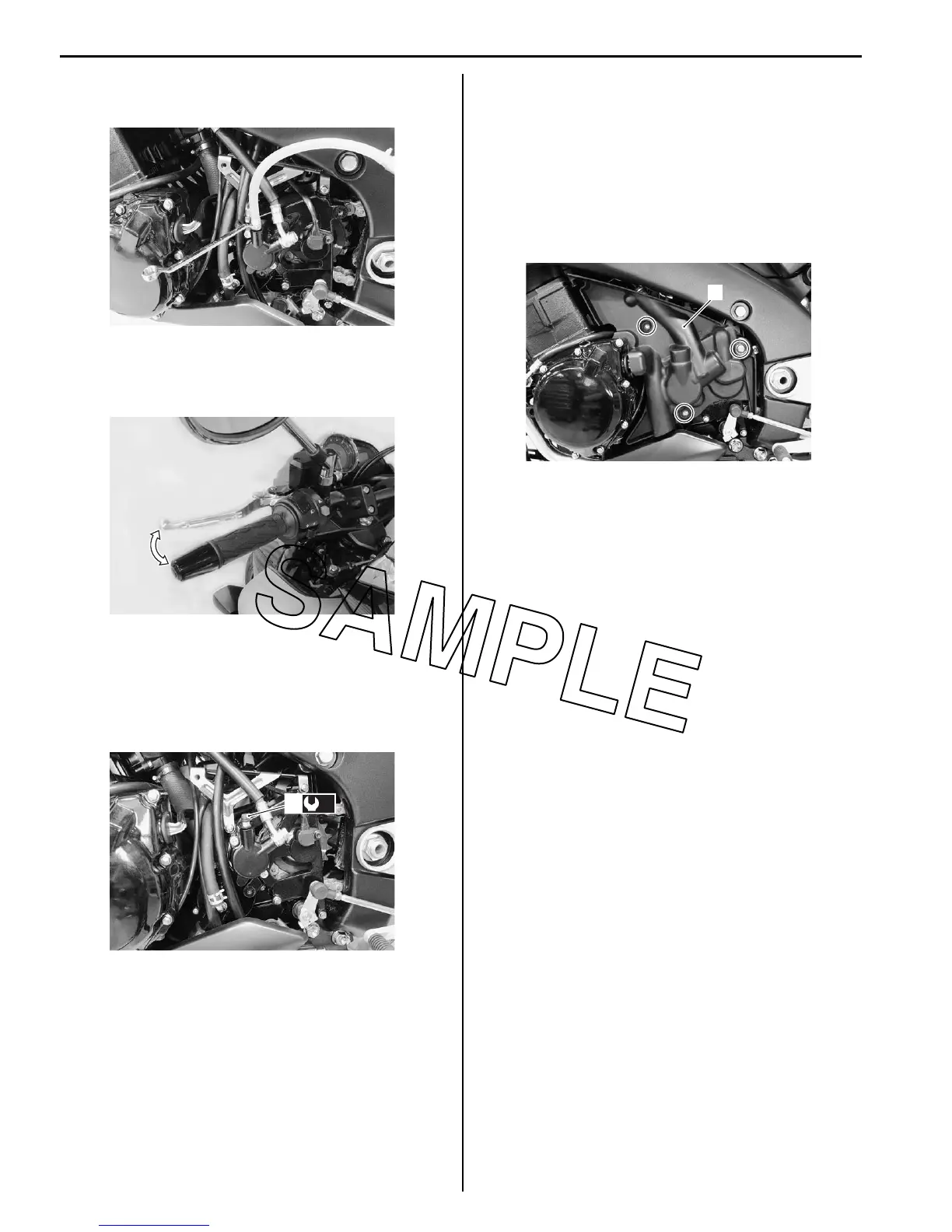

6) Connect a clear hose to the air bleeder valve and
insert the other end of hose into a receptacle.
7) Loosen the air bleeder valve and pump the clutch
lever until old clutch fluid flows out of the clutch fluid
circuit.
8) Close the air bleeder valve (2) and disconnect the
hose.
Tightening torque
Air bleeder valve (Clutch) (a): 6 N·m (0.6 kgf-m,
4.5 lb-ft)
9) Fill the reservoir with new fluid.
10) Reinstall the removed parts.
Clutch Hose Removal and Installation
B823H15306006
Removal
1) Drain clutch fluid. Refer to “Clutch Fluid
Replacement (Page 5C-5)”.
2) Remove the air cleaner box. Refer to “Air Cleaner
Box Removal and Installation in Section 1D
(Page 1D-6)”.
3) Remove the engine sprocket outer cover (1).
4) Remove the clutch hose as shown in the clutch hose
routing diagram. Refer to “Clutch Hose Routing
Diagram (Except for E-33) (Page 5C-2)”.
Installation
1) Install the clutch hose as shown in the clutch hose
routing diagram. Refer to “Clutch Hose Routing
Diagram (Except for E-33) (Page 5C-2)”.
2) Bleed air from the clutch system. Refer to “Air
Bleeding from Clutch Fluid Circuit (Page 5C-5)”.
3) Reinstall the removed parts.
I823H1530003-01
I823H1530004-01
(a)
2
I823H1530006-02
1
I823H1530002-01
