Brake Control System and Diagnosis: 4A-9

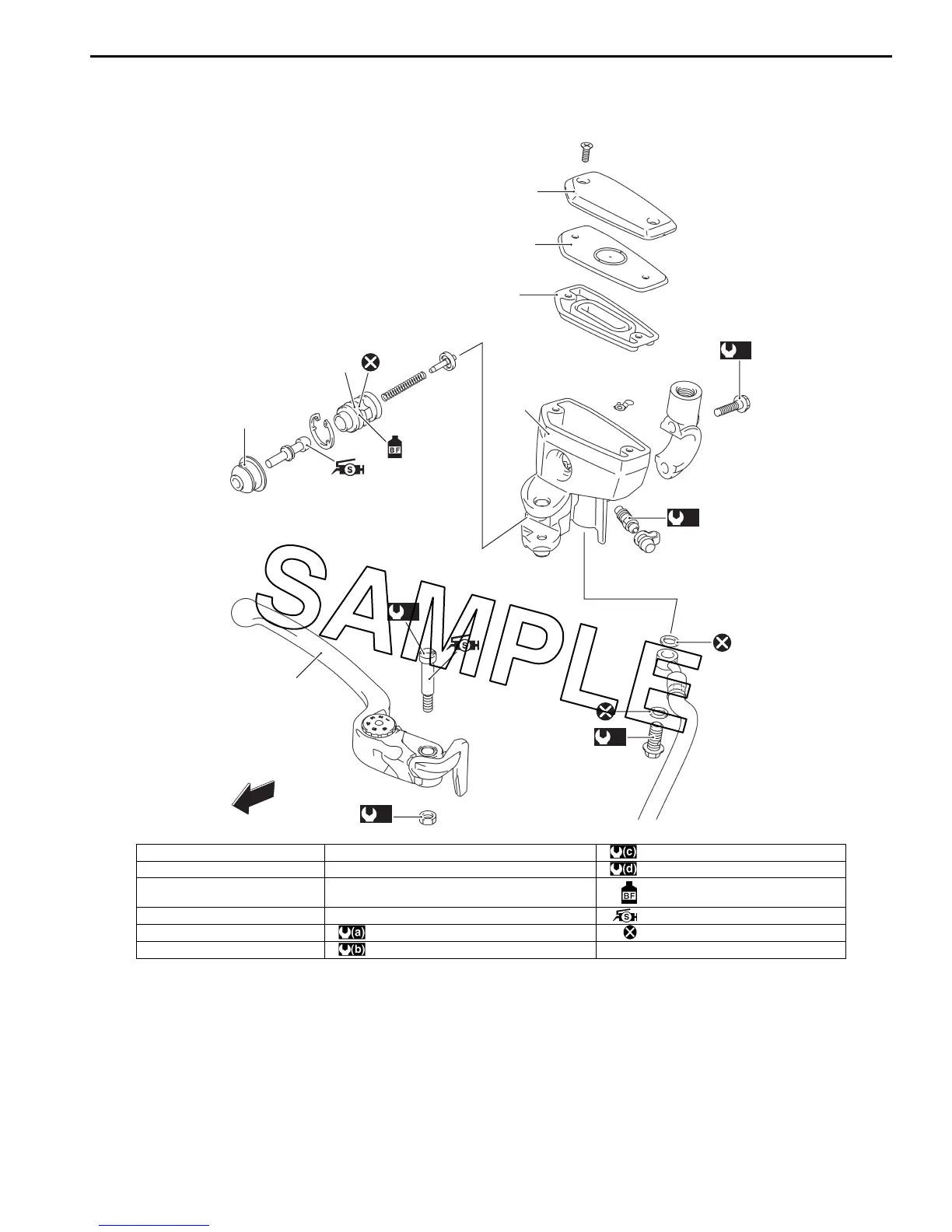

Front Brake Master Cylinder Components
B823H14106011
5
6
8
(d)
9
(c)
10
(a)
7
(c)
(b)
4
3
2
1
FWD
FWD
I823H1410045-02
1. Reservoir cap 7. Brake hose union bolt : 6.0 Nm (0.6 kgf-m, 4.5 lb-ft)
2. Plate 8. Brake lever : 1.0 Nm (0.1 kgf-m, 0.7 lb-ft)
3. Diaphragm 9. Brake lever pivot bolt : Apply brake fluid.
4. Master cylinder 10. Brake lever pivot bolt lock-nut : Apply silicone grease.
5. Dust boot : 23 Nm (2.3 kgf-m, 16.5 lb-ft) : Do not reuse.
6. Piston set : 10 Nm (1.0 kgf-m, 7.0 lb-ft)
