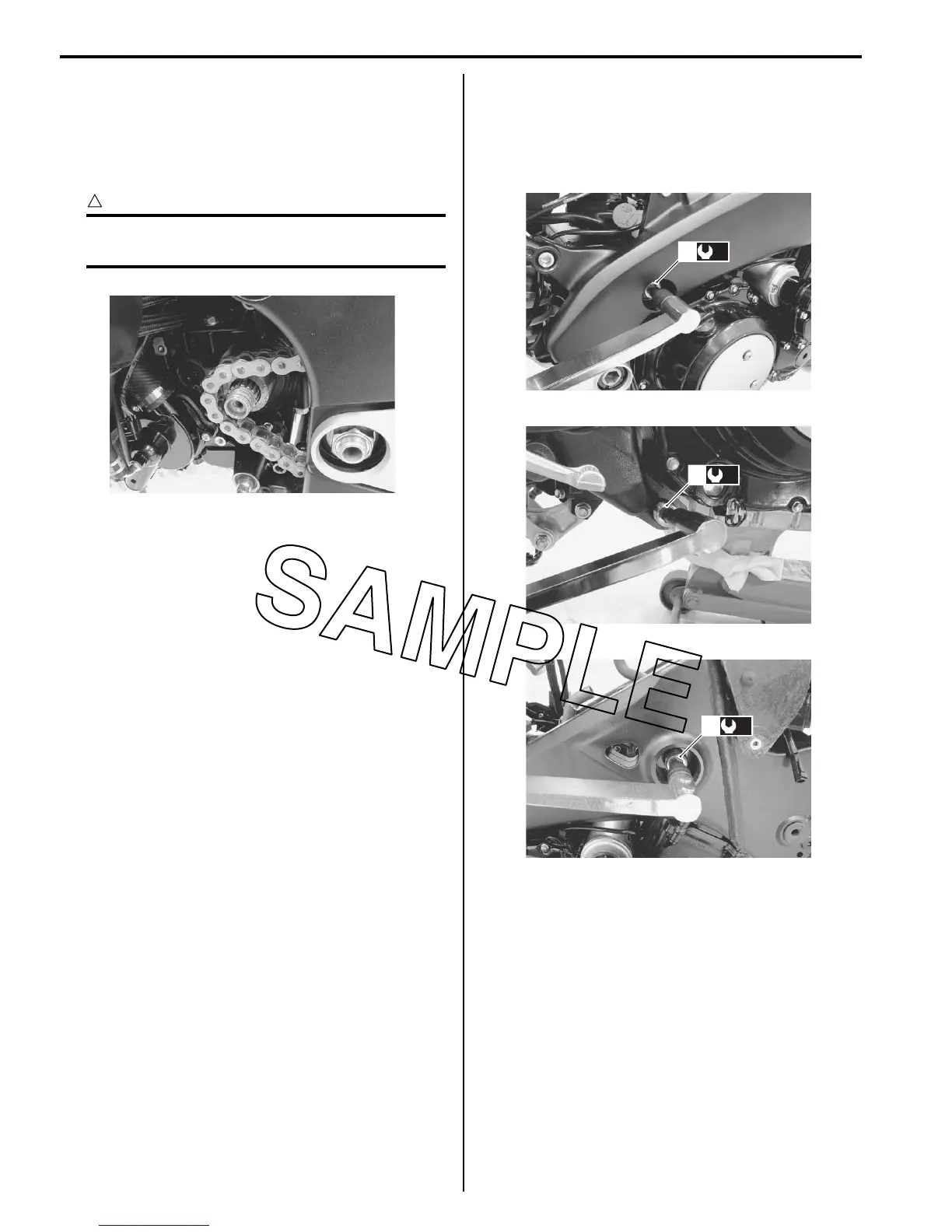

1D-25 Engine Mechanical:
Engine Assembly Installation
B823H11406015
Install the engine in the reverse order of engine removal.
Pay attention to the following points:
• Gradually raise the rear side of the engine assembly,
and then put the drive chain on the driveshaft.
CAUTION
!
Be careful not to catch the wiring harness
between the frame and the engine.
• Install all engine mounting bolts and spacers, then
tighten them temporarily.
• Tighten the engine mounting thrust adjusters (1) to the
specified torque with the special tool.
Tightening torque
Engine mounting thrust adjuster (a): 10 N·m (1.0
kgf-m, 7.0 lb-ft)
I823H1140564-01
(a)
1
I823H1140565-02
(a)
1
I823H1140566-02
(a)
1
I823H1140567-02
To Next Page
