5B-2 Manual Transmission:
Repair Instructions

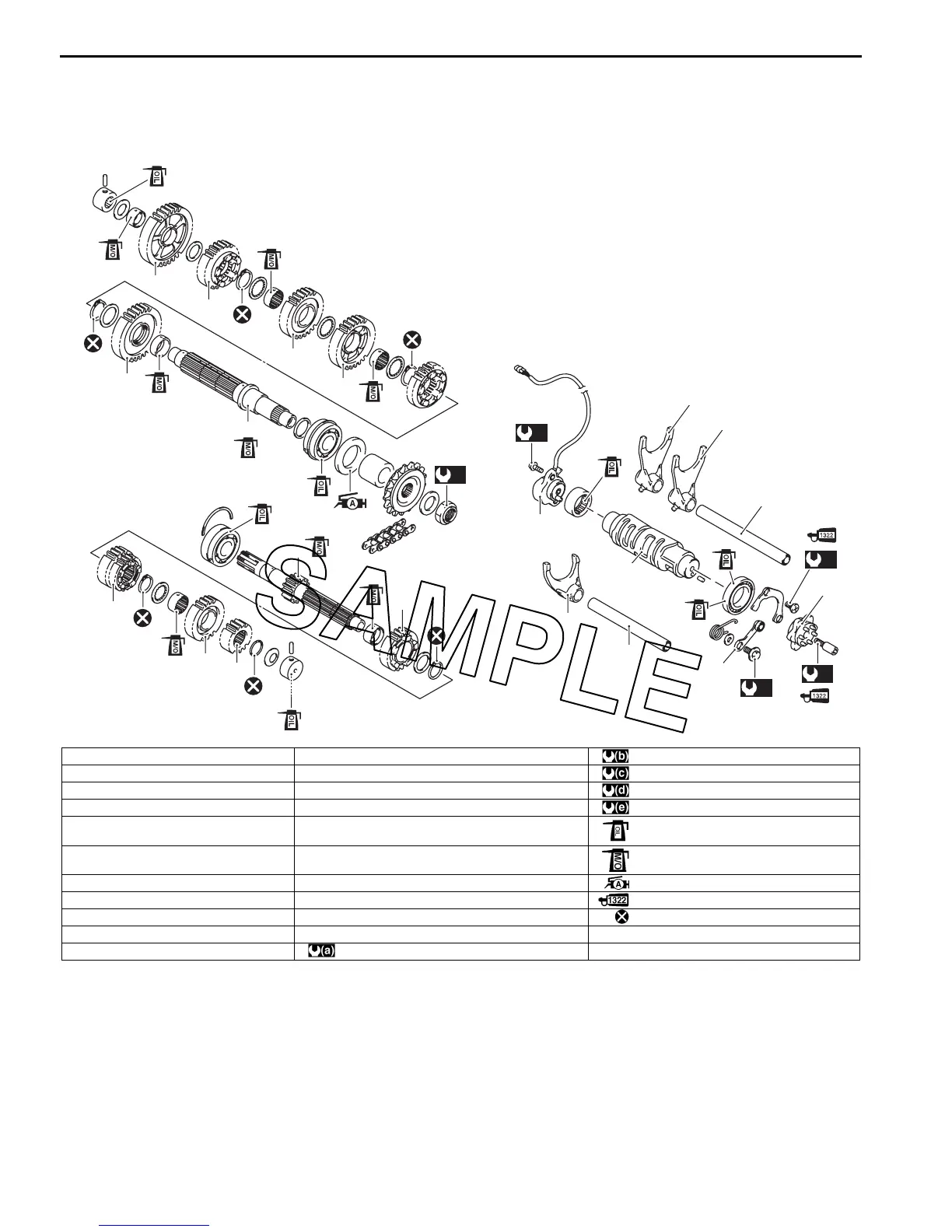

Transmission Components
B823H15206001
12
11
10
9
8
7
6
(a)
5
3
2
1
(e)
(b)
13
(c)
14
(d)
18
15
20
19
21
16
17
4
I823H1520090-04
1. 2nd drive gear 12. 1st driven gear : 10 Nm (1.0 kgf-m, 7.0 lb-ft)
2. 6th drive gear 13. Gearshift cam stopper : 13 Nm (1.3 kgf-m, 9.5 lb-ft)
3. 3rd/4th drive gears 14. Gearshift cam plate : 8 Nm (0.8 kgf-m, 6.0 lb-ft)
4. 5th drive gear 15. Gearshift cam : 6.5 Nm (0.65 kgf-m, 4.7 lb-ft)
5. Countershaft/1st drive gear 16. Gearshift fork shaft : Apply engine oil.
6. Driveshaft 17. Gearshift fork (For 3rd/4th drive gears) : Apply molybdenum oil solution.
7. 2nd driven gear 18. Gearshift fork shaft : Apply grease to the oil seal lip.
8. 6th driven gear 19. Gearshift fork (For 6th driven gear) : Apply thread lock to the thread part.
9. 3rd driven gear 20. Gearshift fork (For 5th driven gear) : Do not reuse.
10. 4th driven gear 21. GP switch
11. 5th driven gear : 145 Nm (14.5 kgf-m, 105.0 lb-ft)
To Next Page
