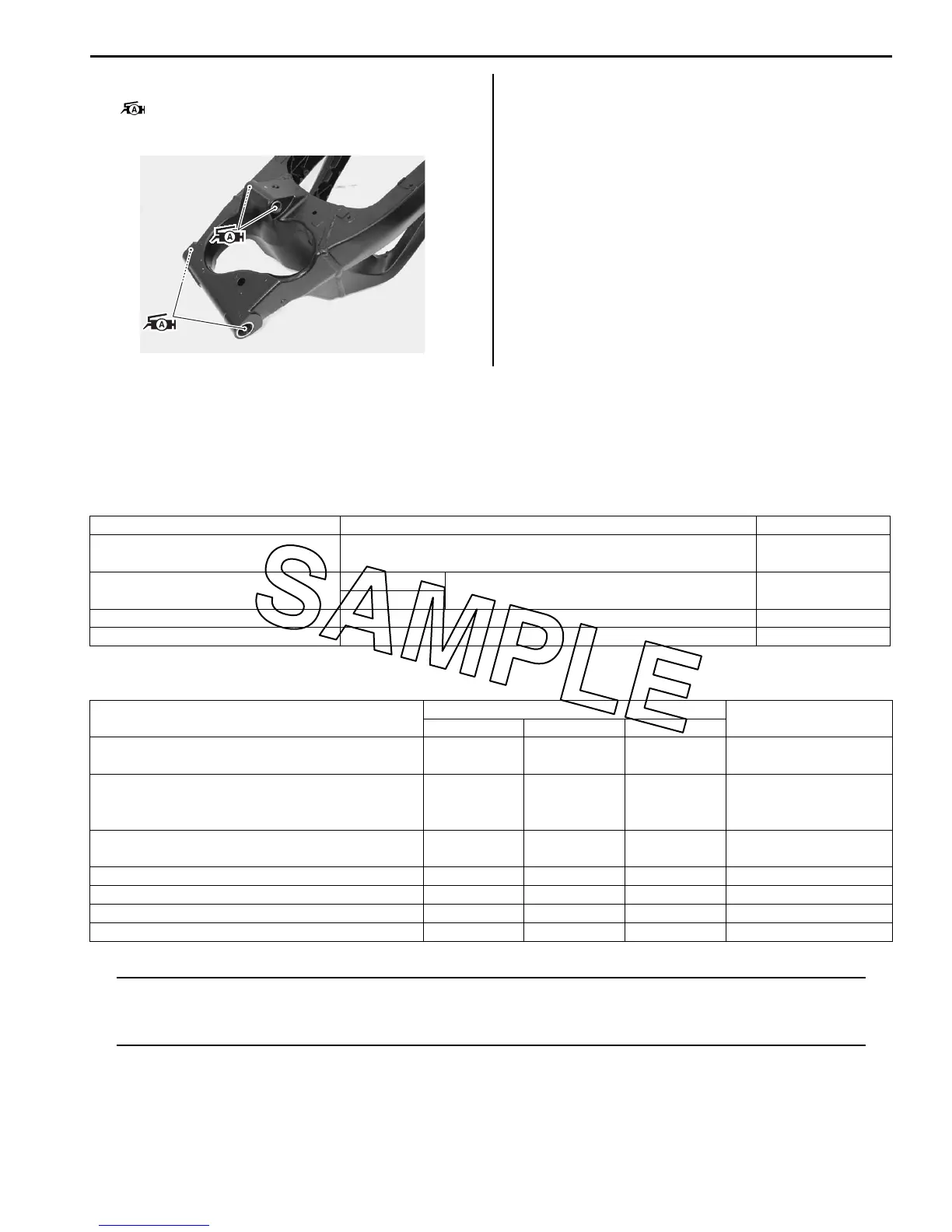

Rear Suspension: 2C-13
4) Apply grease to the bearings.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
5) Install the swingarm. Refer to “Swingarm / Cushion
Rod Removal and Installation (Page 2C-8)”.
6) Install the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation in Section
2D (Page 2D-11)”.
Specifications
Service Data
B823H12307001
Suspension
Unit: mm (in)
Tightening Torque Specifications
B823H12307002
NOTE
The specified tightening torque is also described in the following.
“Rear Suspension Components (Page 2C-1)”
“Rear Suspension Assembly Construction (Page 2C-2)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-9)”.
I823H1230042-02
Item Standard Limit
Rear shock absorber spring pre-set
length
182 (7.2) —
Rear shock absorber damping force
adjuster
Rebound
2 turns out from stiffed position —
Compression
Rear wheel travel 137 (5.4) —
Swingarm pivot shaft runout — 0.3 (0.01)
Fastening part
Tightening torque
Note
Nmkgf-mlb-ft
Rear shock absorber mounting nut
50 5.0 36.0
)(Page 2C-3) /
)(Page 2C-10)
Cushion lever mounting nut
78 7.8 56.5
)(Page 2C-3) /
)(Page 2C-6) /
)(Page 2C-10)
Cushion rod mounting nut
78 7.8 56.5
)(Page 2C-6) /
)(Page 2C-10)
Rear shock absorber lower mounting nut 50 5.0 36.0 )(Page 2C-6)
Swingarm pivot shaft 15 1.5 11.0 )(Page 2C-9)
Swingarm pivot nut 100 10.0 72.5 )(Page 2C-10)
Swingarm pivot lock-nut 90 9.0 65.0 )(Page 2C-10)
To Next Page
