Clutch: 5C-11

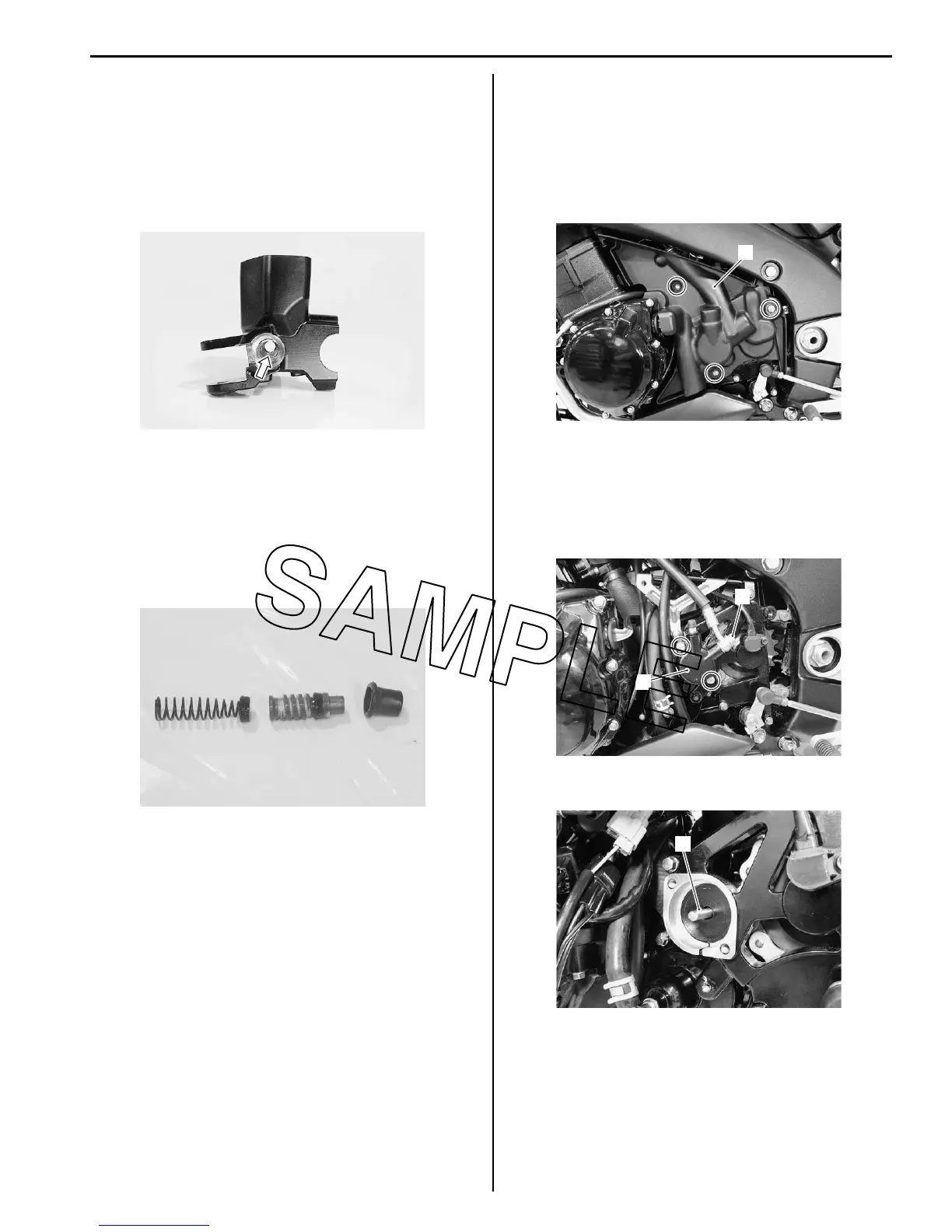

Clutch Master Cylinder Components Inspection
B823H15306010
Refer to “Clutch Master Cylinder / Clutch Lever
Disassembly and Assembly (Page 5C-9)”.
Master Cylinder
Inspect the master cylinder bore for any scratches or
other damage.
Piston
Inspect the piston surface for any scratches or other
damage.
Rubber Parts
Inspect the primary cup, secondary cup and dust boot
for wear or damage.
Clutch Release Cylinder / Push Rod Removal
and Installation
B823H15306011
Removal
1) Drain clutch fluid. Refer to “Clutch Fluid
Replacement (Page 5C-5)”.
2) Remove the engine sprocket outer cover (1).
3) Place a rag under the clutch hose union bolt (2) to
catch any spilt brake fluid.
4) Disconnect the clutch hose by removing the union
bolt (2).
5) Remove the clutch release cylinder (3).
6) Remove the push rod (4).
I823H1530068-01
I649G1530021-02
1
I823H1530002-01
2
3
I823H1530017-01
4
I823H1530065-01
To Next Page
