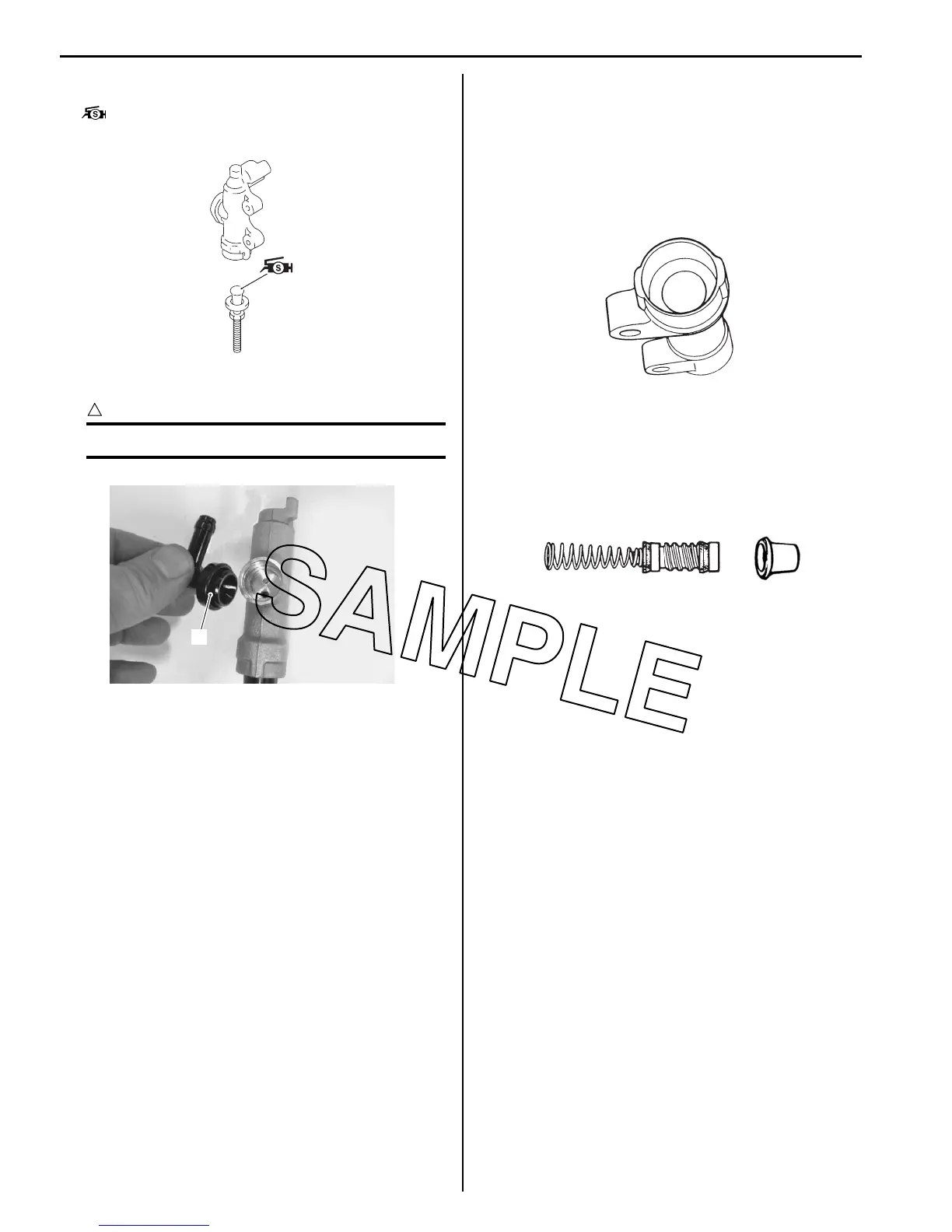

4A-16 Brake Control System and Diagnosis:
• Apply grease to the push rod end.
: Grease 99000–25100 (SUZUKI Silicone
Grease or equivalent)
• Install the O-ring (1).
CAUTION
!
Replace the O-ring (1) with a new one.
Rear Brake Master Cylinder Parts Inspection
B823H14106018
Refer to “Rear Brake Master Cylinder Disassembly and
Assembly (Page 4A-15)”.
Master Cylinder
Inspect the master cylinder bore for any scratches or
other damage.
Piston / Rubber Parts
Inspect the piston surface for any scratches or other
damage.
Inspect the primary cup, secondary cup and dust boot
for wear or damage.
I649G1410041-03
1
I823H1410042-01
I649G1410038-02
I649G1410039-02
To Next Page
