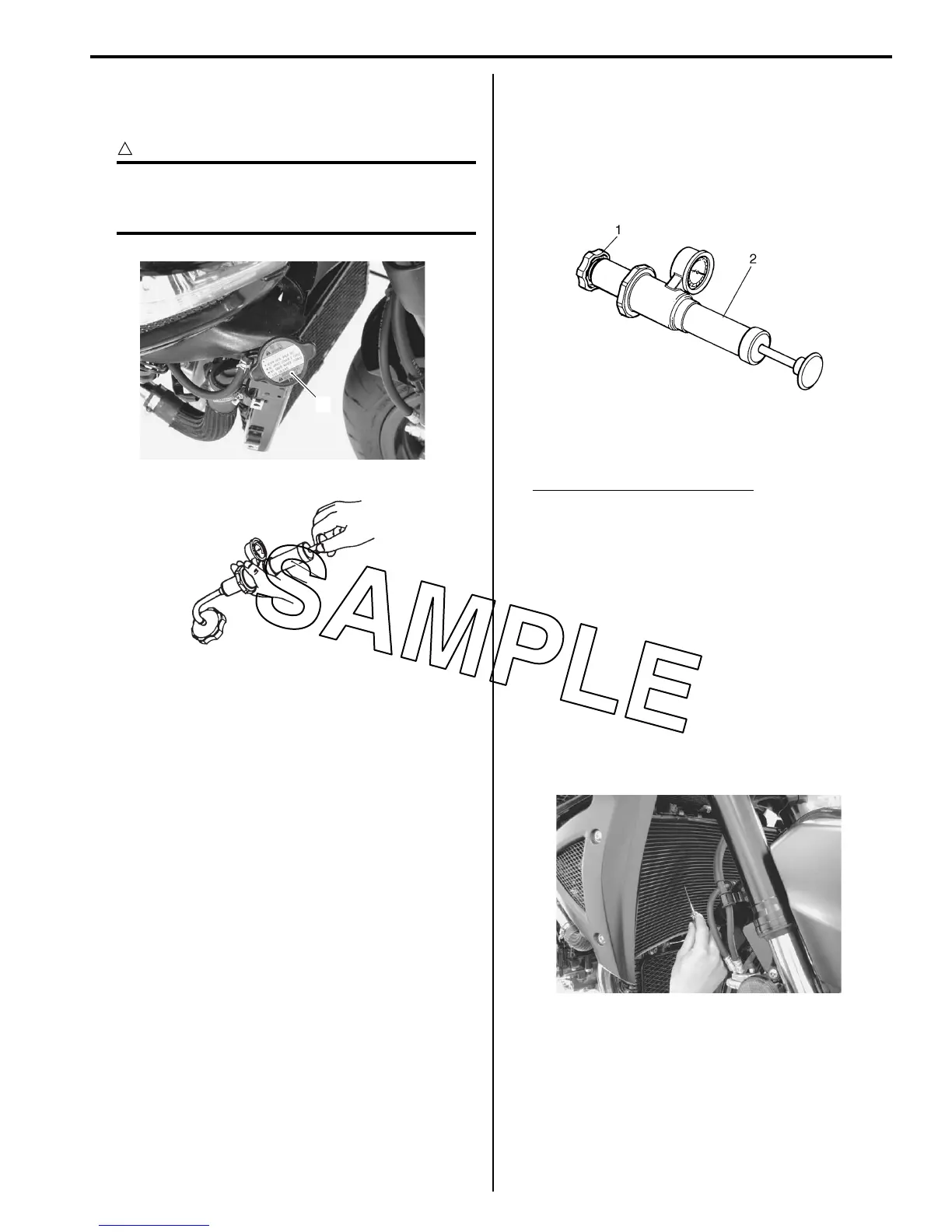

Engine Cooling System: 1F-5
3) Pressurize the cooling system with 110 kPa (1.1 kgf/
cm, 15.6 psi) of pressure, and then check if it holds
the pressure for 10 seconds.
CAUTION
!
Do not exceed the radiator cap release
pressure, or the radiator cap and
subsequently the radiator, can be damaged.
4) After finishing the cooling circuit inspection, reinstall
the removed parts.
Radiator Cap Inspection
B823H11606002
Inspect the radiator cap in the following procedures:
1) Remove the radiator cap. Refer to “Cooling Circuit
Inspection (Page 1F-4)”.
2) Attach the radiator cap (1) to the radiator tester (2)
as shown.
3) Slowly apply pressure to the radiator cap.
If the radiator cap does not hold the pressure for at
least 10 seconds, replace it with a new one.
Radiator cap release pressure
93 – 123 kPa (0.93 – 1.23 kgf/cm
2
, 13.2 – 17.5 psi)
4) After finishing the radiator cap inspection, reinstall
the removed parts.
Radiator Inspection and Cleaning
B823H11606003
Radiator Hose
Refer to “Cooling System Inspection in Section 0B
(Page 0B-13)”.
Radiator
Inspect the radiator for water leaks. If any defects are
found, replace the radiator with a new one.
If the fins are bent or dented, repair them by carefully
straightening them with the blade of a small screwdriver.
2
I823H1160004-01
3
I823H1160005-01
I718H1160033-01
I823H1160006-01
