Suzuki Swift Sport 2004 User Manual

Air Conditioning System: Automatic Type 7B-73
HVAC Unit Removal and Installation
S7RS0B7226003
Refer to “HVAC Unit Removal and Installation”.

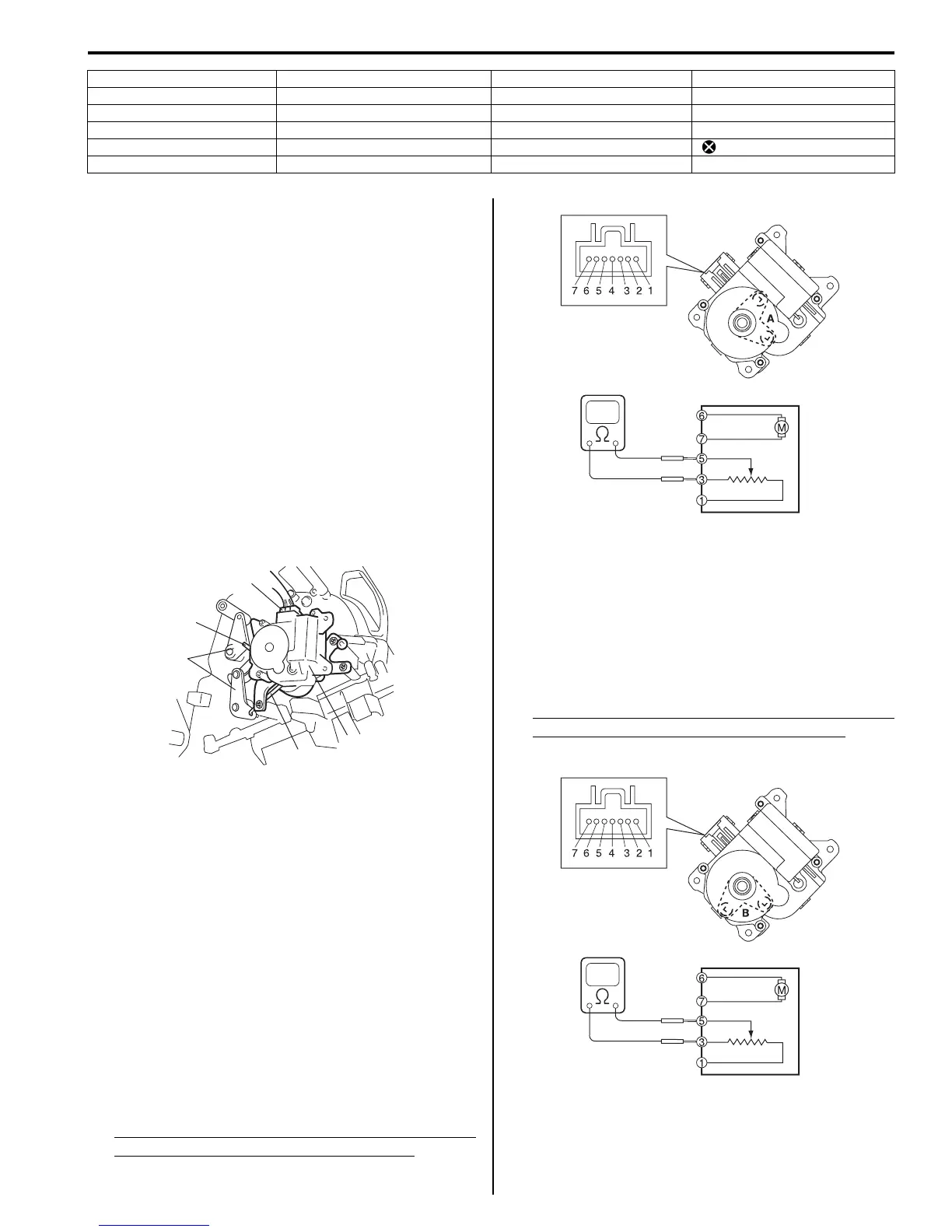

Temperature Control Actuator Removal and
Installation
S7RS0B7226004
Removal
1) Disconnect negative (–) cable at battery.
2) Remove steering column hole cover from instrument
panel.
3) Remove foot duct from HVAC unit.
4) Disconnect temperature control actuator connector
(1).
5) Detach temperature control actuator rods (2) from
linkage (3).
6) Remove temperature control actuator (4) from HVAC
unit.
Installation
Reverse removal procedure.
Temperature Control Actuator Inspection
S7RS0B7226005
1) Remove temperature control actuator from HVAC
unit referring to “Temperature Control Actuator
Removal and Installation”.
2) Connect connector to temperature control actuator.
3) Set temperature selector of HVAC control module to
MAX HOT position with ignition switch ON, and
make sure if the position of actuator lever is MAX
HOT position (A).
4) Turn ignition switch OFF, and then disconnect
connector from temperature control actuator.
5) Measure resistance between terminal “3” and “5”.
Temperature control actuator resistance between
terminal “3” and “5” (MAX HOT position)
Approximately 2.5 kΩ at 25°C (77°F)
6) Connect connector to temperature control actuator.
7) Set temperature selector of HVAC control module to
MAX COOL position with ignition switch ON, and
make sure if the position of actuator lever is MAX
COOL position (B).
8) Turn ignition switch OFF, and then disconnect
connector from temperature control actuator.
9) Measure resistance between terminal “3” and “5”
Temperature control actuator resistance between
terminal “3” and “5” (MAX COOL position)
Approximately 4.8 kΩ at 25°C (77°F)
If check result is not satisfactory, replace the actuator
with new one.
2. Blower upper case 9. Blower motor controller 16. Evaporator 23. Temperature control actuator
3. Air intake control actuator 10. Blower lower case 17. O-ring 24. Air flow control actuator
4. Air filter (if equipped) 11. Blower motor 18. Expansion valve 25. Inside air temperature sensor
5. Heater unit upper case 12. Heater unit lower case 19. Evaporator temperature sensor 26. Aspirator hose
6. Foot duct 13. Heater core 20. Packing : Do not reuse.
7. Air flow control door assembly 14. Temperature control links 21. Filter cover
1
2
2
3
4
I5RS0A722020-02
I5RS0A722021-03
I5RS0A722022-03
