1D-27 Engine Mechanical:

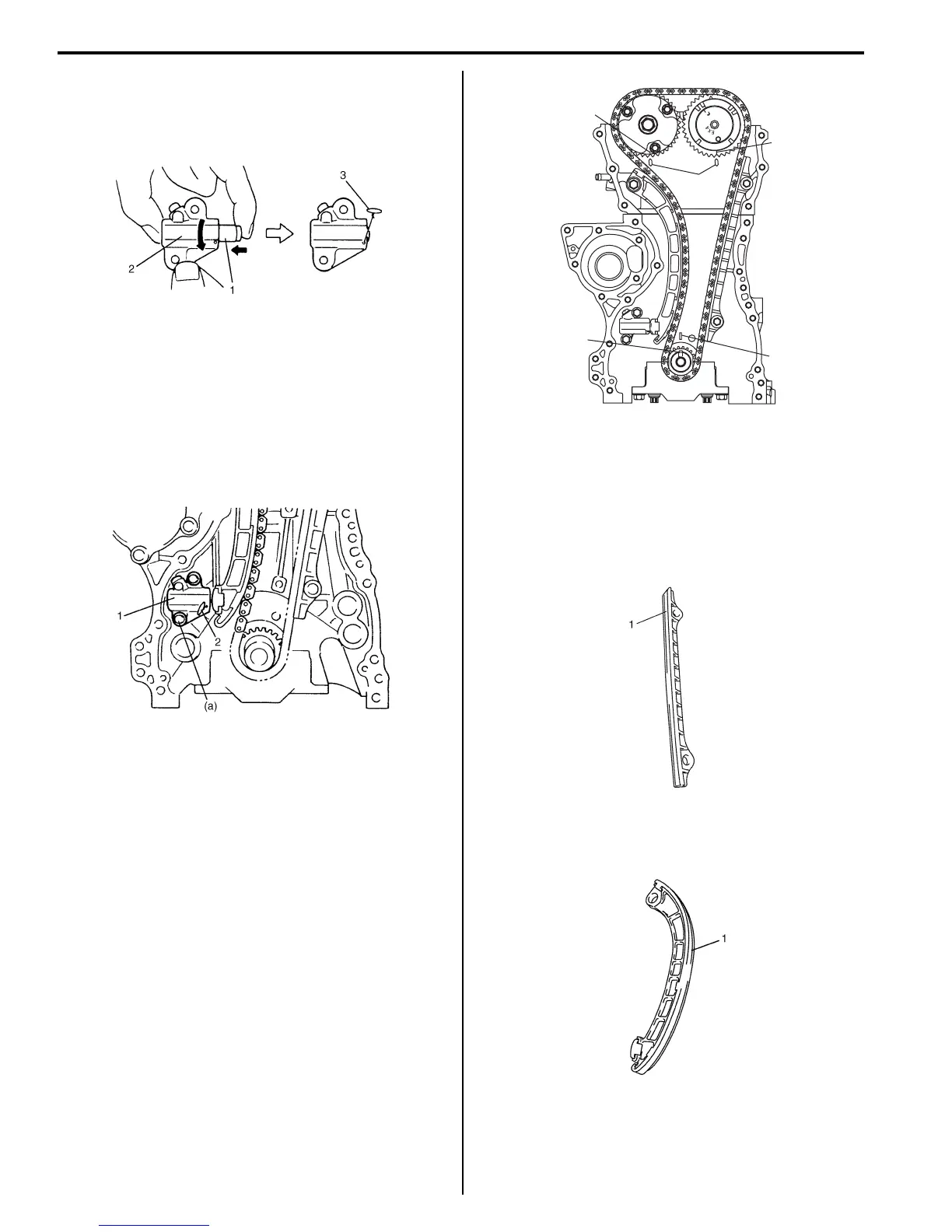

8) Screw in plunger (1) by turning body (2) in arrow
direction and install a retainer (3) (wire) to hold
plunger in place.
9) Install timing chain tensioner adjuster assembly (1)
with a retainer (2).
Tighten adjuster bolts to specified torque and then
remove a retainer from chain tensioner adjuster
assembly.
Tightening torque
Timing chain tensioner adjuster bolt (a): 11 N·m
(1.1 kgf-m, 8.0 lb-ft)
10) Apply engine oil to timing chain, and then turn
crankshaft clockwise by 2 revolutions and check that
match marks (1) are at the following specific
positions.
• Intake and exhaust camshaft timing sprockets
makes (1) are in match with notches (2) on
cylinder head.
• Crankshaft sprocket key (3) is in match with notch
of cylinder block (4).
• Crankshaft sprocket key (3) is on upside of
crankshaft as shown in figure.
11) Install timing chain cover referring to “Timing Chain
Cover Removal and Installation”.
Timing Chain and Chain Tensioner Inspection
S7RS0B1406019
Timing Chain No.1 Guide
Check shoe (1) for wear or damage.
Timing Chain Tensioner
Check shoe (1) for wear or damage.
I2RH0B140065-01
I2RH0B140066-01
1
1
2
3
4
I6RS0C140017-01
I2RH0B140068-01
I2RH0B140069-01
