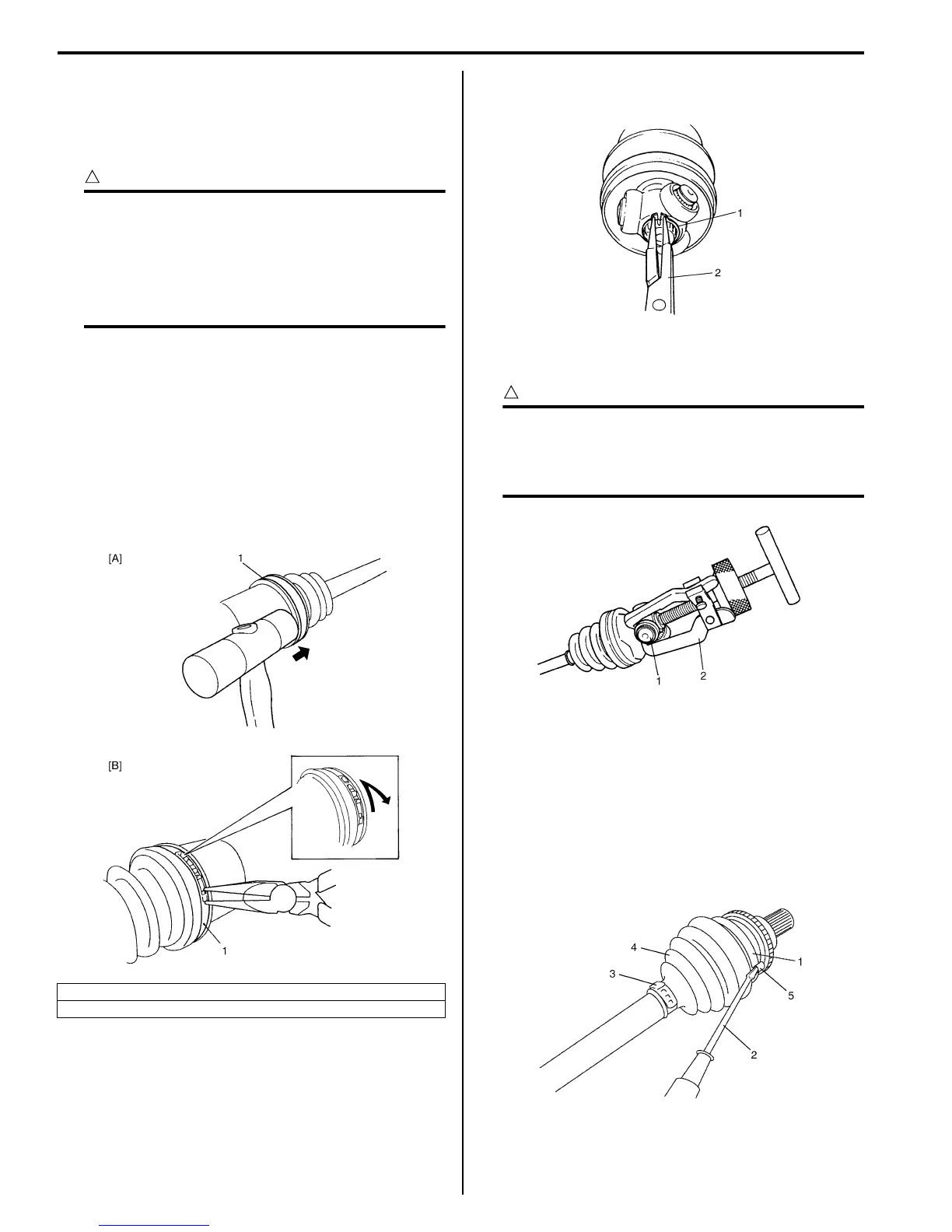

3A-6 Drive Shaft / Axle:
Front Drive Shaft Disassembly and Reassembly
S7RS0B3106004
Disassembly
Tripod joint
CAUTION
!
• Disassembly of wheel side joint is not
allowed. If any noise or damage exists in it,
replace it as assembly.
• Do not disassemble tripod joint spider. If
any malcondition is found in it, replace it
as differential side joint assembly.
1) Remove differential side (or center shaft side) boot
big band (1) as follows.
• For boot big band without joint:
Remove boot big band by tapping boot and band
with plastic hammer. If it is hard to remove boot
big band, cut it using a nipper or an iron saw with
care not to damage joint housing.
• For boot big band with joint:
Draw hooks of boot big band together and remove
band.
2) Wipe off grease from shaft and take off snap ring (1)
using snap ring pliers (2).
3) Remove tripod joint spider (1) using 3 arms puller
(2).
CAUTION
!
To prevent any problem caused by washing
solution, do not wash tripod joint except its
housing. Degreasing of tripod joint with cloth
is allowed.
4) Remove boot band as follows.
a) Remove differential side (or center shaft side)
boot small band, and then pull out differential
side (or center shaft side) boot from shaft.
b) Remove damper band, and then pull out damper
through shaft, if equipped.
c) Undo caulking (5) of wheel side boot big band (1)
and small band (3) using flat end rod (2) or the
like, then pull out wheel side boot (4) from shaft.
[A]: For boot big band without joint
[B]: For boot big band with joint
I4RH0A310004-01
I5JB0A311008-01
I3RH0A311004-01
I4RS0A310006-01
