2C-4 Rear Suspension:

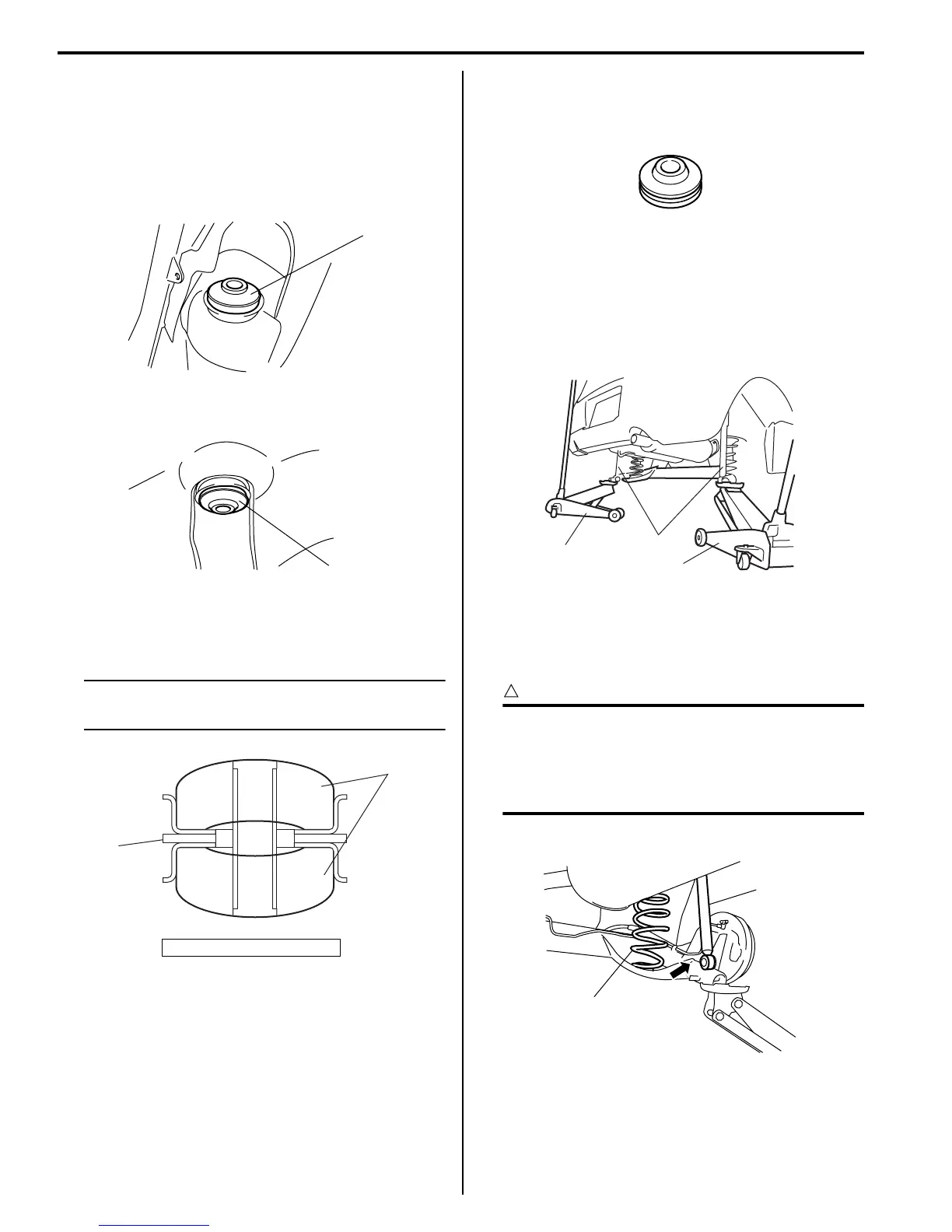

Rear Shock Absorber Bush Removal and
Installation
S7RS0B2306003
Removal
1) Remove rear shock absorber referring to “Rear
Shock Absorber Removal and Installation”.
2) Remove rear shock absorber bushes (1).
Installation
1) Install rear shock absorber bushes (1).
NOTE
For proper installing direction of shock
absorber bushes (1), refer to the figure.
2) Install rear shock absorber referring to “Rear Shock
Absorber Removal and Installation”.
Rear Shock Absorber Bush Inspection
S7RS0B2306004
Inspect for cracks, deformation or damage. Replace any
defective parts.
Rear Coil Spring Removal and Installation
S7RS0B2306005
Removal
1) Hoist vehicle and remove rear wheels.
2) Support rear axle (1) by using two floor jacks (2) to
prevent it from lowering.
3) Detach shock absorbers (1) lower side (right & left)
from rear axle.
4) Lower rear axle gradually as far down as the coil
spring (2) can be removed.
CAUTION
!
Be careful not to lower rear axle down too
much.
It may cause damage to brake flexible hose,
wheel speed sensor lead wire and parking
brake cable.
5) Remove coil spring (2).
2. Body panel
1
1
I4RS0A230006-01
1
2
I4RS0A230007-01
I4RS0A230008-01
1
2
2
I6RS0C230006-01
1
2
I4RS0A230010-01
