1A-100 Engine General Information and Diagnosis:
DTC P0222: Throttle / Pedal Position Sensor / Switch “B” (Sub) Circuit Low
S7RS0B1104037

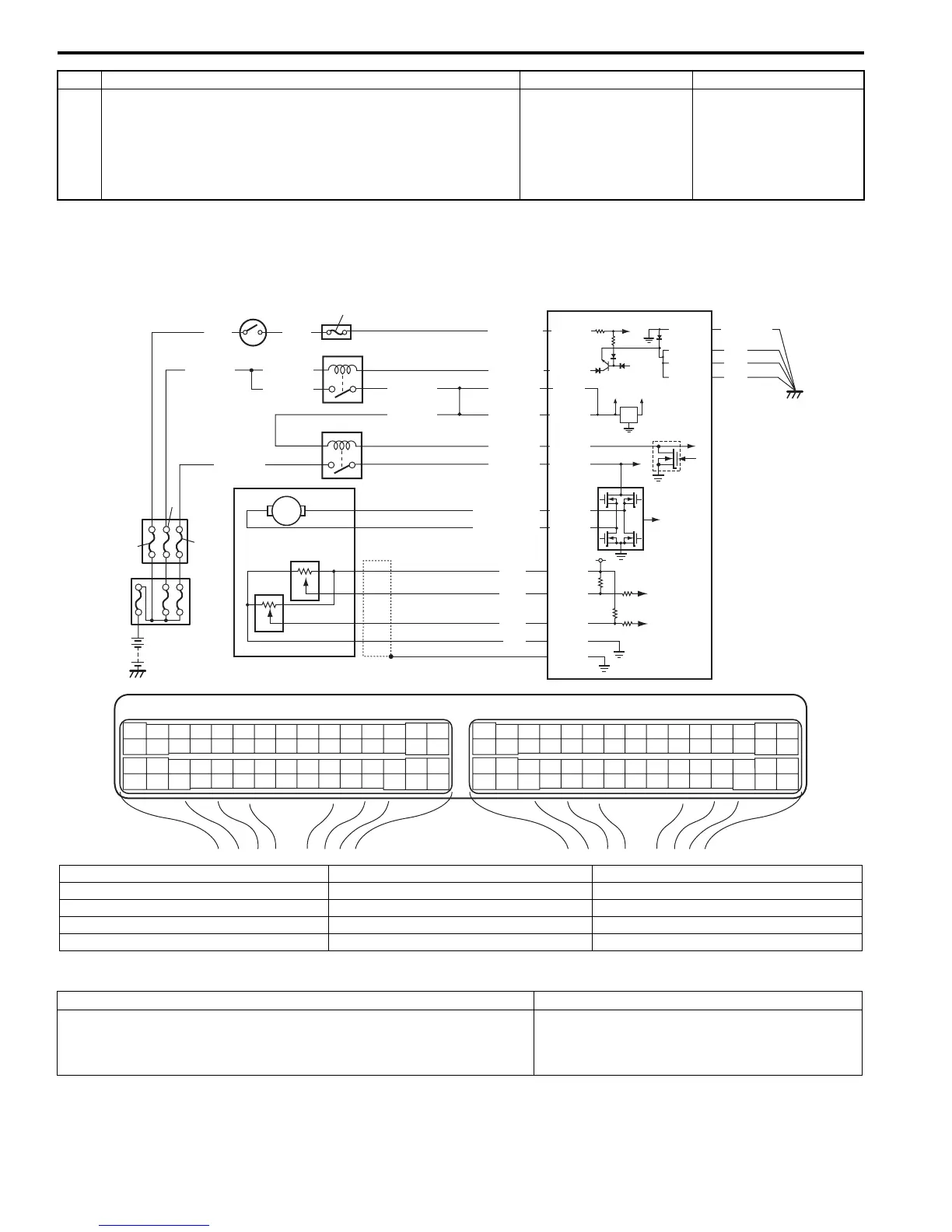

Wiring Diagram
DTC Detecting Condition and Trouble Area
9 HO2S-1 for performance check
1) Check HO2S-1 referring to Step 3 of “DTC P0131 /
P0132: O2 Sensor (HO2S) Circuit Low Voltage / High
Voltage (Sensor-1)”.
Is check result satisfactory?
Substitute a known-
good ECM and recheck.
Faulty HO2S-1 or its
circuit.
Step Action Yes No
E23 C37
34
1819
5671011
1720
47 46495051
2122
52
1625
9
24
14
29
5557 54 53
59
60 58
2
262728
15
30
56 48
32 31343536374042 39 38
44
45 43 41 33
11213
23
834
1819
5671011
1720
47 46495051
2122
52
1625
9
24
14
29
5557 54 53
59
60 58
2
262728
15
30
56 48
32 31343536374042 39 38
44
45 43 41 33
11213
23
8
12V
5V
BLK/REDBLK/RED
BLK/YEL
1
2
BLK/YEL
BLK/YEL
BRN/WHT
E23-1
E23-60
C37-58
C37-15
C37-30
BLK/ORN
BLK
BLK
E23-31
BLK
BLK/RED
BLU/ORN
RED/YEL
YEL/BLU
LT GRN/RED
LT GRN/BLK
RED
GRN
WHT
BLK
E23-16
E23-45
E23-32
C37-45
C37-44
C37-41
C37-42
C37-40
C37-54
C37-43
1-1
1-2
1-3
3
4
5
8
6
7
10
9
E23-29
GRN
BLK/WHT
WHT
BLK/RED
I6RS0C110015-01
1. Electric throttle body assembly 3. ECM 8. “IG ACC” fuse
1-1. Throttle actuator 4. Main relay 9. “IG COIL” fuse
1-2. TP sensor (main) 5. Individual circuit fuse box No.1 10. Ignition switch
1-3. TP sensor (sub) 6. “TH MOT” fuse
2. Throttle actuator control relay 7. “FI” fuse
DTC detecting condition Trouble area
Output voltage of throttle position sensor (sub) is less than specified
value for specified time continuously.
(1 driving detection logic)
• Throttle position sensor (sub) circuit
• Electric throttle body assembly
•ECM
