4E-7 ABS:

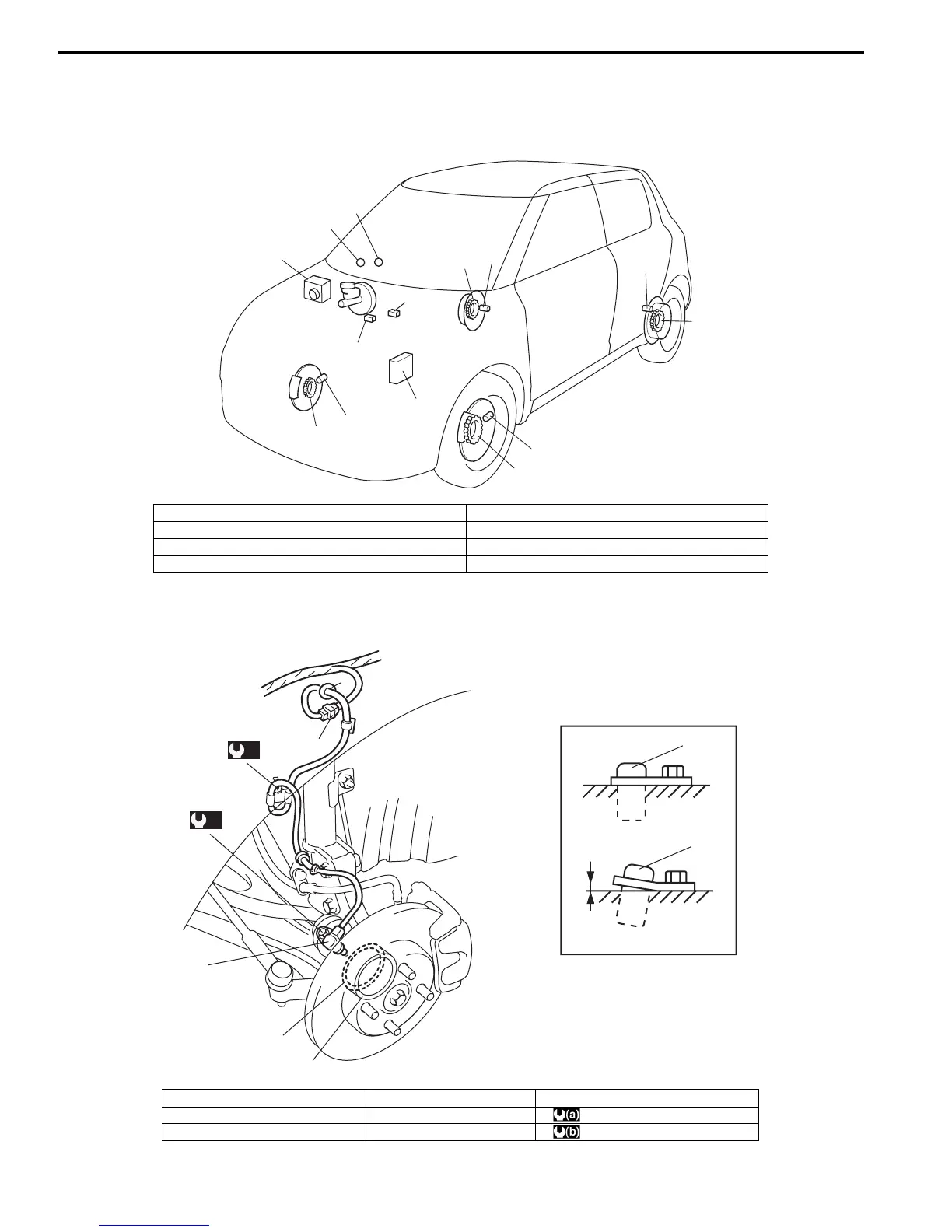

Component Location
ABS Components Location
S7RS0B4503001
Front Wheel Speed Sensor Components Location
S7RS0B4503002
1
4
5
3
2
2
2
2
6
6
6
6
7
8
I6RS0C450005-01
1. ABS hydraulic unit / control module assembly 5. EBD warning light (Brake warning light)
2. Wheel speed sensors 6. Wheel speed sensor rings
3. Stop lamp switch 7. Data link connector
4. ABS warning light 8. ECM
[A]
[B]
1
1
2
3
4
1
(a)
(b)
5
I6RS0C450016-01
[A]: OK 2. Grommet 5. Front wheel bearing
[B]: NG 3. Connector : 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
1. Front wheel speed sensor 4. Sensor ring : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
