7A-10 Heater and Ventilation:
Air Intake Control Actuator Inspection
S7RS0B7106013

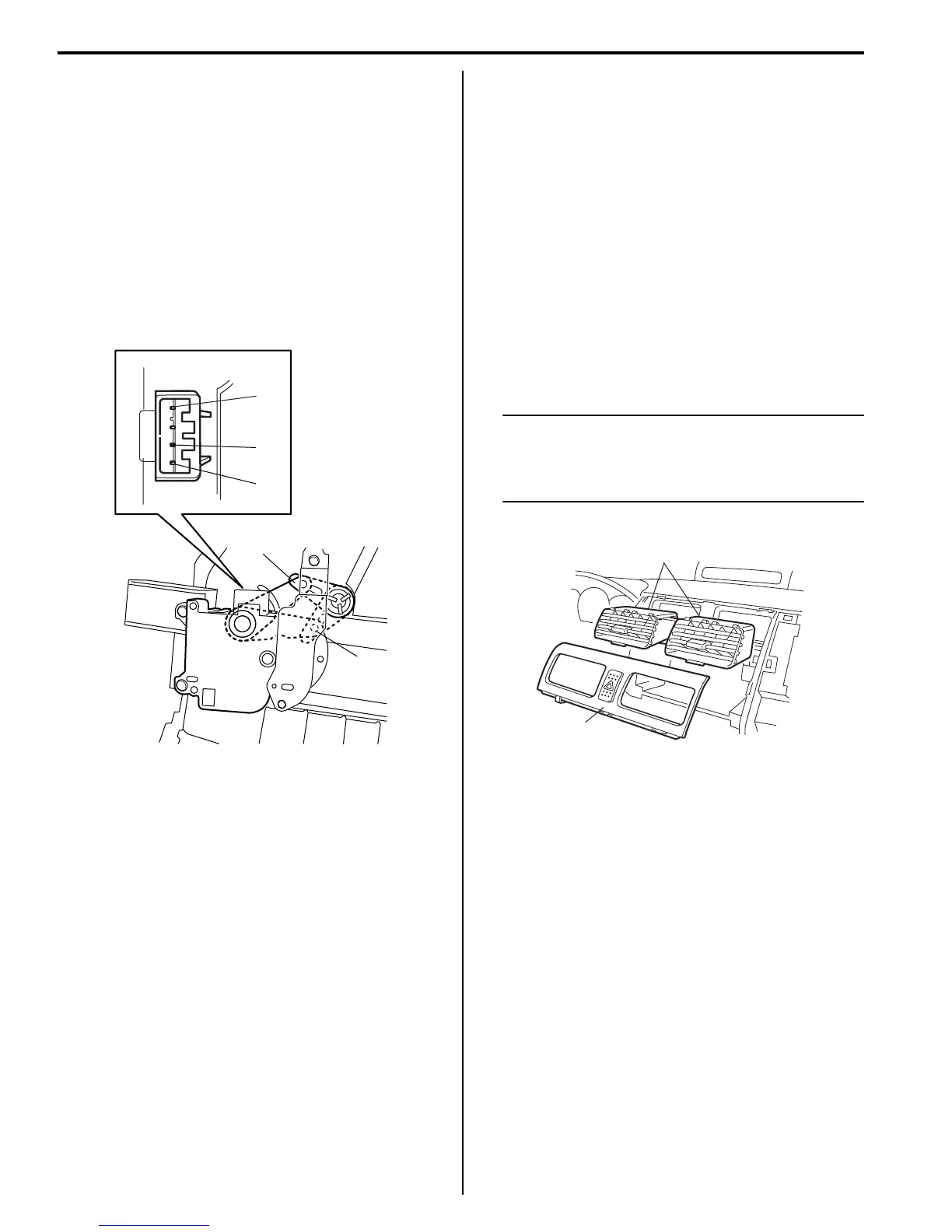

Check air intake control actuator as follows:
1) Using service wire, connect battery positive terminal
to “a” terminal and battery negative terminal to
terminal “b”. And, check if air intake selector link
operates smoothly and it stops at fresh position (1).
2) Using service wire, connect battery positive terminal
to “a” terminal and battery negative terminal to
terminal “c”. And, check if air intake selector link
operates smoothly and it stops at recirculation
position (2).
If malfunction is found, replace air intake control
actuator.
Center Ventilation Louver Removal and
Installation
S7RS0B7106014
Removal
1) Disconnect negative (–) cable from battery.
2) Disable air bag system referring to “Disabling Air
Bag System in Section 8B”.
3) Remove passenger air bag module from instrument
panel referring to “Passenger Air Bag (Inflator)
Module Removal and Installation in Section 8B”.
4) Remove radio assembly from instrument panel
referring to “Audio Unit Removal and Installation in
Section 9C”.
5) Remove center ventilation louver (1) with garnish (2)
from instrument panel, and then disconnect
connector from hazard switch.
NOTE
Garnish is fitted to instrument panel with six
clips. When removing garnish from
instrument panel, be careful not to break
them.
6) Separate center ventilation louver and garnish.
Installation
Reverse removal procedure.
a
b
c
1
2
I4RS0A710023-01
1
2
I4RS0B710017-01
