9F-6 Security and Locks:
Repair Instructions

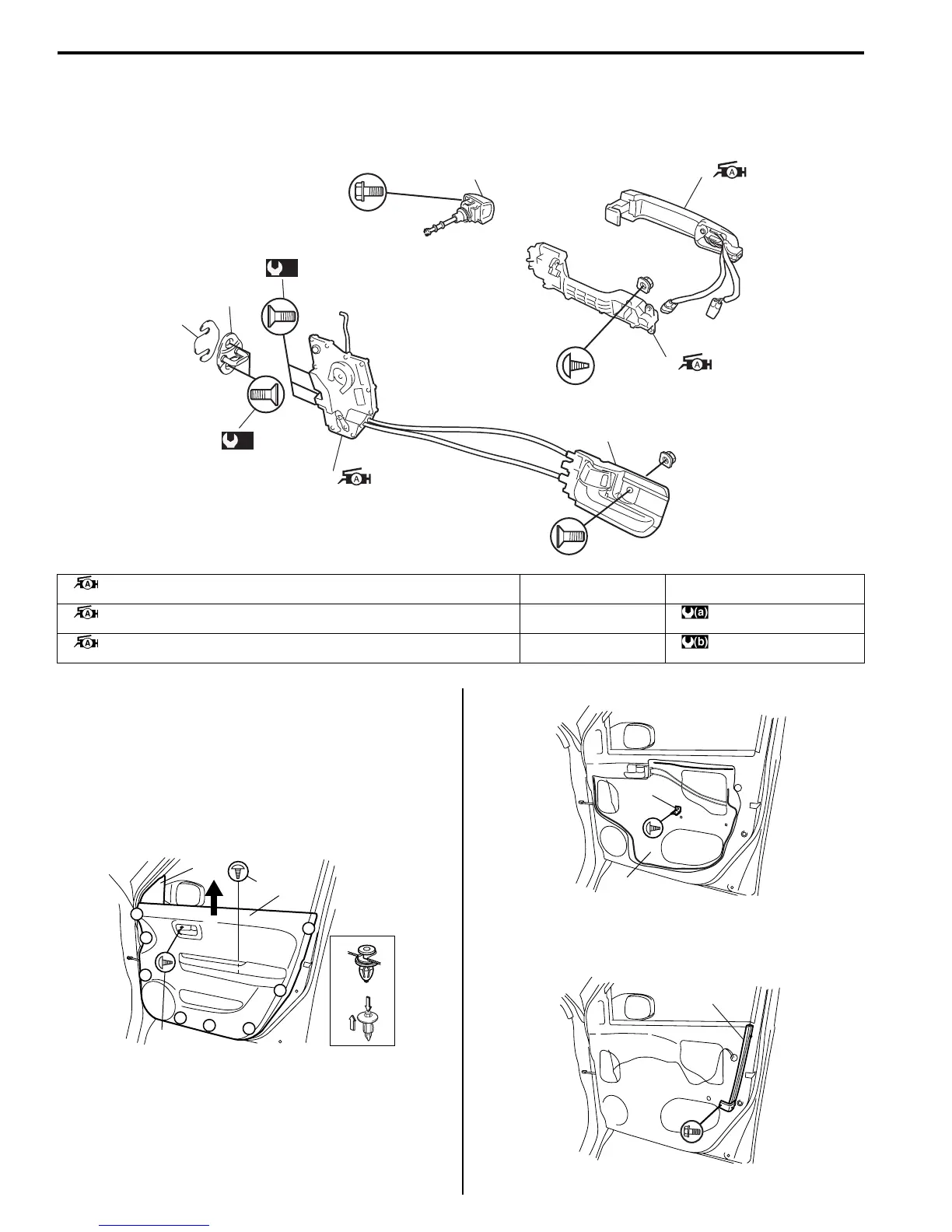

Front Door Lock Assembly Components
S7RS0B9606001
Front Door Lock Assembly Removal and
Installation
S7RS0B9606002
Removal
1) Remove door mirror trim (1).
2) Remove door trim (3) after removing screws (2) and
clips “A” and “B”.
3) Disconnect power window switch and mirror switch
lead wire at coupler.
4) Remove door trim bracket (1).
5) Remove door sealing cover (2).
6) Raise window all the way up.
7) Remove door sash (1).
(a)
(b)
6
3
7
1
4
5
2
I4RS0B960003-01
1. Front door latch assembly
: Apply lithium grease 99000-25010 to sliding and rotating parts and spring if any.
4. Latch striker 7. Inside handle bezel
2. Outside handle assembly
: Apply lithium grease 99000-25010 to sliding part.
5. Shim : 5.0 N⋅m
(0.5 kgf-m, 4.0 lb-ft)
3. Outside handle frame
: Apply lithium grease 99000-25010 to sliding part and spring.
6. Key cylinder : 10 N⋅m
(1.0 kgf-m, 7.5 lb-ft)
“B”
“A”
“B”
“A”
“B”
“A”
“A”
“A”
“A”
“A”
1
2
2
3
I4RS0A960003-01
1
2
I4RS0A960004-01
1
I4RS0A960007-01
