10E-22 Keyless Start System:
Keyless Start Control Module Power and Ground Circuit Check
S7RS0BA504016

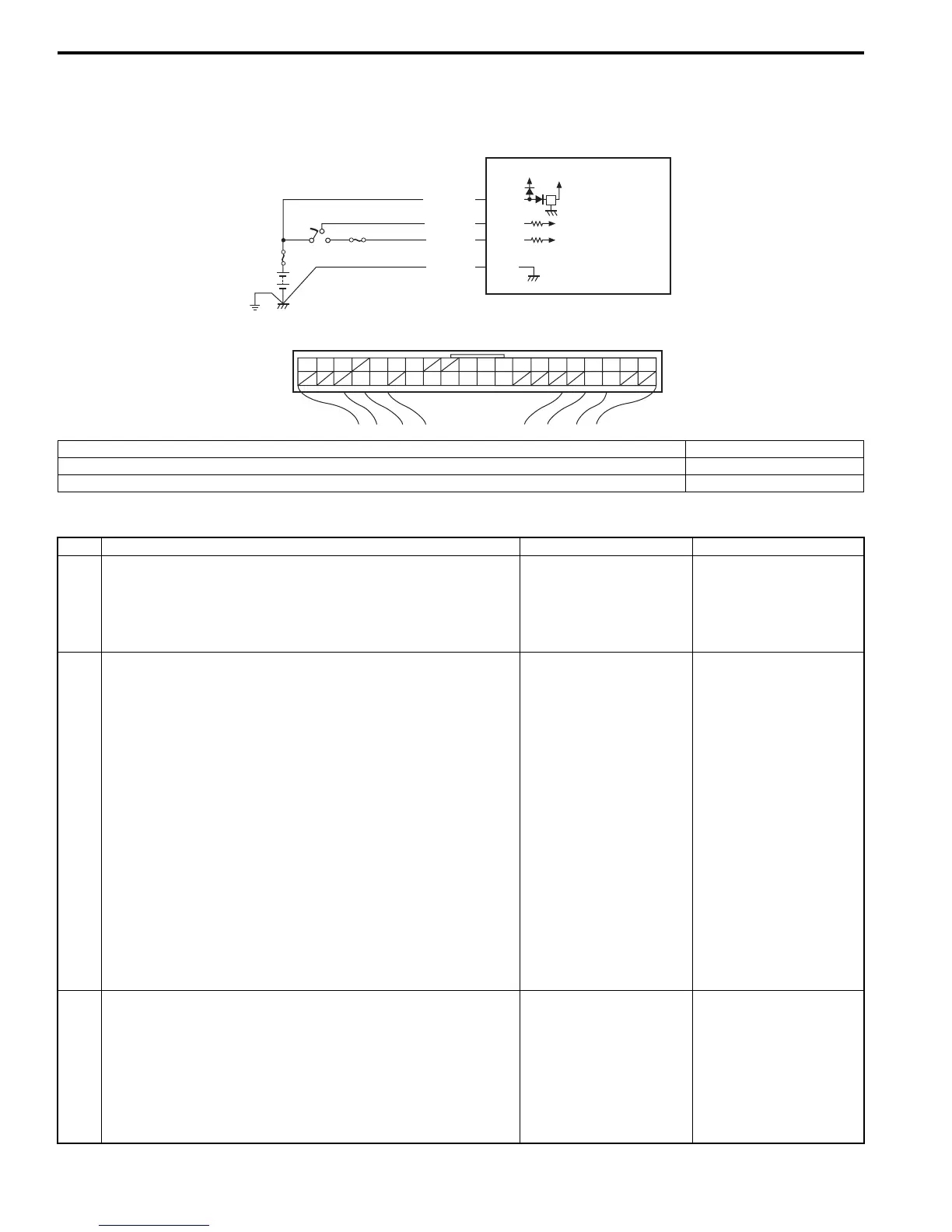

Wiring Diagram
Troubleshooting
BLK/ORN
G42-9
G42-15
G42-10
G42-11
BLU/WHT
WHT/RED
RED/BLK
5V
12V
1234567891011141516
36 34 33 32 31 30 29 24 2337
181920
[A]
4
2
3
1
I4RS0BA50022-01
[A]: Keyless start control module connector (viewed from harness side) 3. Circuit fuse
1. Keyless start control module 4. Main fuse
2. Ignition switch
Step Action Yes No
1 Fuse check
1) Turn ignition switch to OFF position.
2) Check circuit fuse and main fuse for condition.
Are fuses in good condition?
Go to Step 2. Replace fuse(s) and
check for short.
2 Power supply circuit check
1) Disconnect connector from keyless start control module.
2) Check for proper connection to “G42-10”, “G42-11” and
“G42-15” terminals of keyless start control module
connector.
3) If OK, measure voltage between the following terminals.
• When ignition switch is at OFF position
Between “G42-10” terminal of keyless start control
module connector and vehicle body ground: 10 – 14 V
• When ignition switch is at ACC position
Between “G42-11” terminal of keyless start control
module connector and vehicle body ground: 10 – 14 V
• When ignition switch is at ON position
Between “G42-15” terminal of keyless start control
module connector and vehicle body ground: 10 – 14 V
Is check result satisfactory?
Go to Step 3. Repair power supply
circuit.
3 Ground circuit check
1) Check for proper connection to “G42-9” terminal of
keyless start control module connector.
2) If OK, measure resistance between “G42-9” terminal of
keyless start control module connector and vehicle body
ground.
Is resistance 1
Ω
or less?
Power and ground
circuit is in good
condition.
Repair ground circuit.
