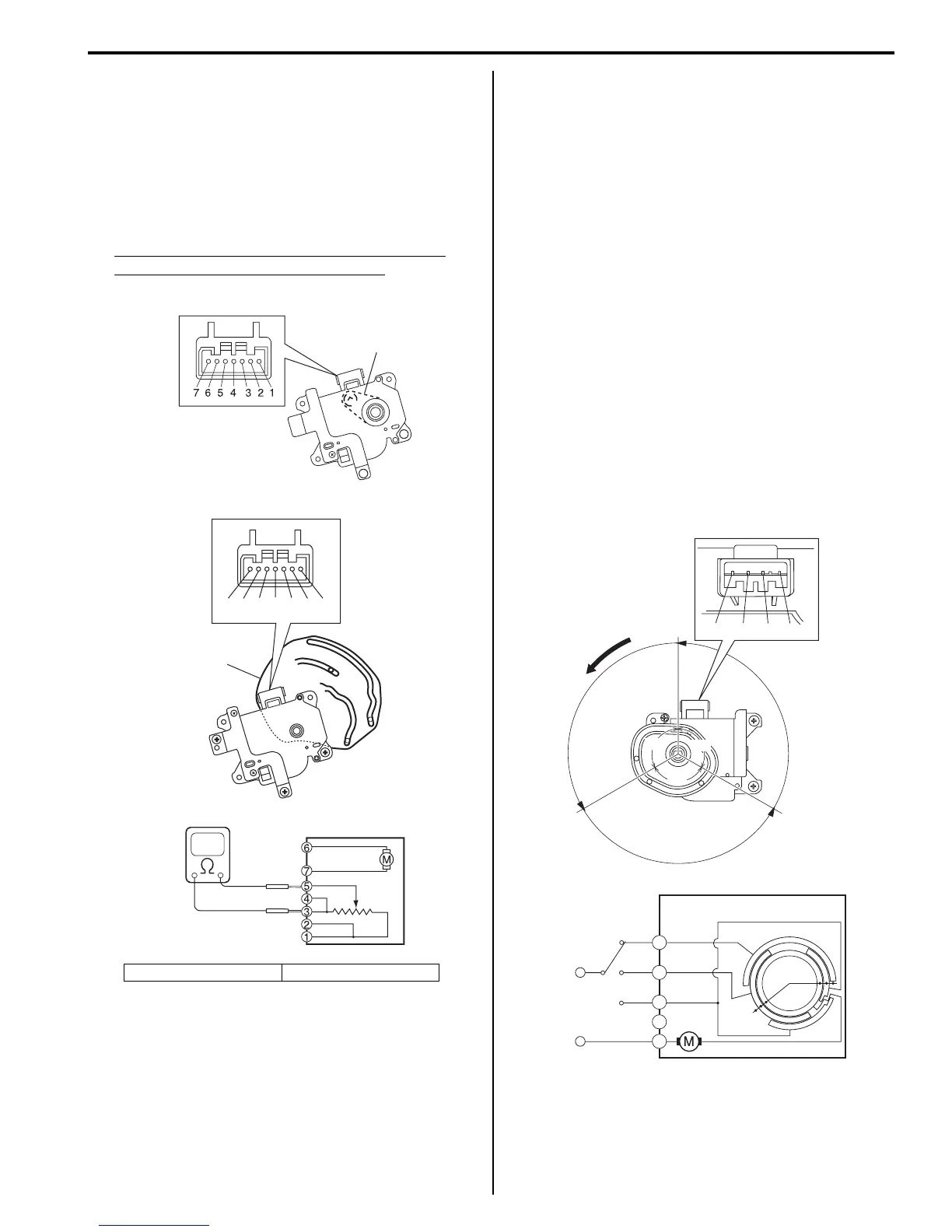

Air Conditioning System: Automatic Type 7B-75
6) Connect connector to air flow control actuator.
7) Set air flow selector of HVAC control module to
VENT position with ignition switch ON, and make
sure if the position of actuator lever is VENT position
(8).
8) Turn ignition switch OFF, and then disconnect
connector from air flow control actuator.
9) Measure resistance between terminal “3” and “5”.
Air flow control actuator resistance between
terminal “3” and “5” (VENT position)
Approximately 2.0 kΩ at 25°C (77°F)
If check result is not satisfactory, replace the actuator
with new one.
Air Intake Control Actuator Removal and
Installation
S7RS0B7226008
Refer to “Air Intake Control Actuator Removal and
Installation in Section 7A”.
Air Intake Control Actuator Inspection
S7RS0B7226009
Check air intake control actuator as follows:
1) Using service wire, connect battery positive terminal
to terminal “7” and battery negative terminal to
terminal “1”. And, check if air intake selector link
operates smoothly and it stops at “REC” position (A).
2) Using service wire, connect battery positive terminal
to terminal “7” and battery negative terminal to
terminal “5”. And, check if air intake selector link
operates smoothly and it stops at “MIX” position (B).
3) For auto A/C model, using service wire, connect
battery positive terminal to terminal “7” and battery
negative terminal to “3” terminal. And, check air
intake selector link operates smoothly and it stops at
“FRE” position (C).
If malfunction is found, replace air intake control
actuator.
[A]: LH steering vehicle [B]: RH steering vehicle
[A]
[B]
8
8
765 4 3 21
I5RS0C722005-02
A
C
B
“a”
“a”
“a”
-
+
A
C
B
“1” “3” “5” “7”
“1”
“3”
“5”
“7”
120
°
120
°
120
°
I7RS0A722002-01
