5B-8 Manual Transmission/Transaxle:

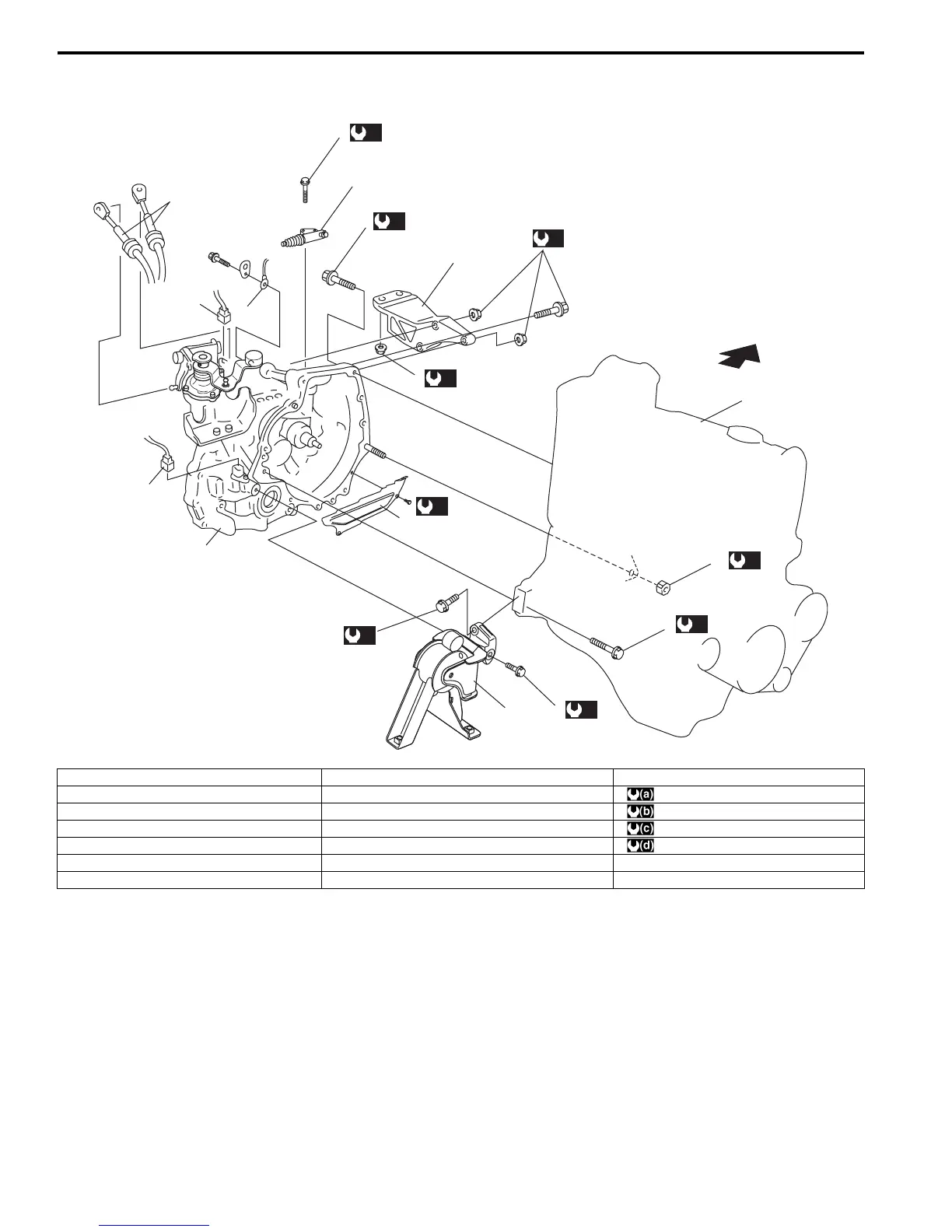

Manual Transaxle Unit Components
S7RS0B5206008
13
6
(a)
5
14
(c)
11
4
7
(b)
12
7
(b)
8
2
5
[A]
1
10
6
(a)
(a)
(b)
3
9
9
(b)
(d)
I6RS0C520004-03
[A]: Forward 7. Engine left mounting bracket bolt and nuts 14. Clutch operating cylinder bolt
1. Engine 8. Clutch housing lower plate : 85 N⋅m (8.5 kgf-m, 61.5 lb-ft)
2. Transaxle 9. Engine rear mounting bracket bolts : 55 N⋅m (5.5 kgf-m, 40.0 lb-ft)
3. Engine rear mounting and bracket 10. Transaxle to engine nut : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
4. Back up light switch connector 11. Ground cable : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
5. Clutch operating cylinder 12. Engine left mounting bracket
6. Transaxle to engine bolt 13. Gear shift & select control cables
