5A-6 Automatic Transmission/Transaxle:

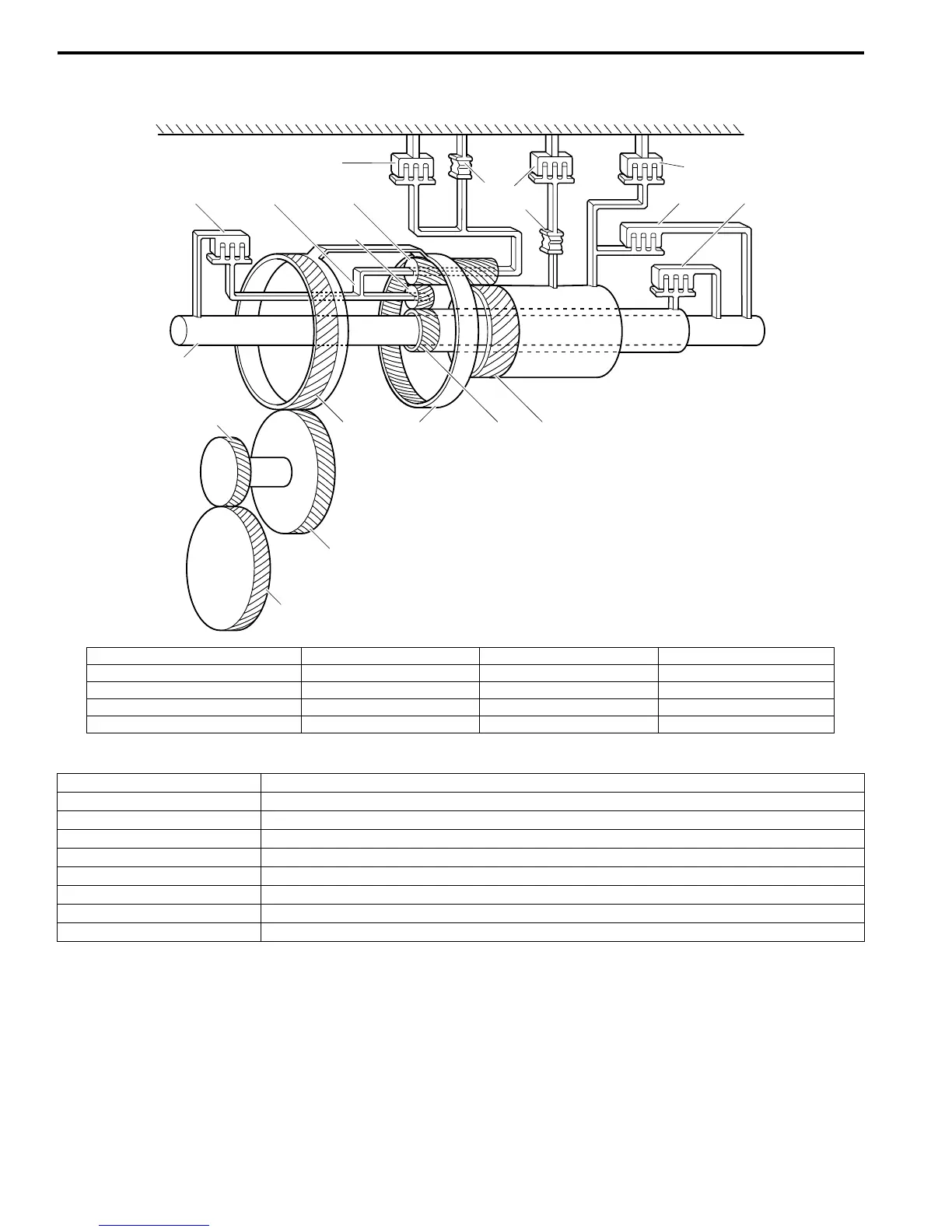

Clutch / Brake / Planetary Gear Function of Automatic Transaxle
S7RS0B5101002
Functions
1
2
4
3
5
6
7
8
9
10
11
12
13
14
15 16
17
18
19
I4RS0A510001-01
1. Input shaft and intermediate shaft 6. Long planet pinion 11. O/D and 2nd coast brake 16. Rear sun gear
2. Direct clutch 7. 1st and reverse brake 12. Reverse clutch 17. Final drive gear
3. Reduction drive gear 8. One-way No.2 clutch 13. Forward clutch 18. Reduction driven gear
4. Planet carrier 9. 2nd brake 14. Ring gear 19. Final driven gear
5. Short planet pinion 10. One-way No.1 clutch 15. Front sun gear
Part name Function
Forward clutch Meshes intermediate shaft and front sun gear
Direct clutch Meshes input shaft and planet carrier
Reverse clutch Meshes intermediate shaft and rear sun gear
O/D and 2nd coast brake Fixes rear sun gear
2nd brake Fixes rear sun gear
1st and reverse brake Fixes planet carrier
One-way No.1 clutch Prevents rear sun gear from turning counterclockwise
One-way No.2 clutch Prevents planet carrier from turning counterclockwise
