5A-106 Automatic Transmission/Transaxle:
Automatic Transaxle Unit Dismounting and
Remounting
S7RS0B5106031
Dismounting
1) Take down transaxle with engine. For its procedure,
refer to “Engine Assembly Removal and Installation
in Section 1D”.

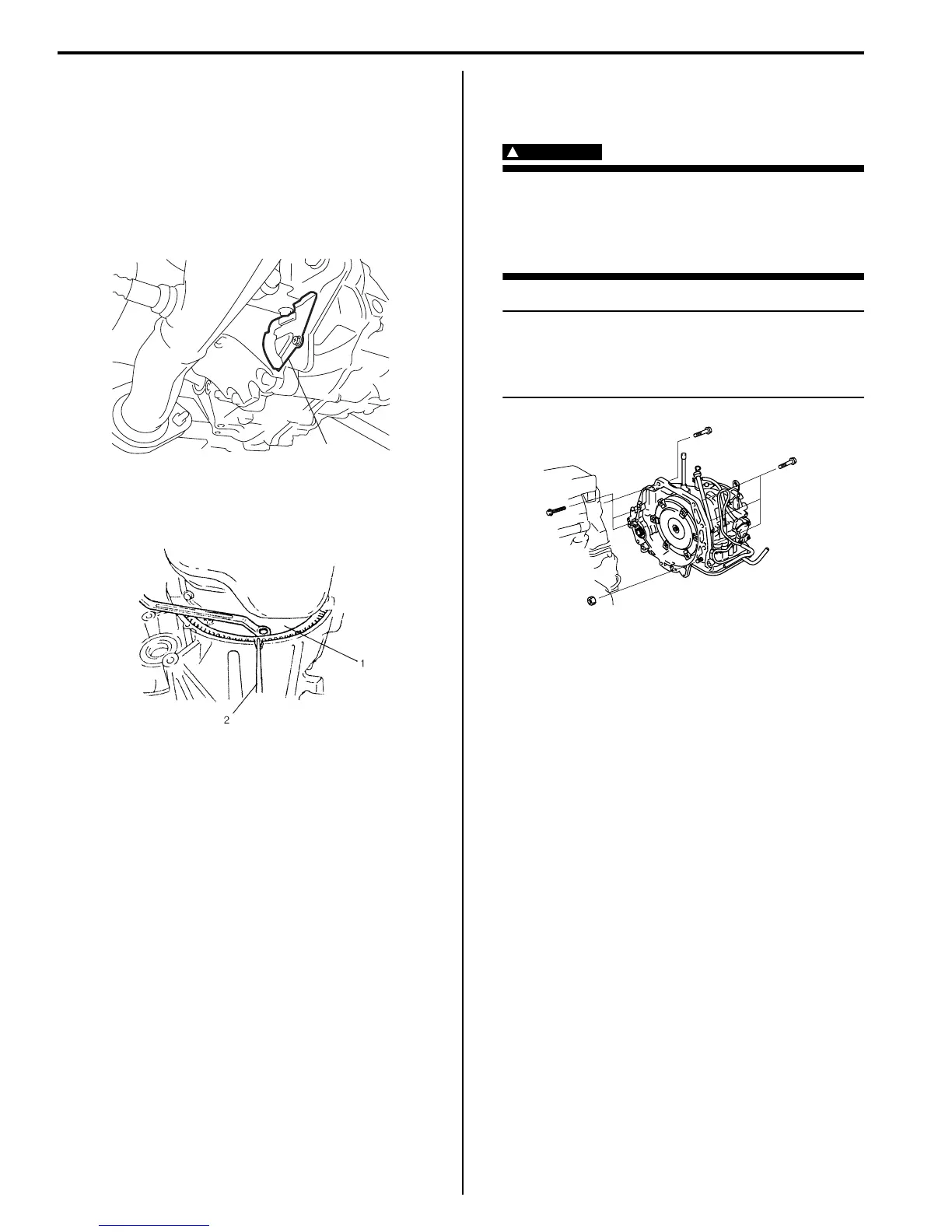

2) Remove transaxle housing lower plates (1).
3) Remove drive plate to torque converter bolts (1)
engage flat head rod or the like (2) with drive plate
ring gear.
4) Remove starting motor.
5) Remove bolts and nut fastening engine and
transaxle, then detach transaxle from engine.
WARNING
!
Be sure to keep transaxle with torque
converter horizontal or facing up throughout
the work. Should it be tilted with torque
converter down, converter may fall off and
cause personal injury.
NOTE
When detaching transaxle from engine, move
it in parallel with crankshaft and use care so
as not to apply excessive force to drive plate
and torque converter.
1
I4RS0A150004-01
I3RM0B510047-01
I3RM0B510049-01
