Parking Brake: 4D-4
Installation
1) Install in reverse order of removal procedure.
Check equalizer inclined angle.
Tightening torque

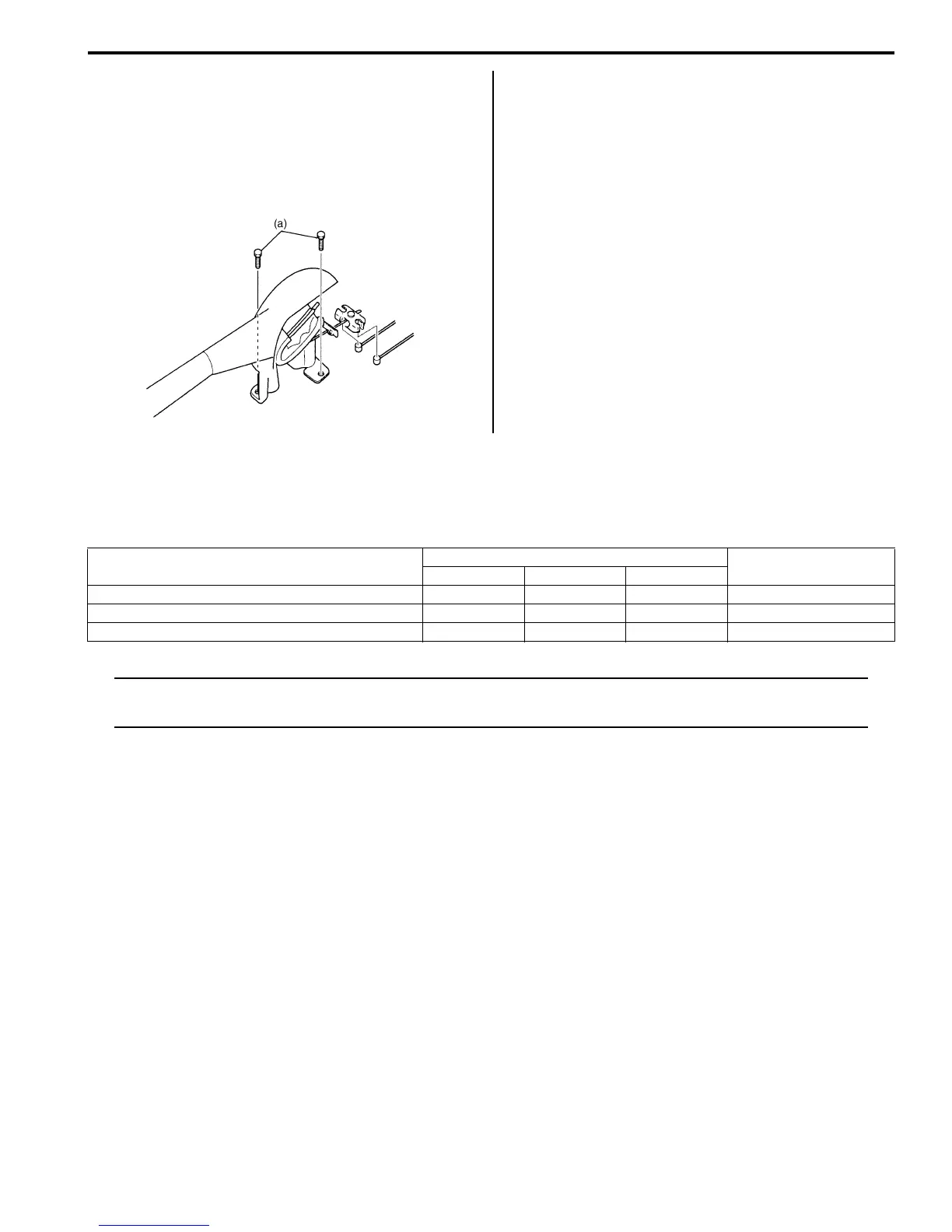

Parking brake lever bolt (a): 25 N·m (2.5 kgf-m,
18.0 lb-ft)
2) After all parts are installed, parking brake lever
needs to be adjusted. Refer to “Parking Brake
Inspection and Adjustment”.
3) Check brake drum or disc for dragging and brake
system for proper performance. After removing
vehicle from hoist, brake test should be performed.
Specifications
Tightening Torque Specifications
S7RS0B4407001
NOTE
The specified tightening torque is also described in the following.
“Parking Brake Cable Construction”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Fasteners Information in Section 0A”.
I4RS0A440006-01
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Parking brake lever bolt 25 2.5 18.0 ) / )
Parking cable clamp bolt 11 1.1 8.0 )
Parking cable bracket bolt 25 2.5 18.0 )
To Next Page
