Air Conditioning System: Manual Type 7B-23

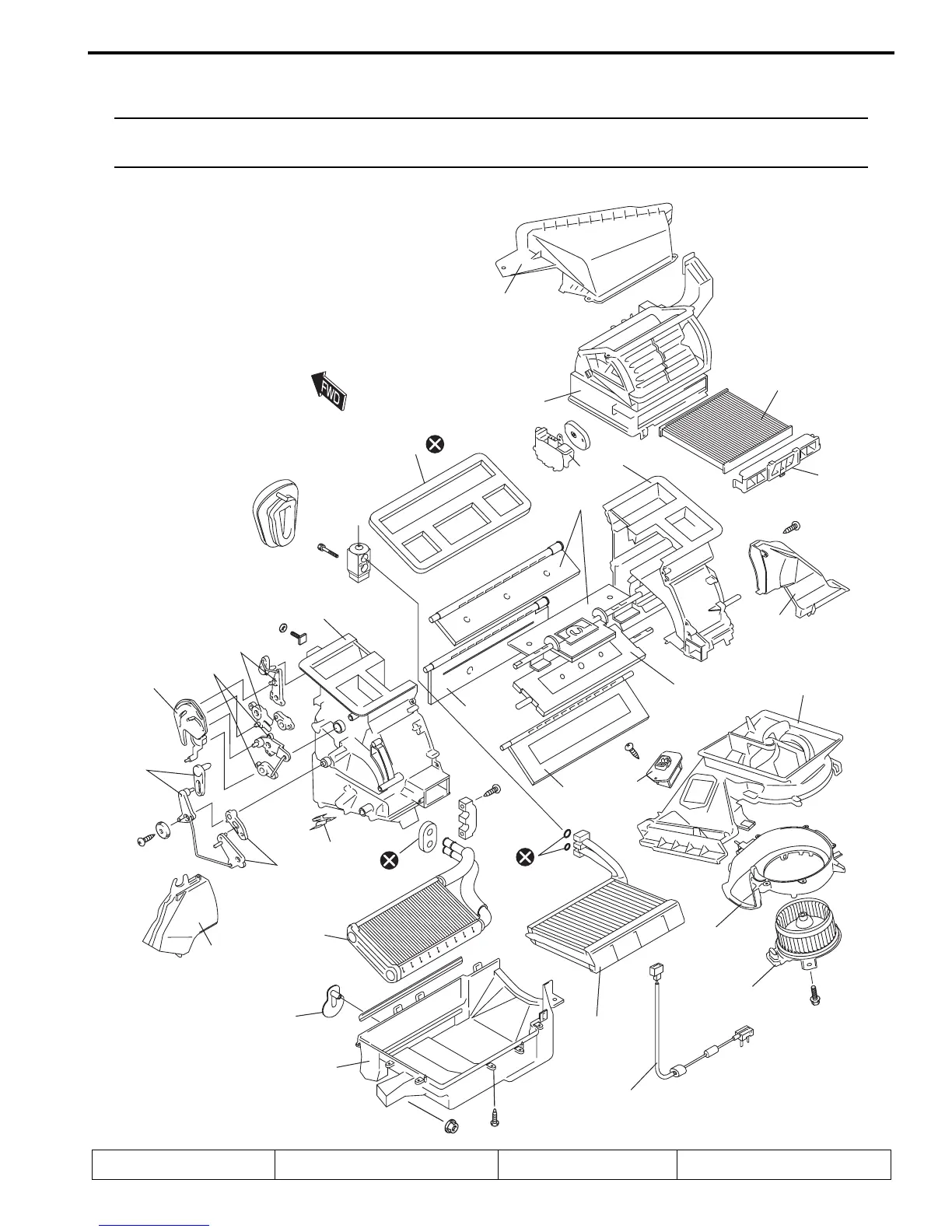

HVAC Unit Components
S7RS0B7216005
NOTE
The figure shows left-hand steering vehicle. For right-hand steering vehicle, parts with (*) are installed
at the opposite side
10 *
2 *
6
7
1 *
4 *
2 *
5
7
8
8
17
16
18
19
15 *
15 *
15 *
14 *
6
14 *
12
11 *
21 *
20
23
20
22
9 *
13
3 *
5
I5RS0C721007-01
1. Fresh air inlet duct 7. Airflow control door assembly 13. Heater core 19. Evaporator thermistor
(evaporator temperature sensor)
