10E-30 Keyless Start System:

Repair Instructions

Antennas and Request Switches Removal and Installation

S7RS0BA506001

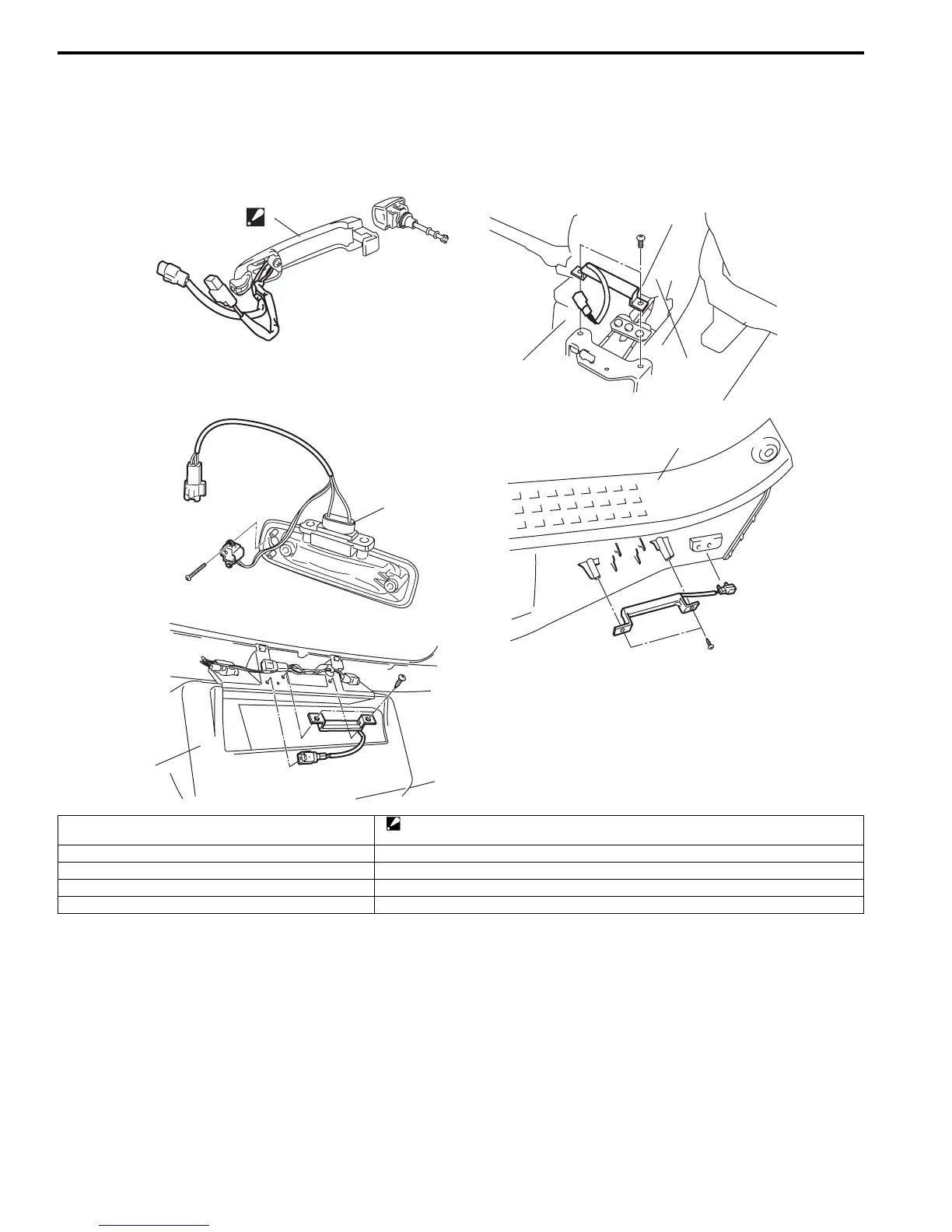

Remove and install antennas and request switches referring to the following figures.

[A]

[B]

[D]

[C]

[E]

I4RS0BA50027-04

[A]: Front door antenna and request switch

(included in outside door handle assembly)

1. Outside handle assembly

: Antenna and request switch can not be removed from outside door handle assembly

[B]: Rear end door opener and request switch assembly 2. Rear end opener and request switch

[C]: Rear end door antenna 3. Rear bumper (viewed from inside)

[D]: Center antenna 4. Parking brake lever

[E]: Luggage room antenna 5. Tail end member trim
