8B-60 Air Bag System:
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.
DTC B1053 / B1057: Driver / Passenger Pretensioner Initiator Circuit Short to Ground
S7RS0B8204028

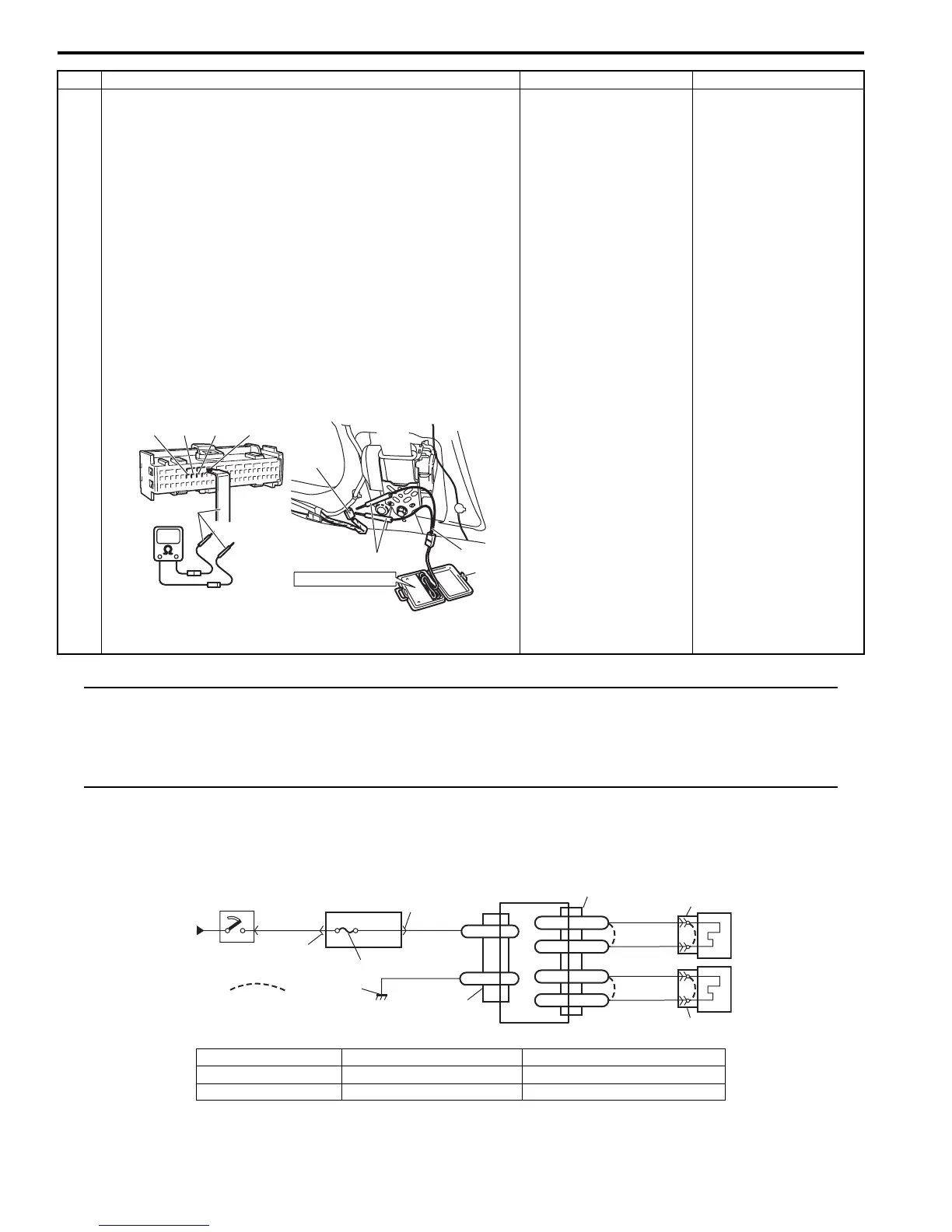

Wiring Diagram
2 1) With ignition switch OFF, disconnect SDM connector
“29”.
2) Check proper connection to SDM at terminals in “L29-7”
and “L29-8” (for DTC B1052) or “L29-9” and “L29-10”
(for DTC B1056).
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
4) If OK, then measure resistance between “L29-7” and
“L29-8” terminals (for DTC B1052) or “L29-9” and “L29-
10” terminals (for DTC B1056) with connected special
tools (B) and (C).
Special tool
(A): 09932-76010
(B): 09932-75010
(C): 09932–78310
Is resistance 1.8
Ω or more?
Substitute a known-
good SDM and recheck.
DTC B1052: “GRN/
ORN” circuit shorted to
“GRN/YEL” circuit,
“GRN/ORN” circuit or
“GRN/YEL” circuit
shorted to other circuit.
DTC B1056: “BLU/
ORN” circuit shorted to
“BLU/YEL” circuit, “BLU/
ORN” circuit or “BLU/
YEL” circuit shorted to
other circuit.
Step Action Yes No
(A)
"L29-8""L29-9" "L29-10""L29-7"
STEERING WHEEL
(B)
(C)
(A)
"L10", "L36"
I7RS0A820017-03
1
2
3
GRN
RED
8
BLK
L29-27
L29-28
IG
E1
4
“L29”
“L04”
“G32”
“L29”
L29-8
DP+
L29-7
DP-
GRN/YEL
GRN/ORN
5
6
“L10”
L29-9
PP+
L29-10
PP-
BLU/YEL
BLU/ORN
7
“L36”
[A]
I7RS0A820016-05
[A]: Shorting bar 3. “A/BAG” fuse 6. Driver seat belt pretensioner
1. From main fuse 4. Junction block assembly 7. Passenger seat belt pretensioner
2. Ignition switch 5. SDM 8. Ground for air bag system
