Lighting Systems: 9B-9

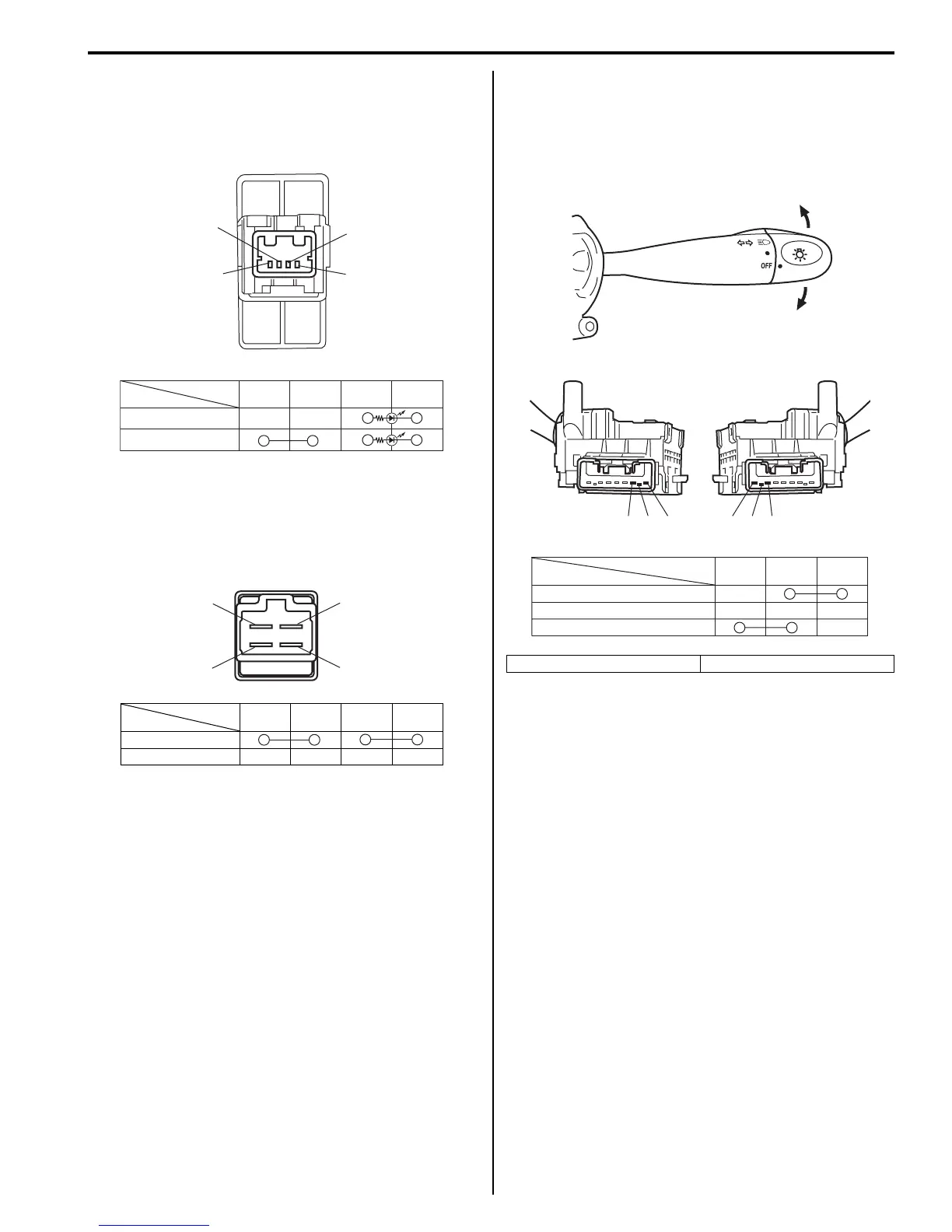

Hazard Warning Switch Inspection
S7RS0B9206007
Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.
Brake Light Switch Inspection
S7RS0B9206008
Check brake light switch for continuity between terminals
at each switch position.
If check result is not as specified, replace switch.
Turn Signal Light Switch (in Lighting Switch)
Removal and Installation
S7RS0B9206009
For removal and Installation, refer to “Headlight Switch
(in Lighting Switch) Removal and Installation”.
Turn Signal Light Switch (in Lighting Switch)
Inspection
S7RS0B9206010
Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.
Turn Signal and Hazard Warning Relay Removal
and Installation
S7RS0B9206011
Removal
1) Disconnect negative (–) cable at battery.
2) Remove junction block assembly referring to “BCM
(Included in Junction Block Assembly) Removal and
Installation in Section 10B”.
3) Remove turn signal and hazard warning relay.
Installation
Reverse removal procedure for installation.
Terminal
Shaft condition
OFF
ON
12 3 4
1
2
3
4
I4RS0A920011-02
4
2
3
1
Terminal
Shaft condition
FREE
PUSH
12 3 4
I4RS0A920012-01
[A]: LH steering vehicle [B]: RH steering vehicle
L
R
Terminal
Turn signal SW
312
L
N
R
123
123
[A] [B]
I5RS0D920006-01
