Engine General Information and Diagnosis: 1A-7
CAN Communication System Description
S7RS0B1101005
The following control modules and sensors communicate each other.
•ECM (2)
•TCM (1)
•BCM (4)
• ABS control module (3) or ESP® control module (7)
• Combination meter (5)
• Keyless start control module (6)
• Steering angle sensor (ESP® model) (8)

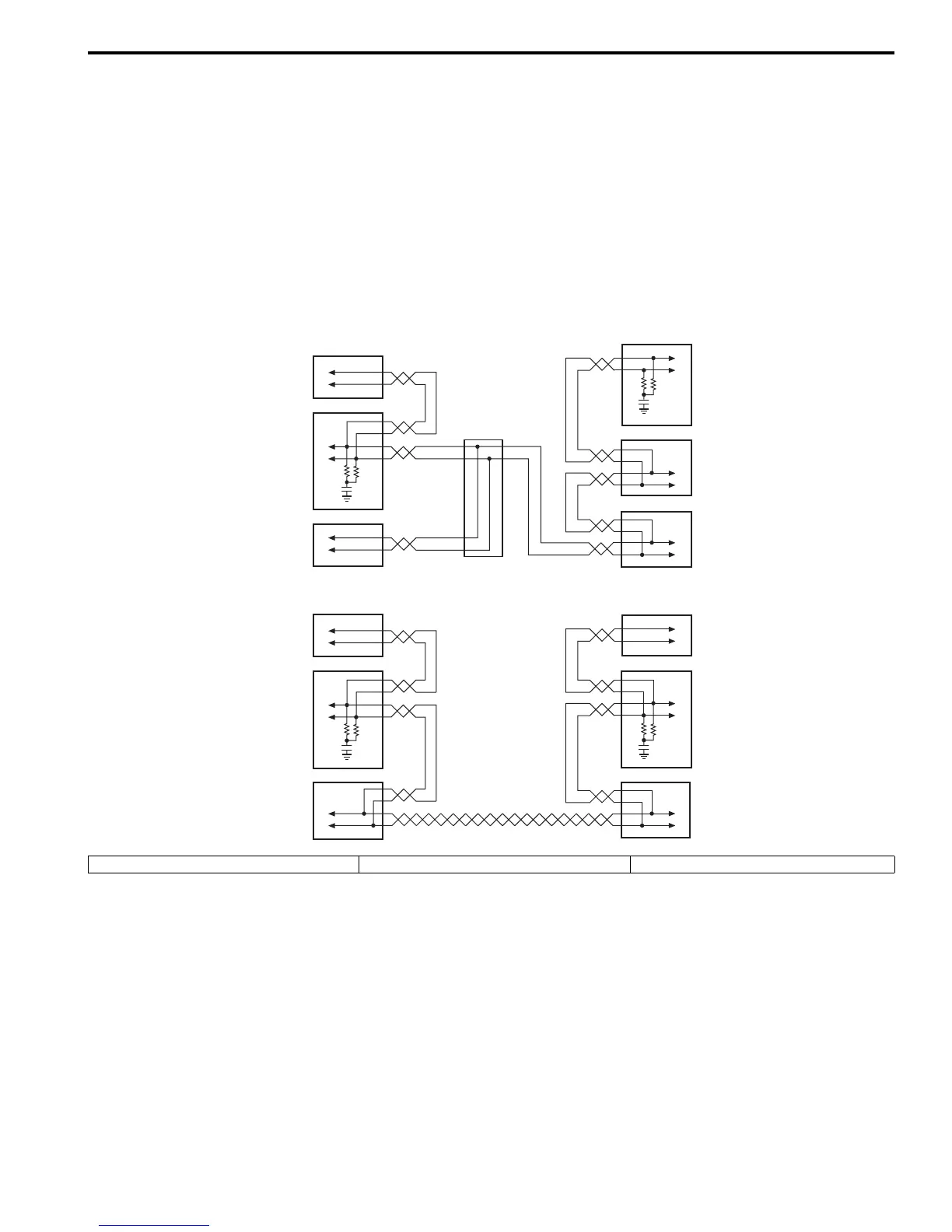

Communication of each control module and sensor is established by CAN (Controller Area Network) communication
system.
1
2
3
6
5
4
2
7
4
6
5
8
9
[A]
[B]
I7RS0B110001-01
[A]: ESP® model [B]: Non-ESP® model 9. CAN junction connector
