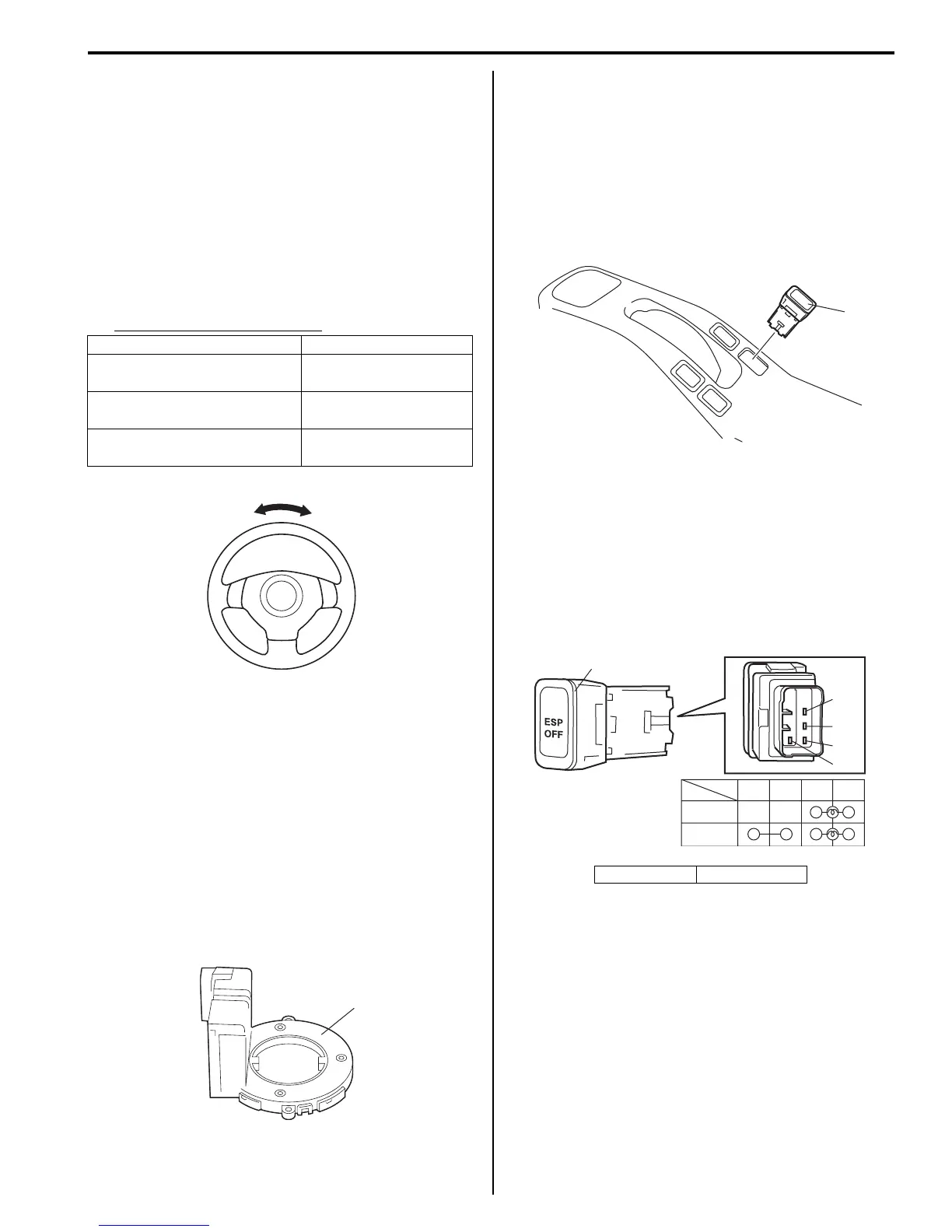

Electronic Stability Program: 4F-65
2) Turn ignition switch to ON position and select menu
“DATA LIST” mode of SUZUKI scan tool.
Refer to scan tool operator's manual for further
derails.
3) Check “Steering angle Sen” under “DATA LIST” of
SUZUKI scan tool in the following steering wheel
conditions.
• Front wheels in straight-ahead position
• Rotate steering wheel a round in clockwise
(counter clockwise) from straight-ahead position
If steering angle condition is out of specification,
replace steering angle sensor.
Steering angle Specification
Steering Angle Sensor Removal and Installation
S7RS0B4606021
Refer to “Steering Angle Sensor Removal and
Installation in Section 6B”.
Steering Angle Sensor Inspection
S7RS0B4606022
• Check sensor for dents, cracks or deformation.
• Check sensor connector (sensor side and harness
side) and sensor connector lock mechanism for
damage or crack.
• Check connector terminals for bend, corrosion or rust.
If it is found faulty, replace steering angle sensor (1).
ESP® OFF Switch Removal and Installation
S7RS0B4606023
Removal
1) Disconnect negative (–) cable at battery.
2) Remove rear console box referring to “Console Box
Components in Section 9H”.
3) Disconnect ESP® OFF switch coupler.
4) Remove ESP® OFF switch (1) from rear console
box (2).
Installation
Reverse removal procedure.
ESP® OFF Switch Inspection
S7RS0B4606024
Check for continuity between terminals at each switch
position.
If check result is not as specified, replace ESP® OFF
switch.
Vehicle condition Steering angle
Front wheels in straight-
ahead position
0 ± 3°
Rotate steering wheel a
round in clockwise
360 ± 3°
Rotate steering wheel a
round in counterclockwise
–360 ± 3°
I6JB01460032-01
1
I6JB01460033-01
[A]: Free [B]: Push
1
I6RS0B460042-02
[A]
[B]
2345
2
3
4
1
5
I6RS0B460043-02
