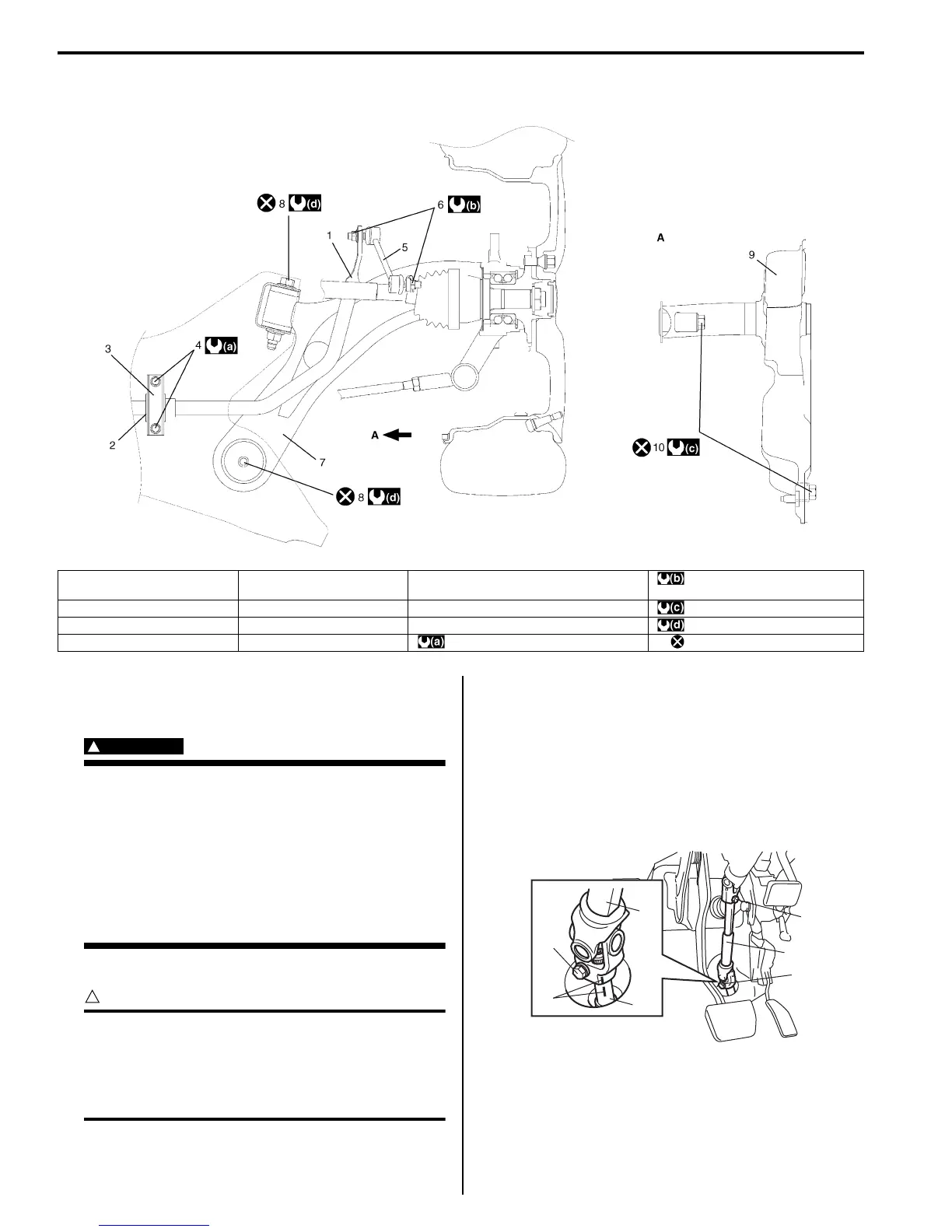

2B-15 Front Suspension:

Front Suspension Frame, Stabilizer Bar and/or Bushings Components

S7RS0B2206014

Front Suspension Frame, Stabilizer Bar and/or

Bushings Removal and Installation

S7RS0B2206015

WARNING

Do not touch exhaust system to avoid danger

of being burned when it is still hot.

Any service on exhaust system should be

performed when it is cool.

When removing front suspension frame, be

sure to apply some supporting equipment

(such as mission jack) under it at well-

balanced position in the center section so as

to prevent from its drop.

Removal

CAUTION

Be sure to set front wheels (tires) in straight

direction and remove ignition key from key

cylinder before performing the following

steps; otherwise, contact coil of air bag

system may get damaged.

1) Remove steering joint cover.

2) Make alignment marks (1) on pinion shaft (2) and

joint of steering lower shaft (3) for a guide during

reinstallation.

3) Loosen joint bolt (steering column side) (4) and

remove joint bolt (pinion shaft side) (5) and

disconnect steering lower shaft (3) from pinion shaft

(2).

I6RS0C220016-01

A: View A 4. Stabilizer bar mounting

bracket bolt

8. Suspension control arm mounting bolt : 50 N⋅m (5.0 kgf-m, 36.5 lb-ft)

1. Stabilizer bar 5. Stabilizer joint 9. Front suspension frame : 150 N⋅m (15.0 kgf-m, 108.5 lb-ft)

2. Stabilizer bushing 6. Stabilizer joint nut 10. Front suspension frame mounting bolt : 95 N⋅m (9.5 kgf-m, 68.0 lb-ft)

3. Stabilizer mounting bracket 7. Suspension control arm : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft) : Do not reuse.

I4RS0B630013-01
