Suzuki Swift Sport 2004 User Manual

Instrumentation / Driver Info. / Horn: 9C-14
Navigation Symptom Diagnosis (If Equipped)
S7RS0B9304019
Repair Instructions

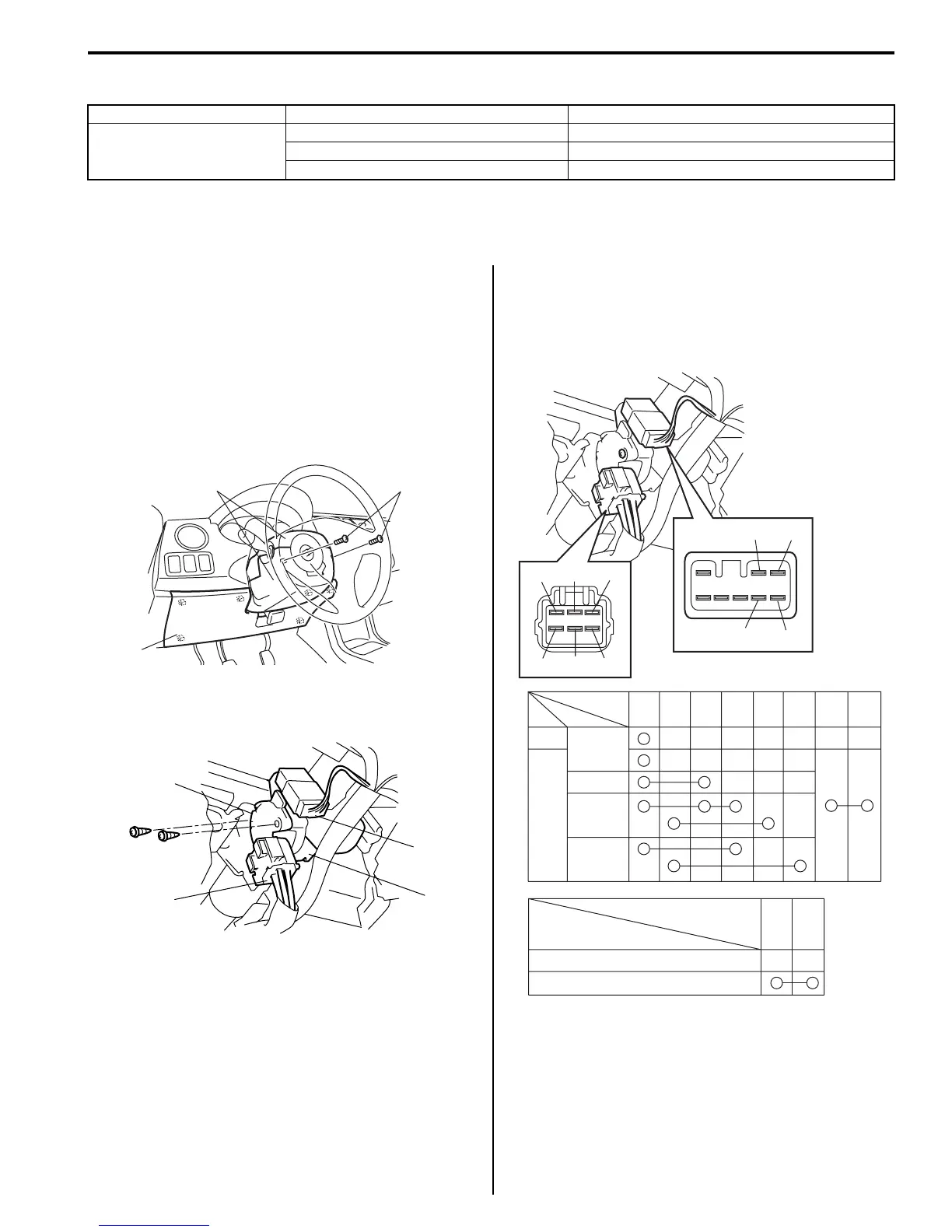

Ignition Switch Removal and Installation
S7RS0B9306001
Removal
1) Disconnect negative (–) cable at battery.
2) Confirm that ignition key is removed.
3) Remove steering column hole cover (1).
4) Turn steering wheel to remove steering column
cover screws (3) and then remove steering column
covers (2).
5) Disconnect couplers (1) from ignition switch (2).
6) Remove ignition switch (2) from key cylinder (3).
Installation
Reverse removal procedure.
Ignition Switch Inspection
S7RS0B9306002
• Check for continuity between terminals at each switch
position. If check result is not as specified, replace
switch.
Condition Possible cause Correction / Reference Item
No displaying of
navigation
Circuit fuse Blown Replace fuse and check for short circuit.
Wiring and/or grounding faulty Repair as necessary.
Navigation unit faulty Replace unit.
1
3
2
I4RS0B920004-02
1
1
2
3
I4RS0A930008-01
Position
Terminal
LOCK
ACC
ON
START
OUT
IN
K2K1STIG2IG1ACCB1 B2
Ignition knob switch
(with keyless start system only)
ACC
IG1
IG2
ST
B2
B1
K2
K1
P2
P1
Terminal
OFF (ignition knob switch released)
ON (ignition knob switch pushsed)
P1 P2
Key
I5RS0D930003-02
