Heater and Ventilation: 7A-7

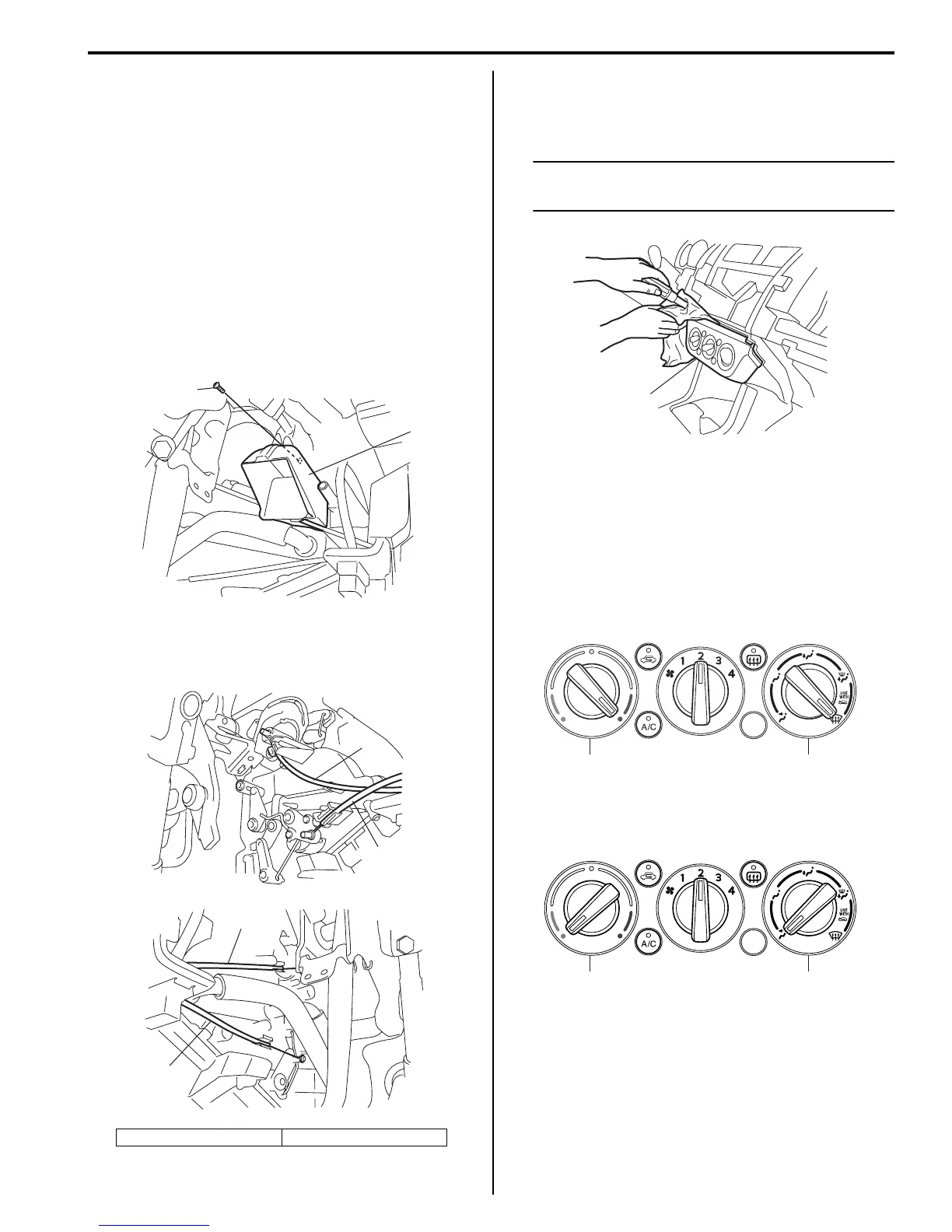

HVAC Control Unit Removal and Installation
S7RS0B7106009
Removal
1) Disconnect negative (–) cable at battery.
2) Disable air bag system referring to “Disabling Air
Bag System in Section 8B”.
3) Remove passenger air bag module from instrument
panel referring to “Passenger Air Bag (Inflator)
Module Removal and Installation in Section 8B”.
4) Remove radio assembly from instrument panel
referring to “Audio Unit Removal and Installation in
Section 9C”.
5) Remove driver side foot duct (1) from HVAC unit by
removing screw (2).
6) Disconnect temperature control cable (1) and air
flow control cable (2) from HVAC unit.
7) Remove two connectors from HVAC control unit.
8) Remove HVAC control unit (1) from instrument
panel.
NOTE
Be careful not to damage HVAC control unit
and instrument panel by using rag.
Installation
Reverse removal procedure noting the following
instructions.
• Connect temperature control cable and air flow control
cable of HVAC control unit to links of HVAC unit.
a. For LH steering vehicle, set air flow selector (1) to
“DEF” position and temperature selector (2) to
“MAX HOT” position.
For RH steering vehicle, set air flow selector (1) to
“VENT” position and temperature selector (2) to
“MAX COOL” position.
[A]: LH steering vehicle [B]: RH steering vehicle
2
1
I4RS0B710010-01
2
1
1
2
[B]
[A]
I4RS0B710011-01
1
I4RS0B710012-01
12
I4RS0B710013-01
12
I4RS0A710016-01
