Glass / Windows / Mirrors: 9E-10
Installation
Reverse removal procedure noting the following
instruction.
• Apply grease to sliding portions of window regulator.
: Grease 99000–25011 (SUZUKI Super Grease A)
• Tighten front door window regulator attaching screws.
Front door window regulator screw tightening
order
(a) → (b)
Front Door Window Regulator Inspection
S7RS0B9506005
Check the following parts for wear, damage, smooth
operation and lubrication:
• Check regulator sliding and rotating parts.
• Check rollers.

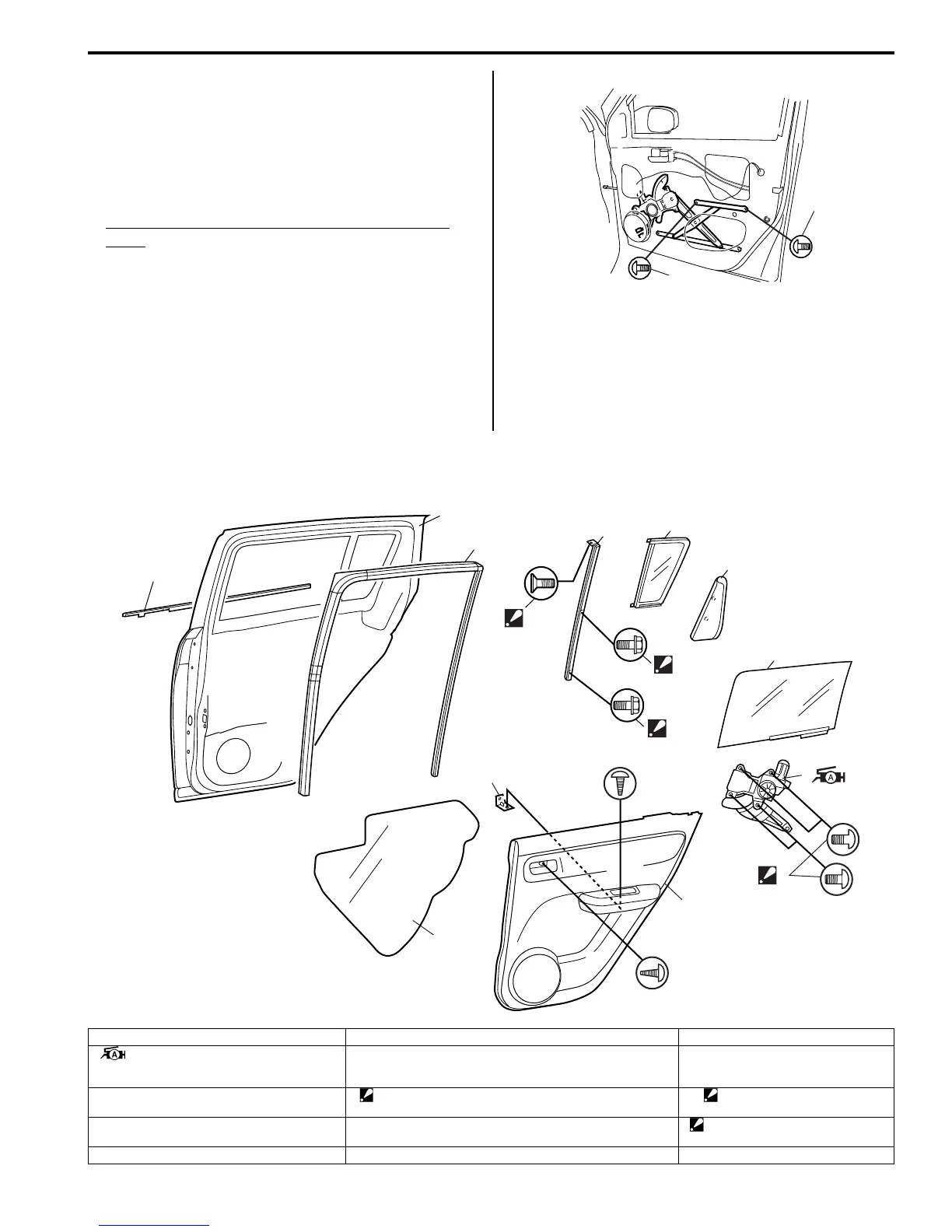

Rear Door Window Components
S7RS0B9506006
(a)
(b)
I4RS0A950014-01
9
7
3
6
10
11
b
c
12
5
2
8
4
a
1
I4RS0A950015-01
1. Door glass 6. Door sash 11. Rear door inner garnish
2. Window regulator assembly
: Apply lithium grease 99000-25011 to
sliding part.
7. Door panel 12. Door trim bracket
3. Glass run 8. Rear door window regulator mounting screw
: Tighten lower screw first, and then tighten upper screw.
a: Sash upper mounting screw
: Tightening order: a → b → c
4. Door trim 9. Rear door outer weather-strip b, c: Sash lower mounting bolt
: Tightening order: a → b → c
5. Door sealing cover 10. Rear door partition glass.
