4D-1 Parking Brake:
Brakes
Parking Brake
General Description

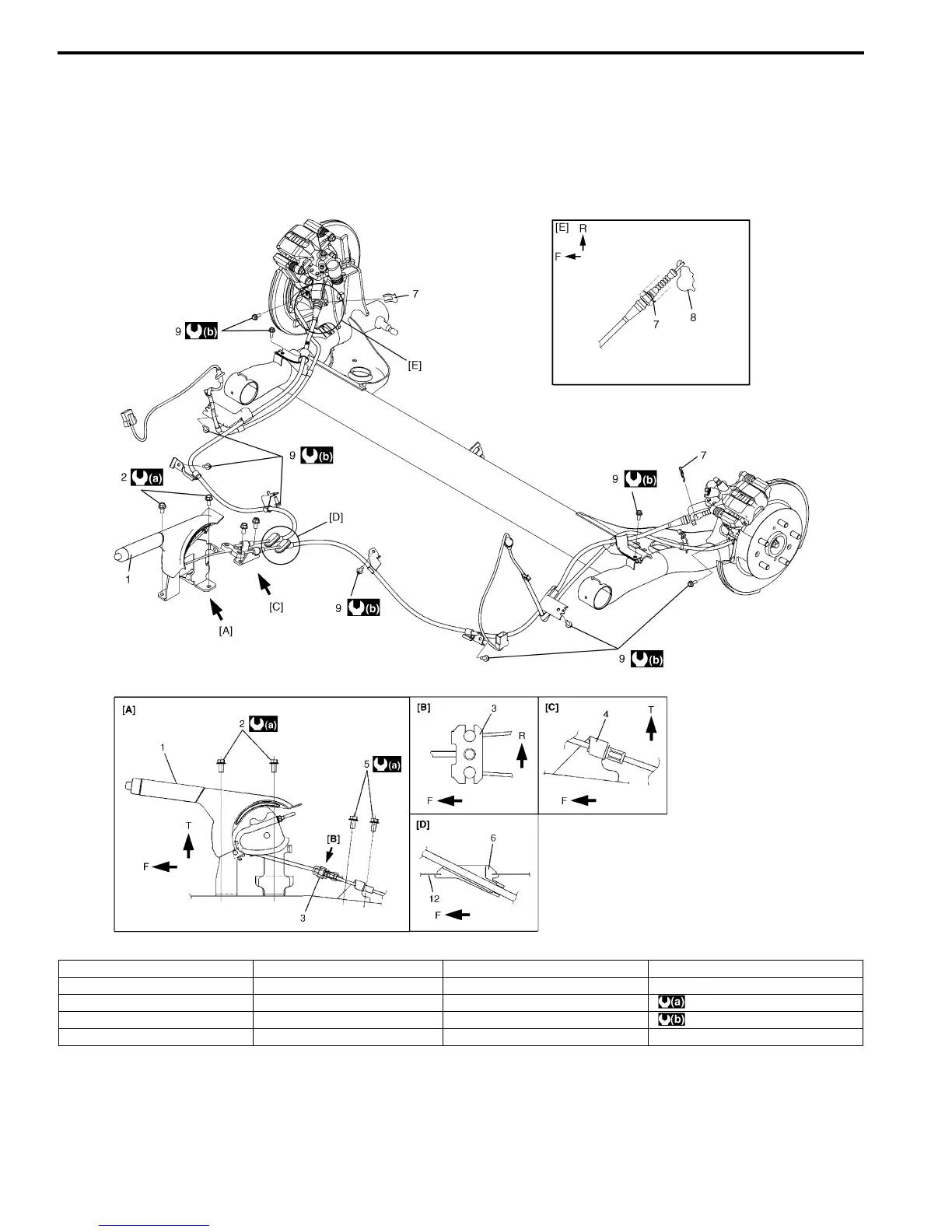

Parking Brake Cable Construction
S7RS0B4401001
I6RS0B440001-01
T: Top side 3. Equalizer 8. Lever [C]: View [C]
F: Front side 4. Parking cable bracket 9. Parking cable clamp bolt [D]: View [D]
R: Right side 5. Parking cable bracket bolt 10. Vehicle body : 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
1. Parking brake lever assembly 6. Grommet [A]: View [A] : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
2. Parking brake lever bolt 7. E-ring [B]: View [B]
