Automatic Transmission/Transaxle: 5A-135
Reassembly
Reverse disassembly procedure for assembly, noting the
following points.
• Use new O-rings. Apply A/T fluid to the O-rings,
before installation.
• Install 2nd brake piston (1) to which A/T fluid is
applied to 2nd brake cylinder (2).
Do not damage O-ring when installing 2nd brake
piston.

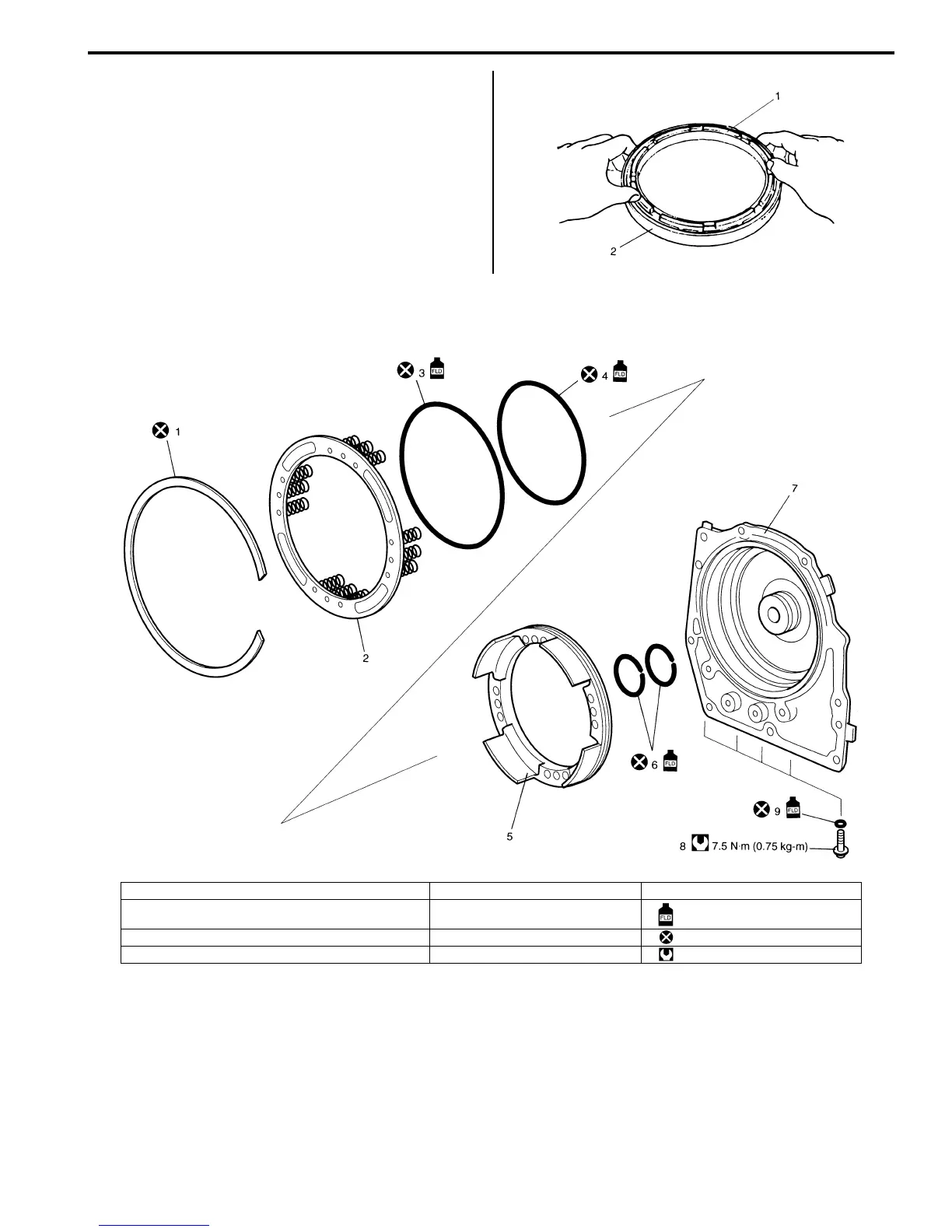

Transaxle Rear Cover (O/D and 2nd Coast Brake Piston) Assembly Components
S7RS0B5106047
I2RH0B510199-01
I2RH0B510200-01
1. Snap ring 5. O/D and 2nd coast brake piston 9. Rear cover plug O-ring
2. O/D and 2nd coast brake return spring subassembly 6. Rear cover seal ring : Apply automatic transaxle fluid.
3. O/D and 2nd coast brake piston front O-ring 7. Transaxle rear cover : Do not reuse.
4. O/D and 2nd coast brake piston rear O-ring 8. Rear cover plug : Tightening torque
