Suzuki Swift Sport 2004 User Manual

Security and Locks: 9F-11

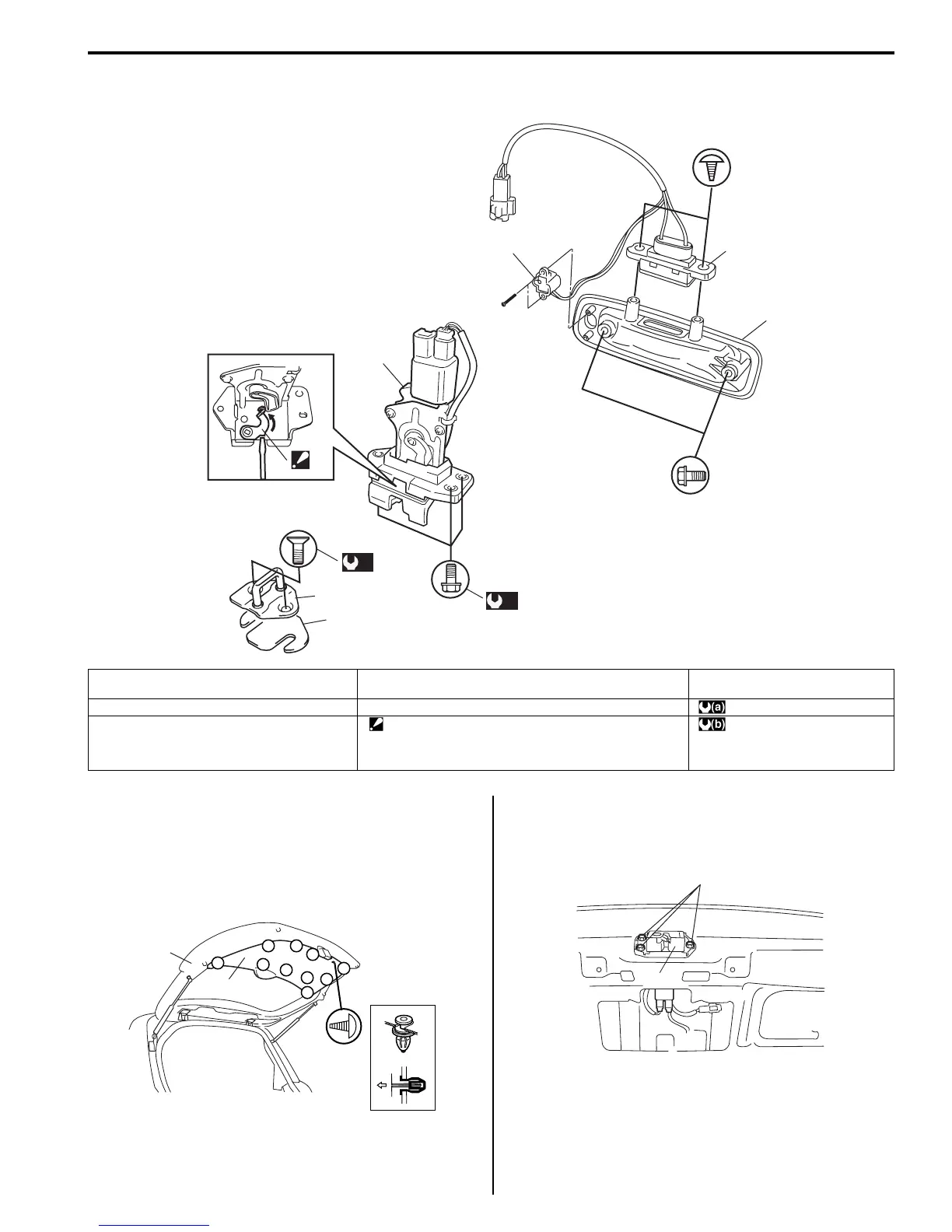

Rear End Door Lock Assembly Components
S7RS0B9606010
Rear End Door Lock Assembly Removal and
Installation
S7RS0B9606011
Removal
1) Remove door trim (1) from rear end door panel (2).
2) Disconnect door lock motor lead wire.
3) Loosen door latch bolts (1) and remove door latch
assembly (2).
1
7
3
4
5
2
(a)
(b)
6
I4RS0B960009-01
1. Rear end door latch assembly
(rear end door switch is built in this assembly)
4. Shim 7. Rear end door request switch
(if equipped)
2. Rear end door opener switch 5. Door handle : 10 N⋅m (1.0 kgf-m, 7.5 lb-ft)
3. Latch striker 6. Emergency lever
: Rear end door is unlocked by pushing emergency lever
with flat head driver if rear end door lock can not be
released by door opener switch.
:23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
“A”
“B”
“B”
“A”
“B”
“A”
“A”
“A”
“A” “A”
“A”
“A”
2
1
I4RS0A960016-01
1
2
I4RS0A960017-01
